DESCRIPTION
It’s a 1:1 current balun that works on 3-54 Mhz with power rating 2000 watts(PEP).
With its waterproof enclosure and gaskets design it can be perfectly used in outdoor(constant) operation.
If you are looking for 1/4 balun, we also have CHELEGANCE KB2 1/4 HF CURRENT BALUN, 1000 WATTS PEP
SPECIFICATION
| Frequency | 3–54 MHz |

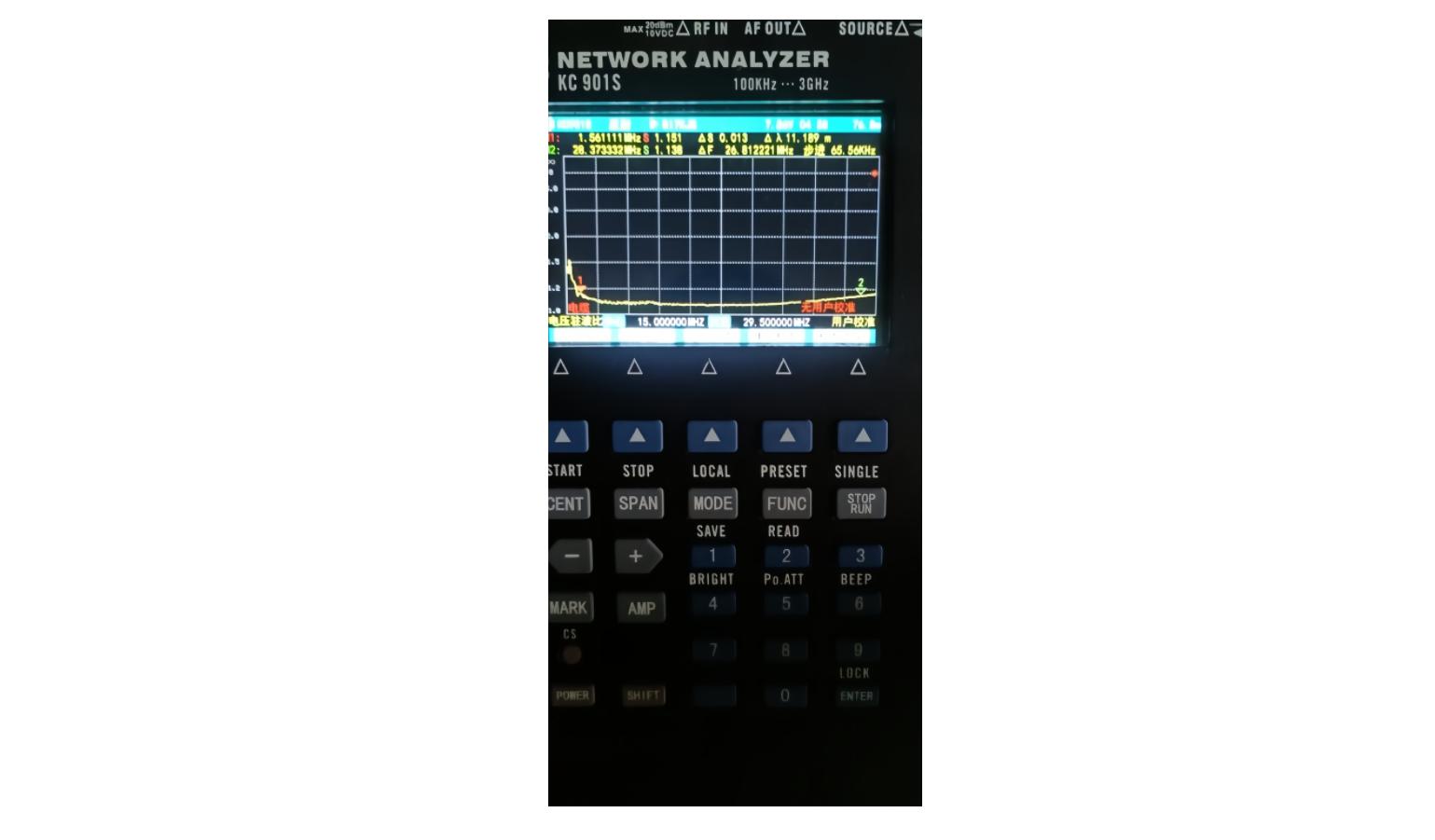

| SWR | ≤1.2 |
| Impedance | 50 Ω |
| Power | 2000 Watts PEP (1000 Watts on CW, PSK, FT8, etc.) |

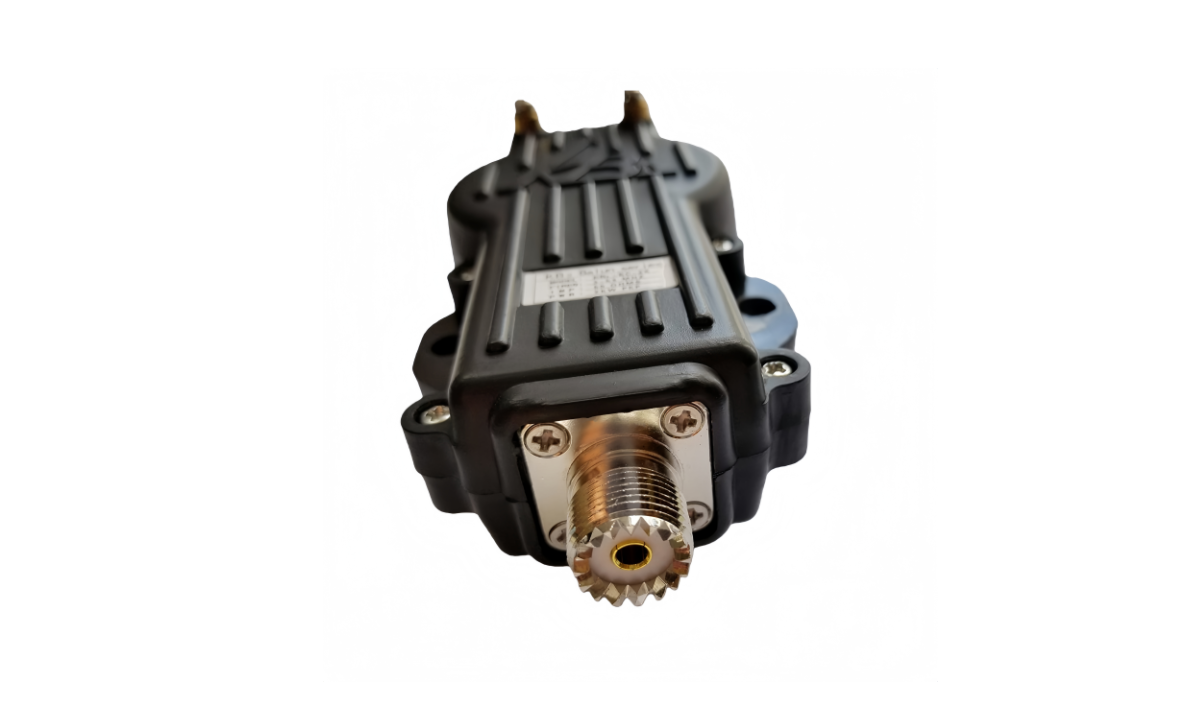

| Connector | SO-239 |
| Dimension | 150 × 70 × 50 mm |
| Weight | 0.290 kg |

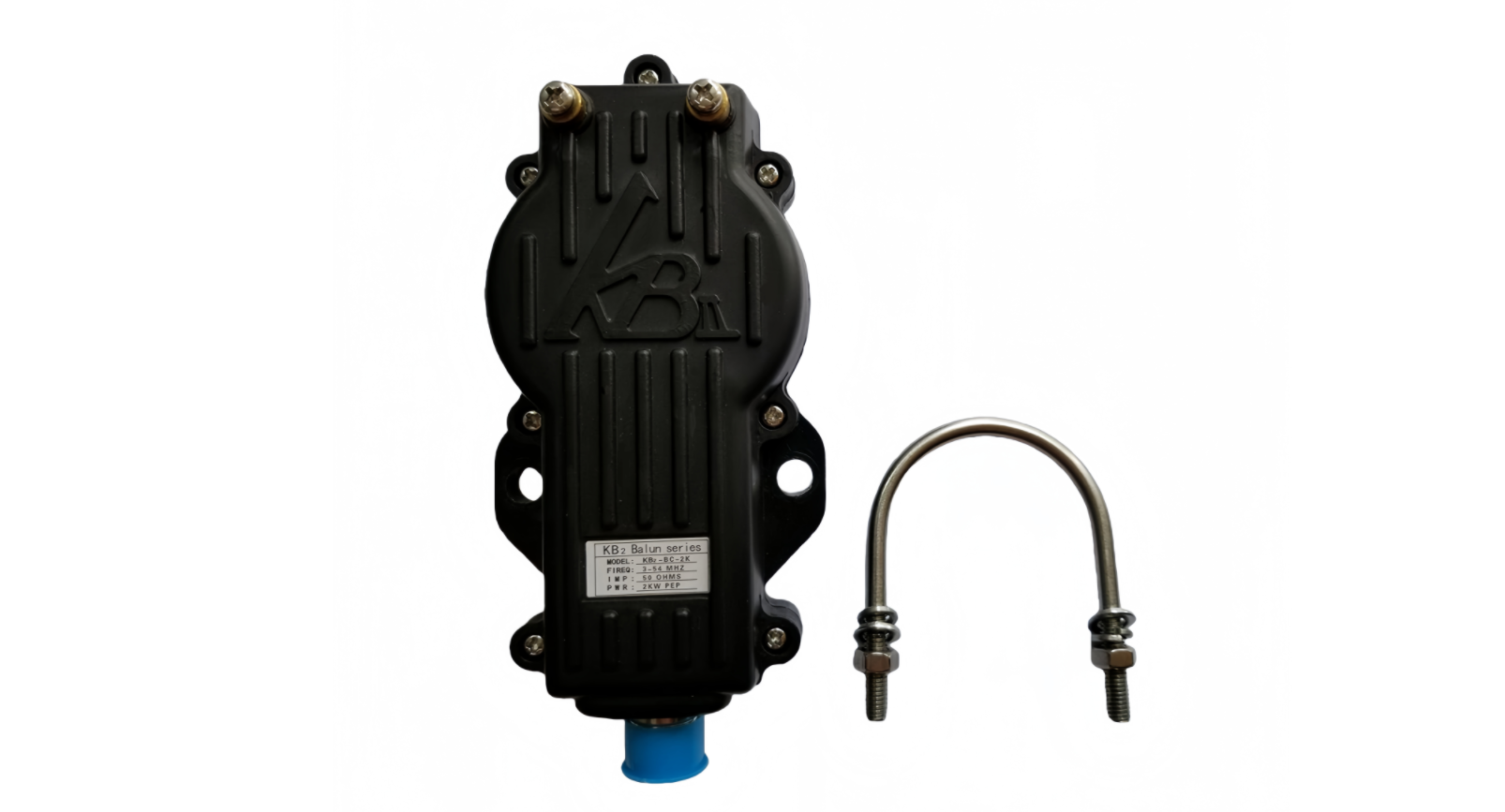

PARTLIST
- 1:1 BALUN X 1
- U CLAMP X1
APPLICATION
- CENTER FED DIPOLE
OPTIONAL ACCESSORIES
OUR OFFICIAL DISTRIBUTORS
NOTE: If you can’t find any distributors in your region, please contact us and we will help you out.
