The TP16 ANTENNA MAST is perfect for mounting MC-599 and JPC-7 antennas, as well as other portable operation antennas for activities like POTA, and SOTA.
It can extend up to 4.8 meters/15.75 feet and hold maximum weight is 8.9 kg/19 lbs. When collapsed, the TP16 is just 142 cm/4.66 ft, making it highly portable. The legs spread at the maximum distance, the TP16 base covers 787 square inches for a more stable support. This makes it a great choice for field work, outdoor events, and other situations where you need a sturdy support for your antenna.
Compared to our last similar product, this TP16 is more solid, can be raised higher with less signal interference, but will be slightly heavier than the previous 3.85m tripod by about 1kg.
In a word, TP16 ANTENNA POLE is designed to be flexible enough to meet the various needs of amateur radio enthusiasts whether they are outdoors or observing equipment and more. Whether you need stable communication support or are looking for a superior observing experience, this mount offers a reliable solution.
SPECIFICATION
|
Product size
|
14*11.5*117cm / 5.5* 4.5*46 inches package size
|
|
Height Range
|
142– 480cm/4.66-15.75ft
|
|
Leg Spread
|
787 squre inches
|
|
Weight Capacity
|
8.9kg/19 lbs
|
|
Product weight
|
4.1kg/9lbs
|
|
Number of Sections
|
5 sections
|
|
Material
|
Aluminum
|
|

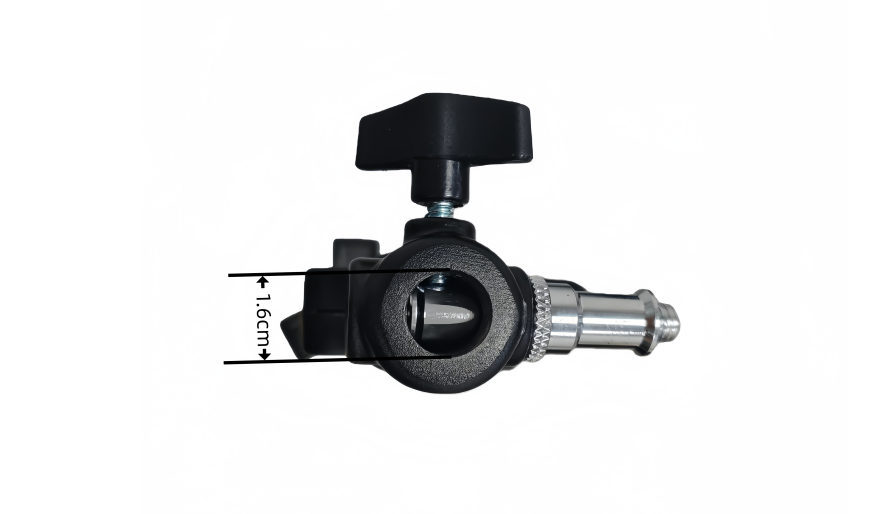

Attachment Size
|
5/8″ Stud with 1/4″-20 Threaded Top
|
PARTLIST
-
1×TRIPOD
If you need guy line ropes to protect the tripod from falling while using, check here
