DESCRIPTION
KC4 is a 4-band, 1000-watt resonant vertical antenna for base station use.
KC4 is designed for seamless multi-band operation. It uses top loading to achieve higher efficiency from a short self supporting vertical radiator. Once set up, you can effortlessly switch between these bands without the need for any adjustments.
KC4 does not require ground radials.
SPECIFICATION
| ANTENNA HEIGHT | 7.8 METER |
| ANTENNA WEIGHT | 6.8KG |
| PACKAGE DIMENSIONS | 0.46*0.46*3.9FT |
| FREQUENCY RANGE | 7/14/21/28MHZ (40M/20M/15M/10M) |
| POWER | 1000 WATT PEP (CW500W, RTTY300W) |
| ANTENNA IMPEDANCE | 50 Ω |
| VSWR | ＜1.5:1 |
|
BANDWIDTH |
40m: 150kHz 20m: 450kHz 15m: 800kHz 10m: 1000kHz |
| RATED WIND SPEED | 35 m/s |
| ANTENNA FEEDLINE CONNECTION TYPE | UHF FEMALE, SO-239 |
| HF VERTICAL ANTENNA MOUNTING POSITION | ELEVATED |
| MOUNTING CLAMPS INCLUDED | YES |

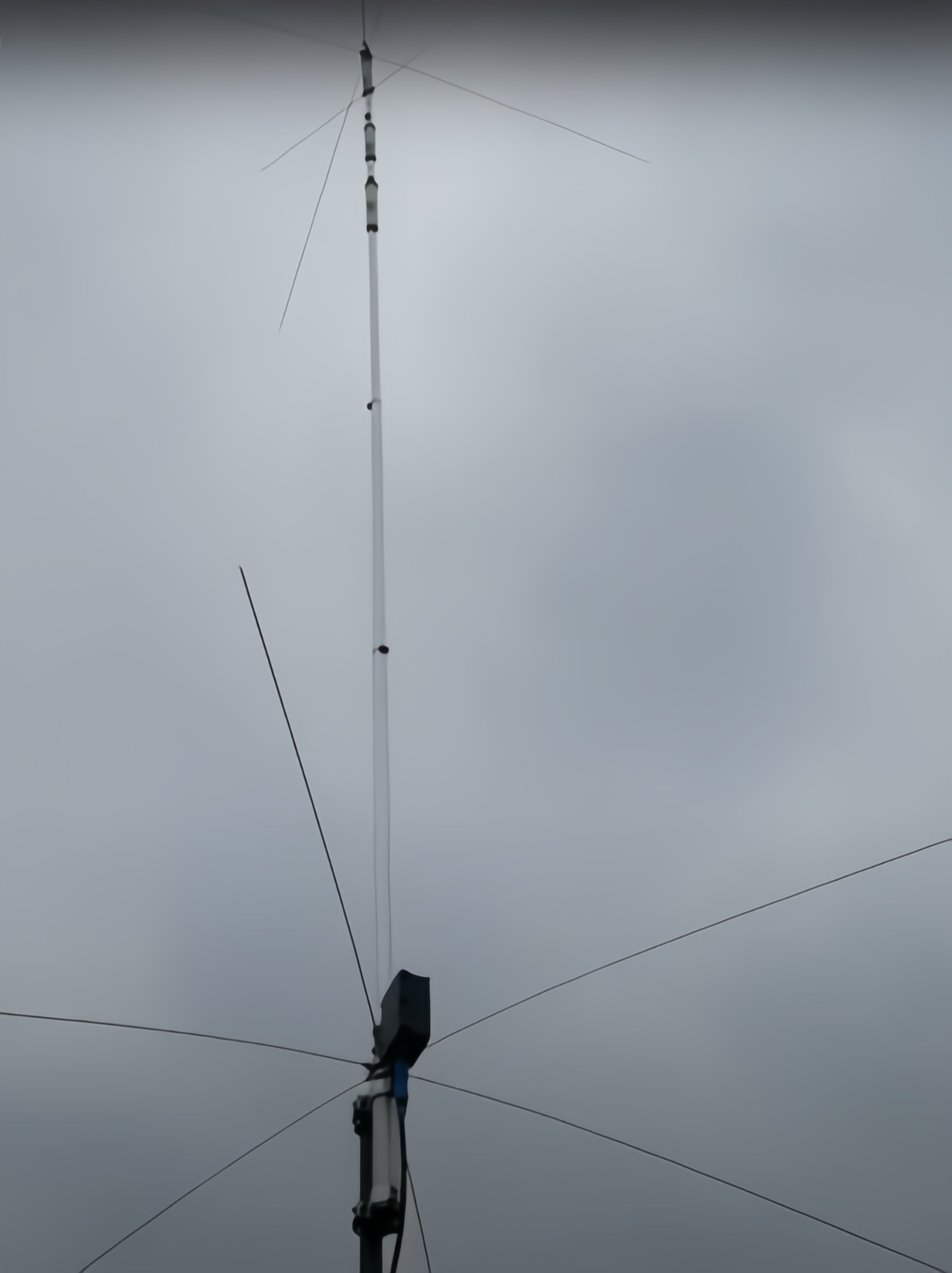

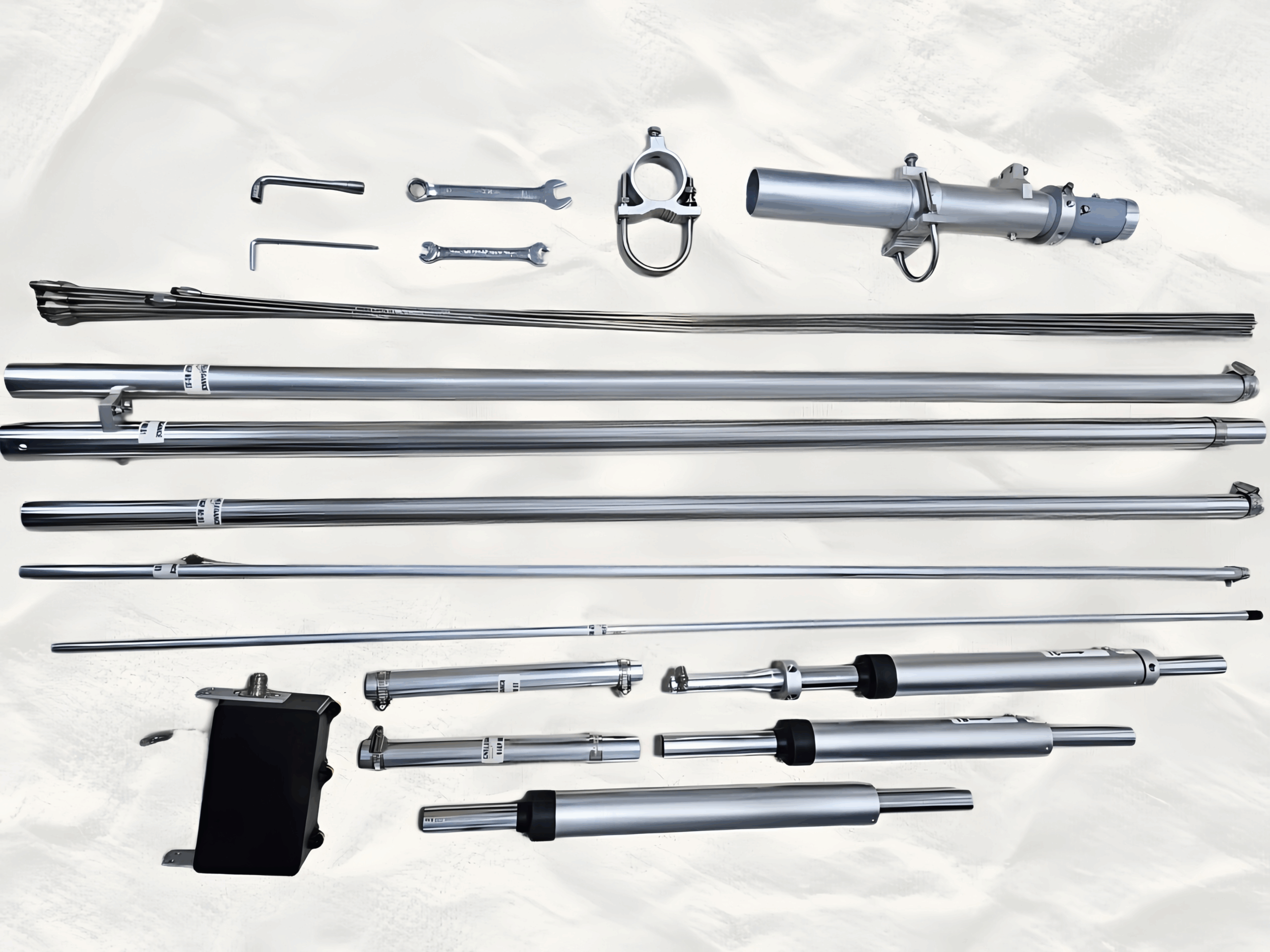

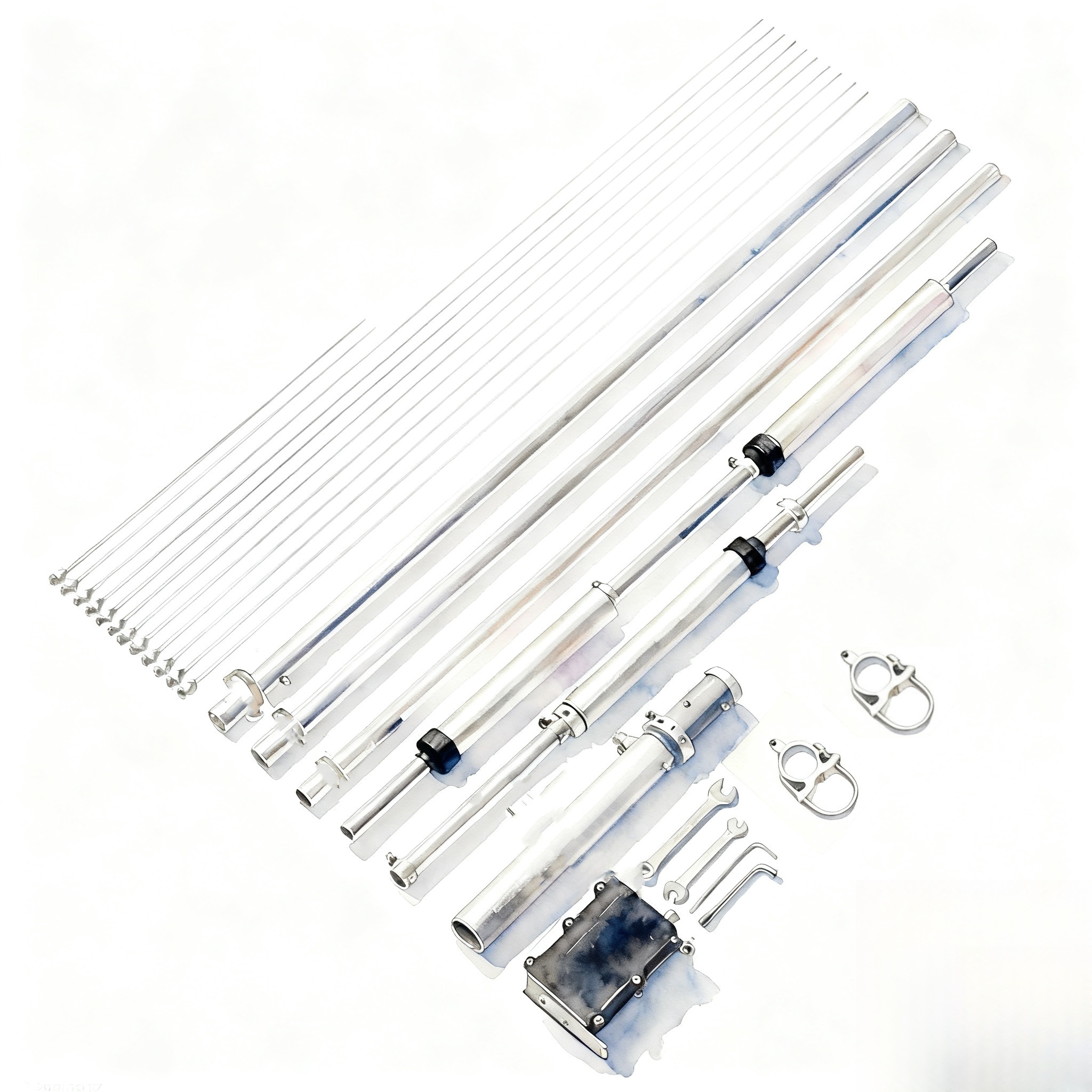

PARTLIST
- 1 x Main support (1.3*0.15*0.01ft)
- 10x Radials (2 Sizes: Long：9ft \ Short: 1.6ft)
- 1 x Antenna body NO:1 (Long: 3.9ft)
- 1 x Antenna body NO:2 (Long: 3.9ft)
- 1 x Antenna body NO:3 (Long: 3.9ft)
- 1 x Antenna body NO:4 (Long: 1.1ft)
- 1 x Antenna body NO:5 (Long: 3.5ft)
- 1 x Antenna body NO:6 (Long: 0.9ft)
- 1 x Antenna body NO:7 (Long: 2.4ft)
- 1 x Antenna body NO:8 (Long: 1ft)
- 1 x Antenna body NO:9 (Long: 3.9ft)
- 1 x Antenna body NO:10 (Long: 3.9ft)
- 1 x Matching box
- 2 x U clamps
- 1 x Tools bag
