DESCRIPTION
GA-505 boasts a wide frequency range, covering 76-108 MHz (FM) and 118-137 MHz (AIR), catering to your needs for both FM radio and aviation frequency reception.
The GA-505 is a half-wave dipole design for efficient performance and easy installation.
GA-505 is equipped with external antenna connectors that support multiple connector types, providing you with greater flexibility and compatibility to connect with various devices.
This antenna is a long-distance FM band receiving antenna specially designed for radio (FMDX) enthusiasts by DSB. When using it, it is recommended to install it in an open outdoor location with obvious effects.

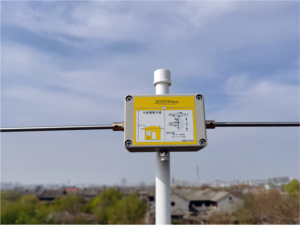

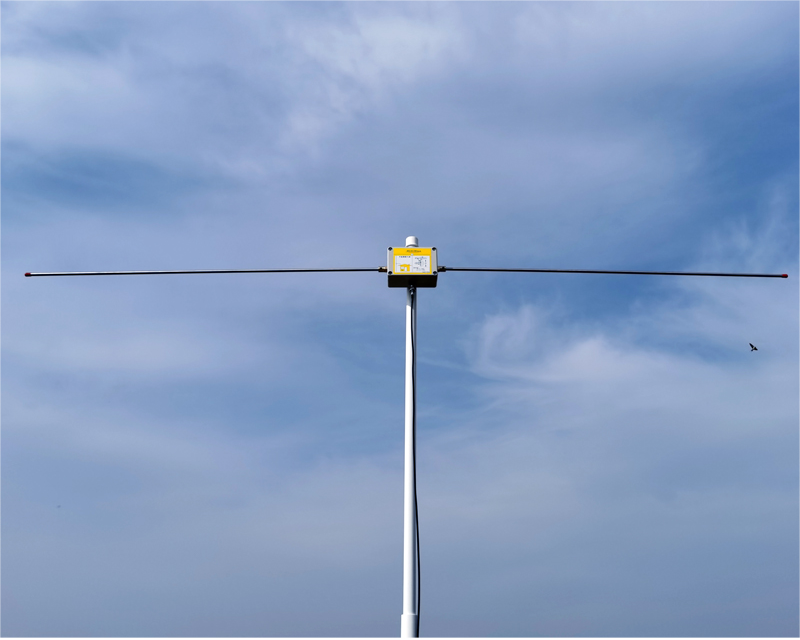

Installation method: outdoor (recommended) vertical or horizontal; Indoor (balcony, window edge near outdoor location)
SPECIFICATION
|
Product outer box size
|
75 * 13 * 13cm
|
|
Product weight
|
1.075kg
|
|
Frequency coverage
|
FM:76-108MHz
AIR: 118-137MHz
|
|
Connector type
|
BNC
|

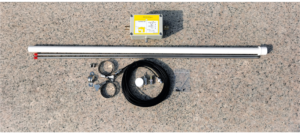

PARTLIST
-
1×Antenna body
-
1×10m feeder BNC to BNC
-
1×BNC to 3.5connector
-
1×BNC to SMA connector
-
1×Receive box
-
2×Set the crews
-
1×Allen screwdriver
-
2×Stainless steel vibrator

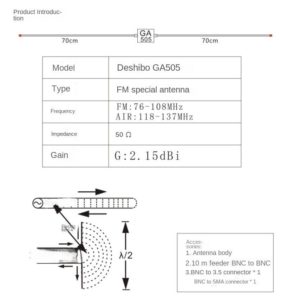

Product Introduction
Fitting Instruction
