This is a super grounding plate disc designed for the MC – 750 antenna(NOTE: It is not compatible with the yellow radial of the MC – 750 antenna itself.). It is lighter in weight and easy to carry, and can provide better reception and transmission results.
Pre-Use Preparation
Before using the Grounding Plate Disc, you need to make a radial wire yourself to ensure stable antenna performance.
-
Wire Specification: 0.75-square RV wire
-
About RV Wire: RV wire is a flexible single-core copper conductor with excellent conductivity and solderability, ideal for antenna grounding applications.
-
-

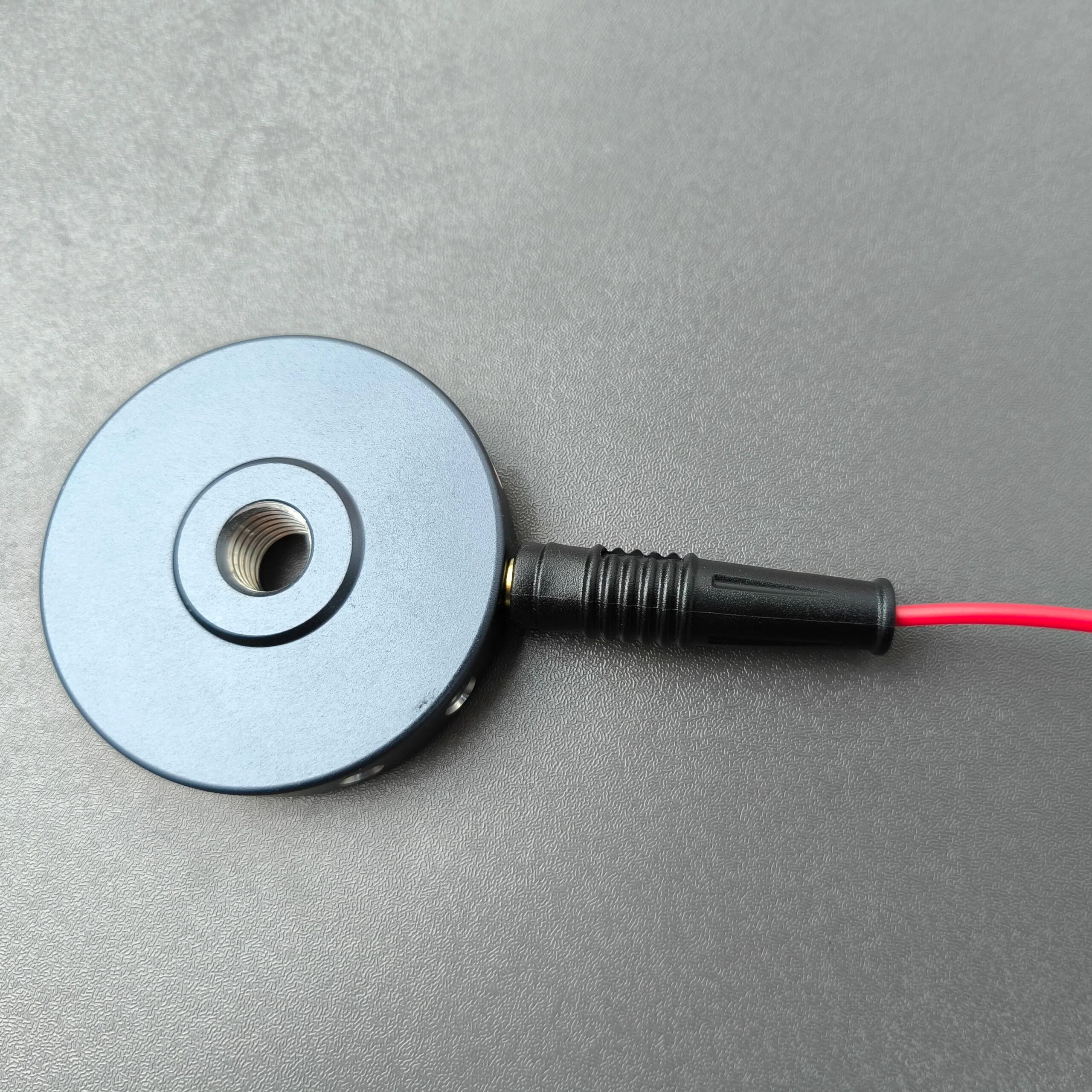

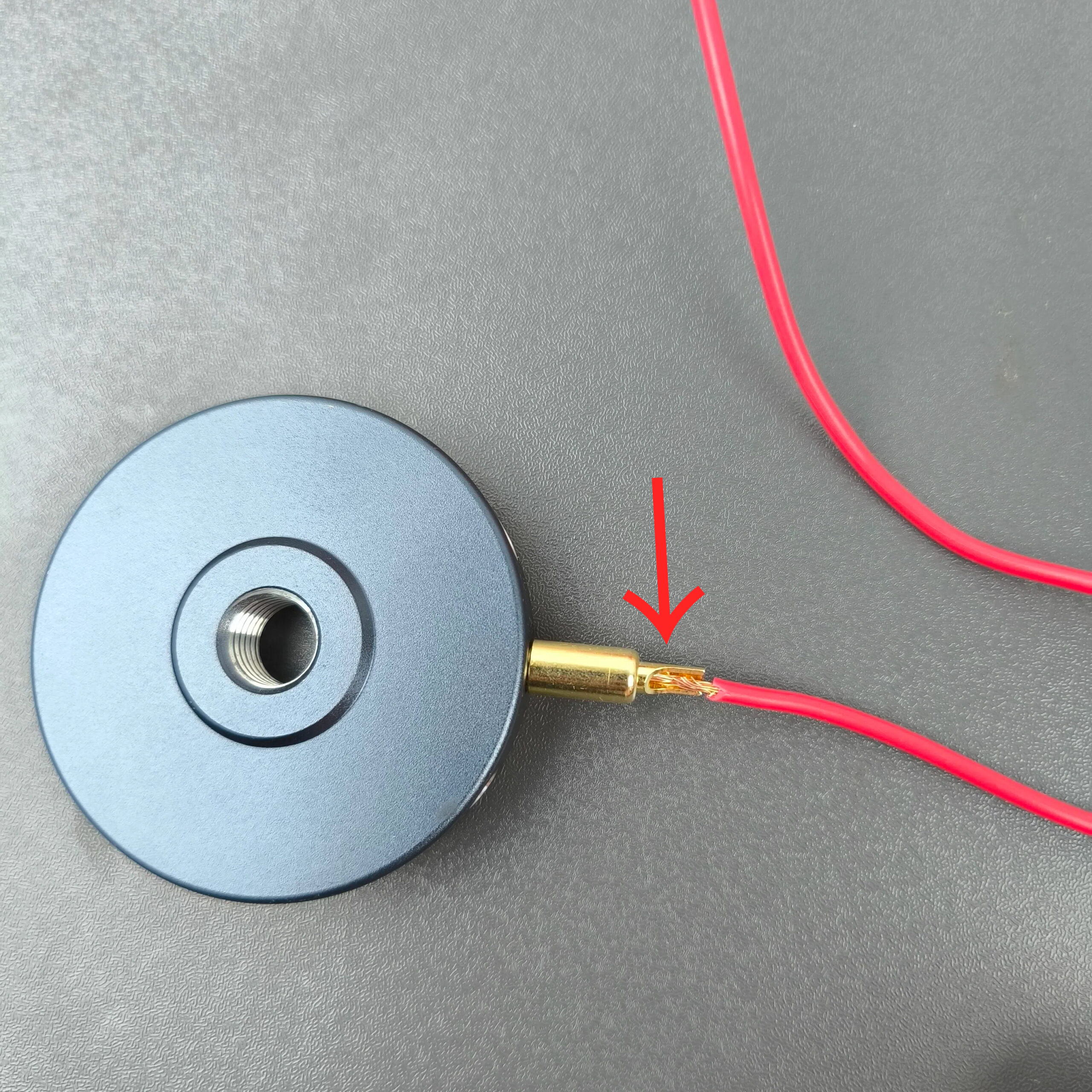

Installation Method: It is necessary to weld the 0.75-square RV wire to the golden metal needles.
-
Note: The yellow radial of the MC-750 antenna is not compatible with the ground disc
Compatible Antennas
-
Works with MC-750 antenna
-
Also compatible with other GP antennas, such as JPC-12
-
Note: Must be used together with a SPIKE.
Installation Instructions
-
When used with the MC-750 antenna:
-

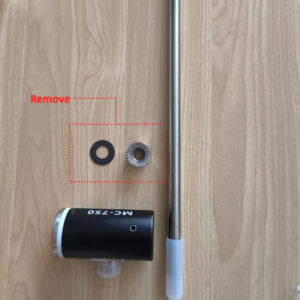

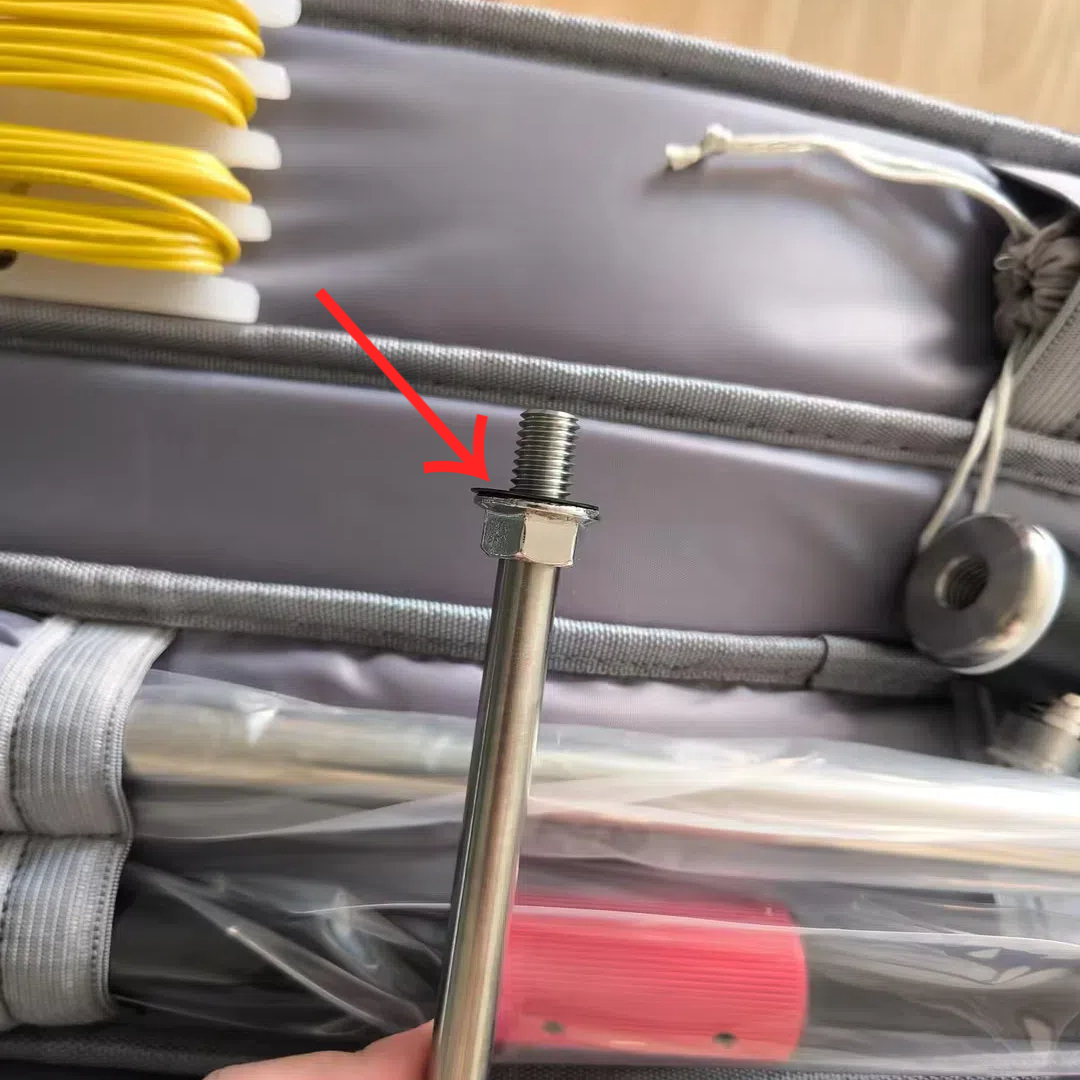

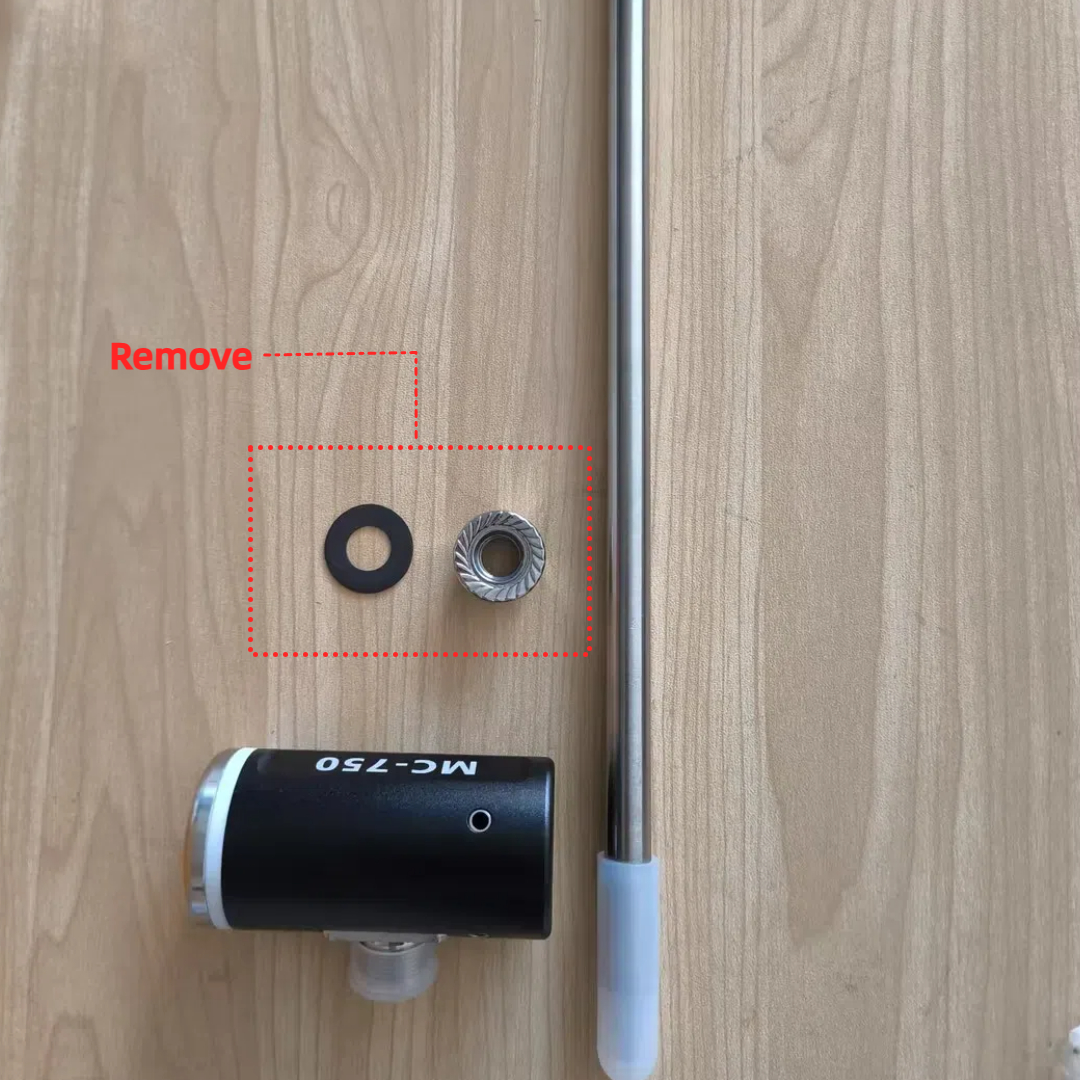

Remove the screws and gaskets on the SPIKE
-

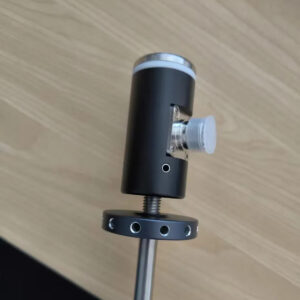

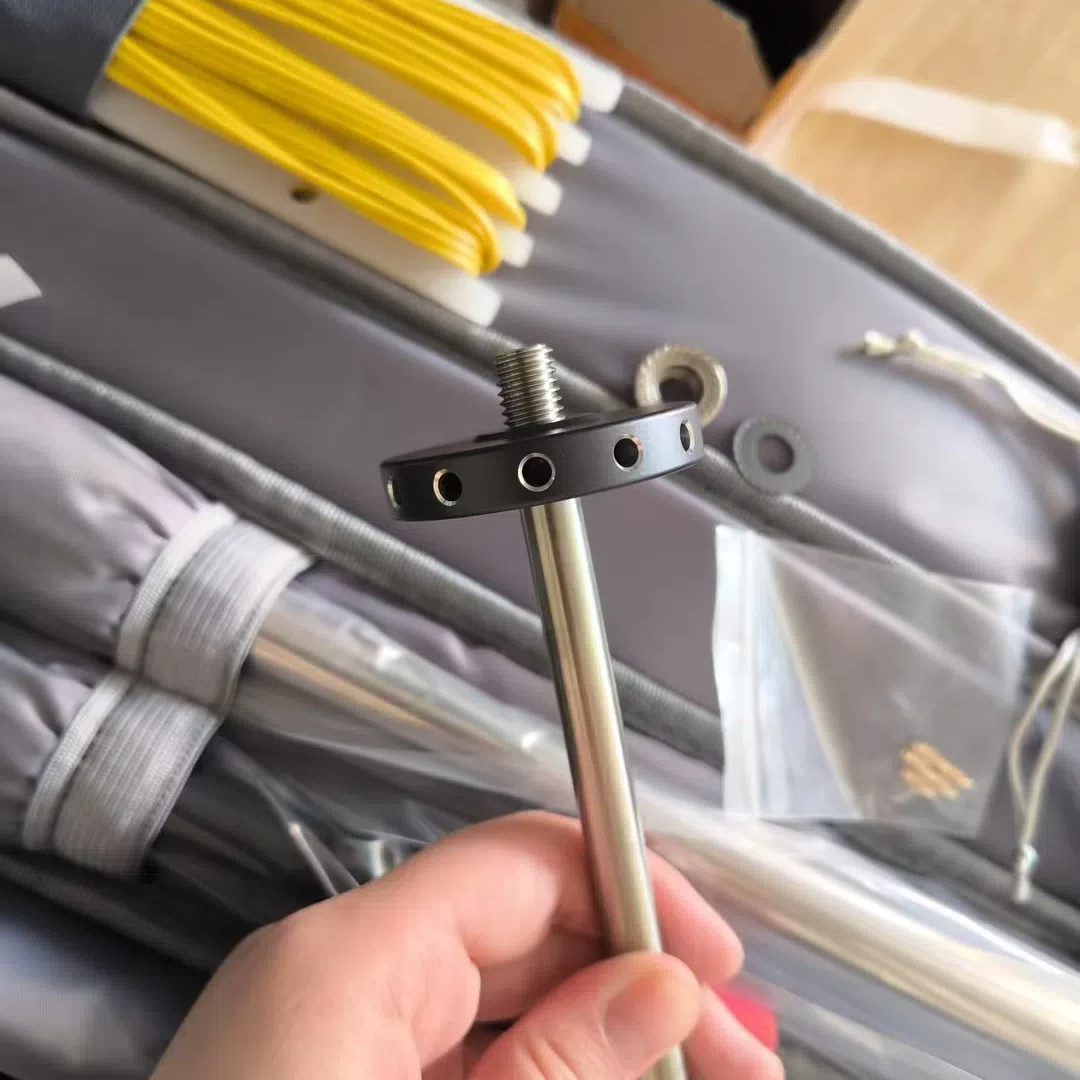

Install the Grounding Plate Disc to ensure a stable setup
-
→
→
The Grounding Plate Disc ensures stable grounding, delivering stronger reception and transmission wherever you use it.
SPECIFICATION
| GROUND DISC DIAMETER | 50MM/1.97INCH |
| GROUND DISC THINCKNESS | 11MM/0.43INCH(include the protruding parts) |
| THE QUANTITY GOLDEN METAL NEEDLES | 12 |
| THE APERTURE OF GOLDEN METAL NEEDLES | 4MM/0.16INCH |
| GROUND DISC WEIGHT | 40G/0.09LB |

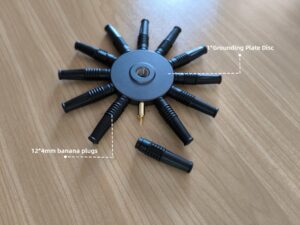

PARTLIST
1* Grounding Plate Disc
12* 4mm Banana plugs
