Description
The JNCRADIO JLOAD-10 RF Dummy Load is a 10W, 50-ohm air-cooled termination designed for safe and accurate testing, tuning, and terminating of RF transmitters across HF, VHF, UHF, and microwave bands. With a low VSWR (≤1.2), it delivers reliable long-term performance in both lab and field environments.
The JLOAD-10 is available in two versions to suit different applications:
-

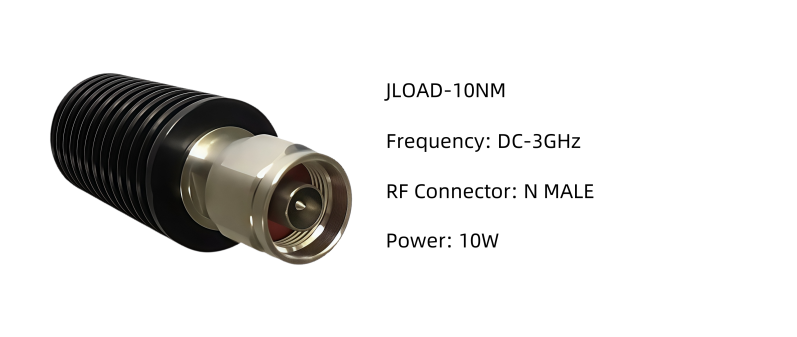

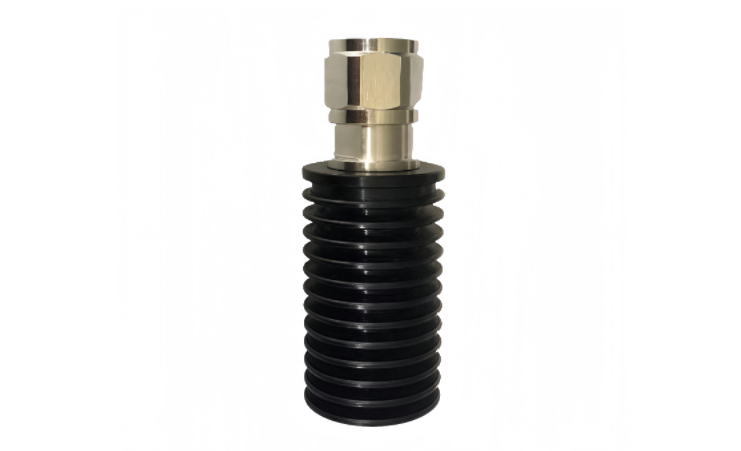

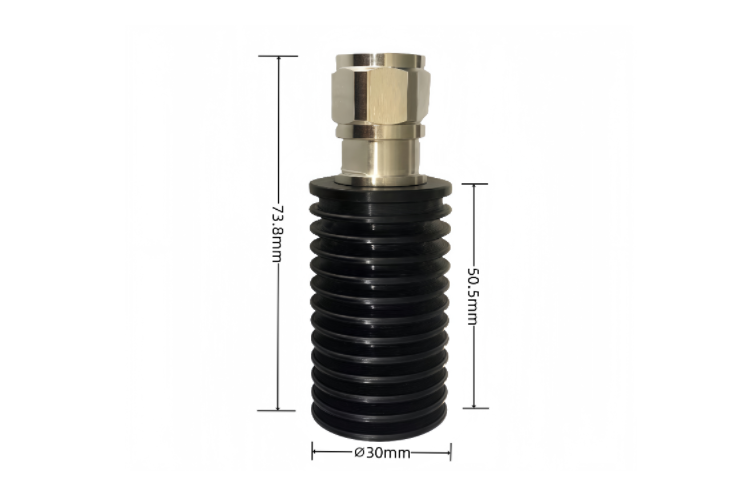

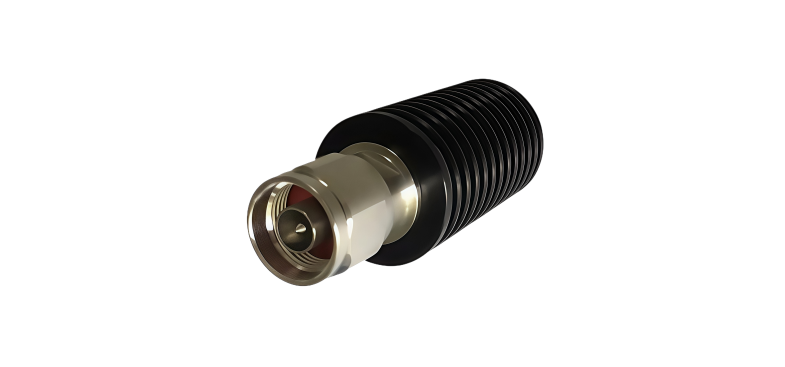

JLOAD-10NM — features an N Male connector, supporting DC–3 GHz.

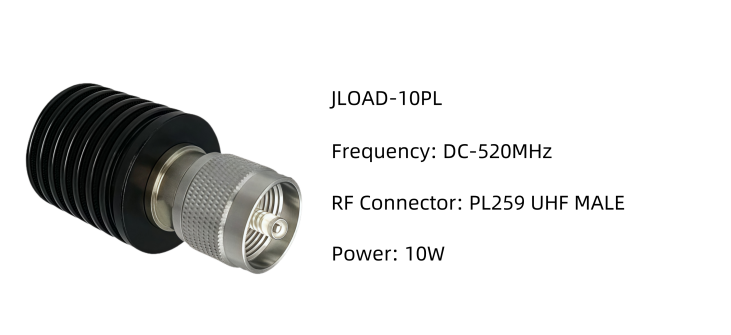

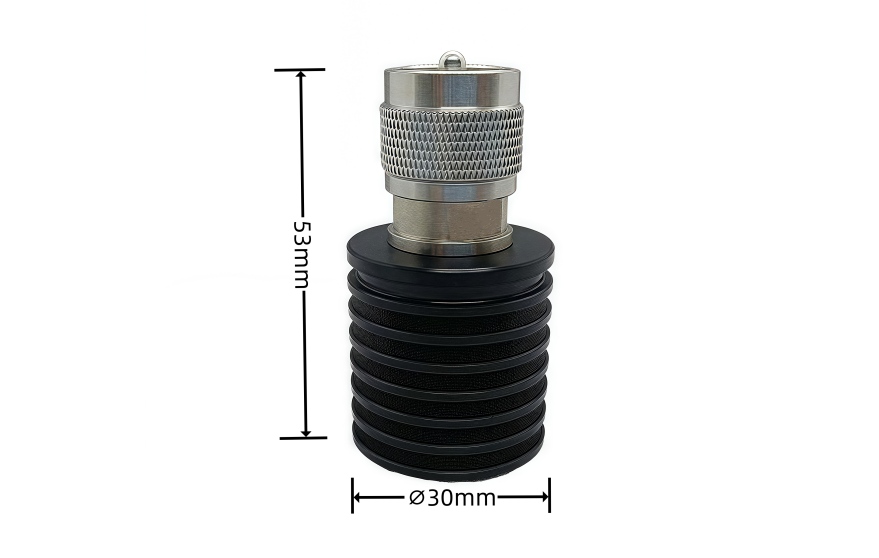

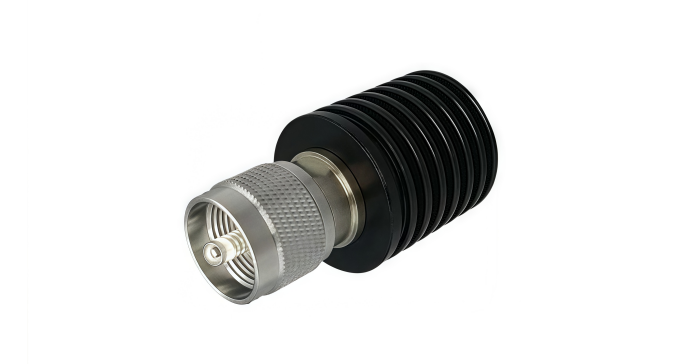

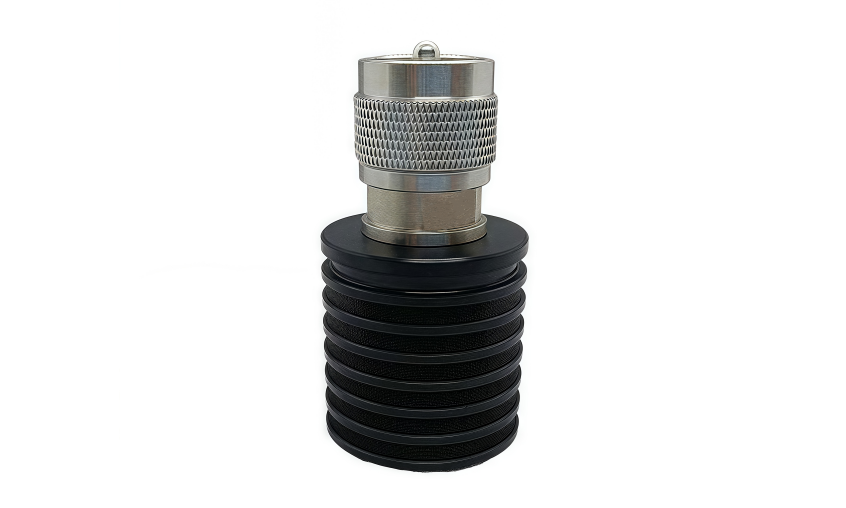

- JLOAD-10PL — features a PL-259 (UHF Male) connector, supporting DC–520 MHz.
Both models handle up to 10W continuous power, offering stable performance, broad frequency coverage, and secure termination for a variety of RF systems.
This dummy load is an essential tool for amateur radio operators looking for safe and efficient transmitter testing.
Specification
|
Model
|
JLOAD-10NM
|
JLOAD-10PL
|
|
Power Rating
|
10 Watts (Continuous)
|
10 Watts (Continuous)
|
|
Frequency Range
|
DC-3GHz
|
DC to 520 MHz
|
|
Impedance
|
50 Ohms
|
50 Ohms
|
|
VSWR
|
≤ 1.2
|
≤ 1.2
|
|
Connector Type
|
N MALE
|
PL259 UHF Male
|
|
Cooling Method
|
Passive Air-Cooled
|
Passive Air-Cooled
|
|
Outer Material
|
Nickel-plated copper shell
|
Nickel-plated copper shell
|
|
Inner Conductor
|
Silver-plated copper pin
|
Silver-plated copper pin
|
|
Operating Temperature
|
-35 ~ +125℃
|
-55 ~ +125℃
|
Part List
1 x JLOAD-10 DUMMY LOAD
