JLOAD-100 RF DUMMY LOAD 100W, DC–3GHz (N MALE) / DC–520MHz (PL-259 UHF MALE), 50OHM AIR-COOLED TERMINATION

53.00$

  • 100W POWER RATING;
  • DC–520 MHz / DC-3GHZ；
  • PL259 UHF Male / N MALE;
  • Built-in Air-Cooled Design
SKU: N/A Categories: ,

Description

The JNCRADIO JLOAD-100 RF Dummy Load is a 100W, 50-ohm air-cooled termination designed for safe and accurate testing, tuning, and terminating of RF transmitters across HF, VHF, UHF, and microwave bands. With a low VSWR (≤1.2), it delivers reliable long-term performance in both lab and field environments.

The JLOAD-100 is available in two versions to suit different applications:

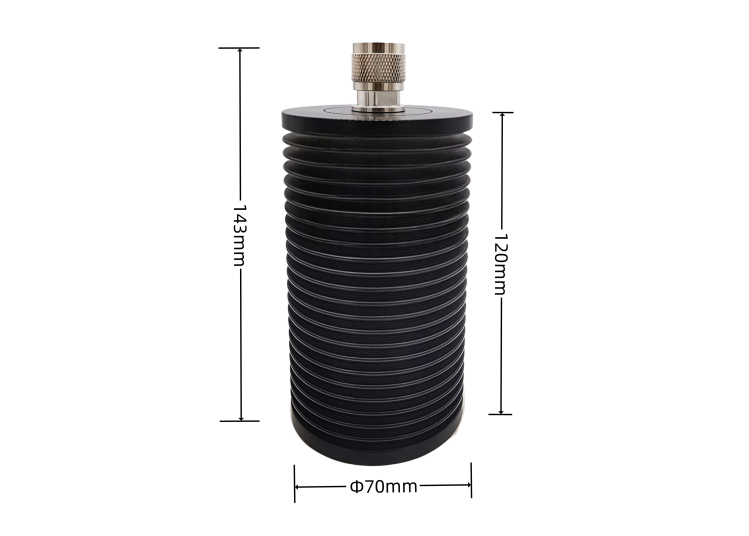

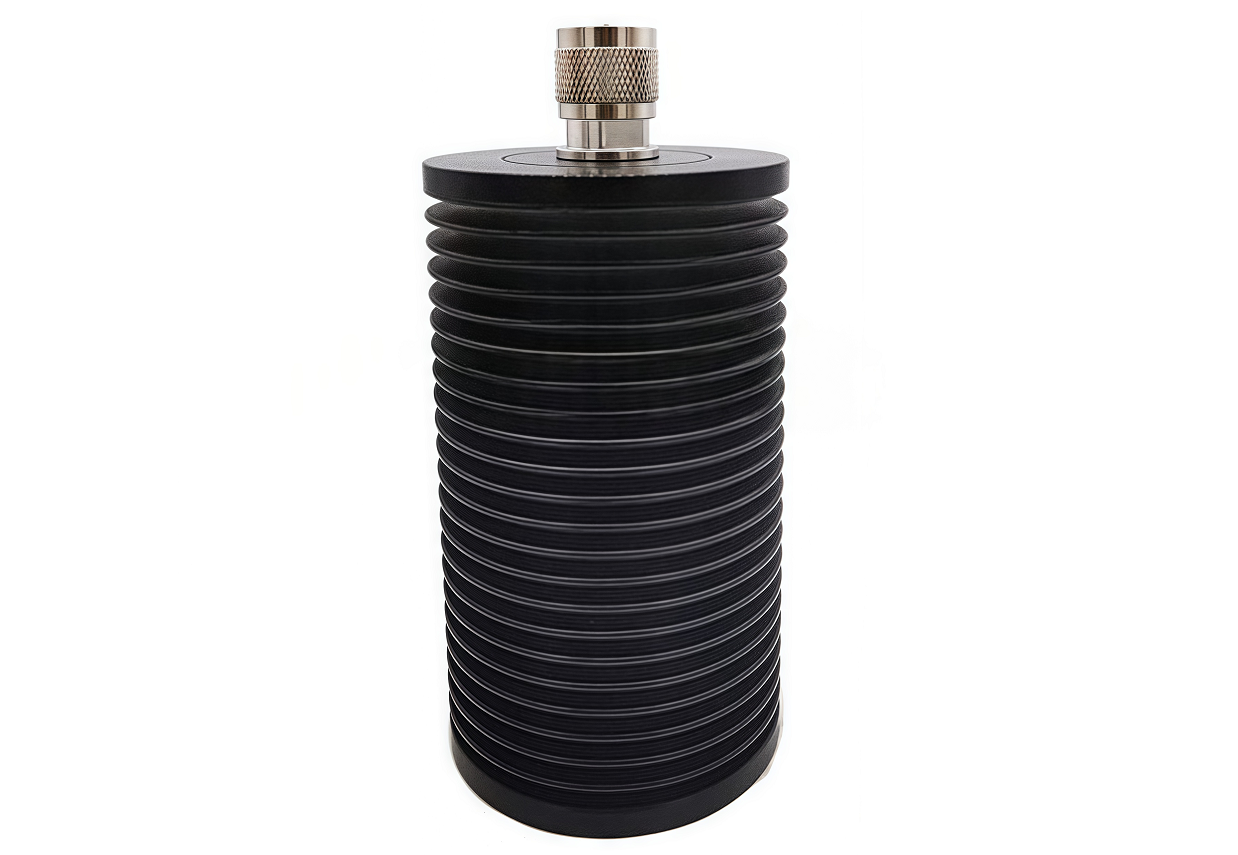

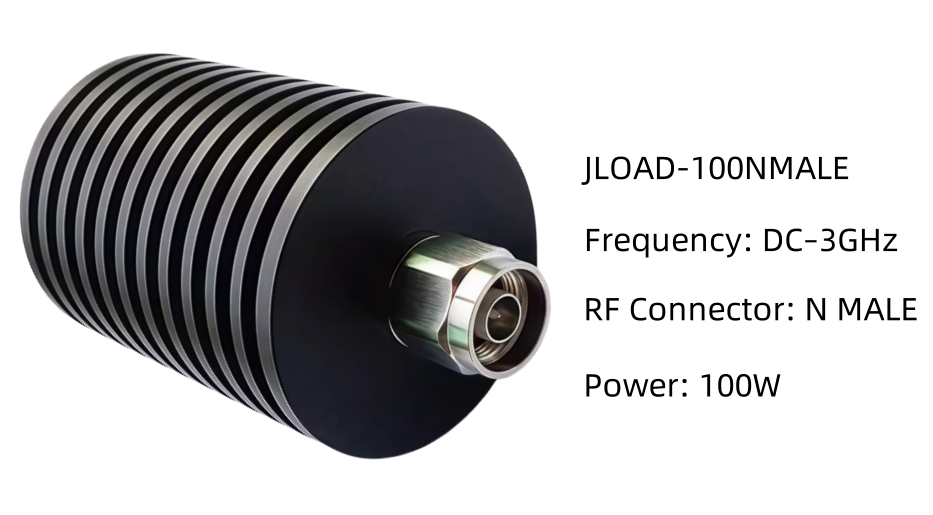

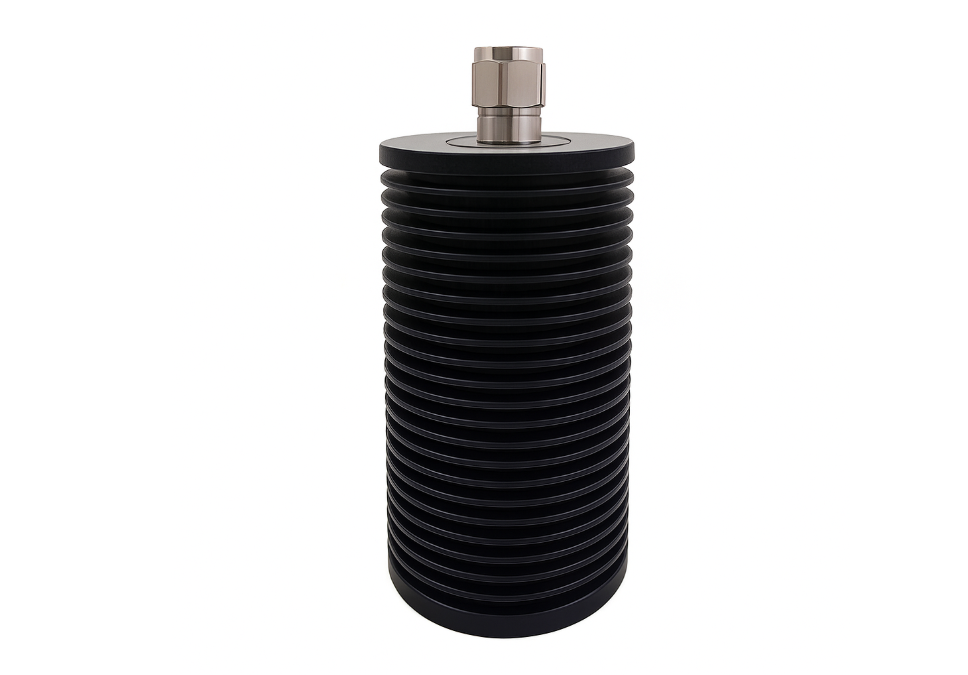

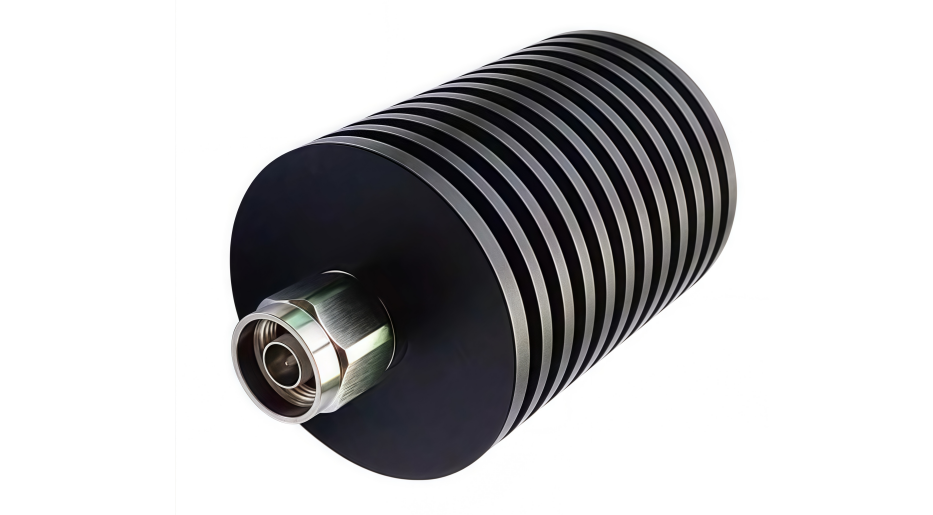

  • JLOAD-100NM — features an N Male connector, supporting DC–3 GHz.

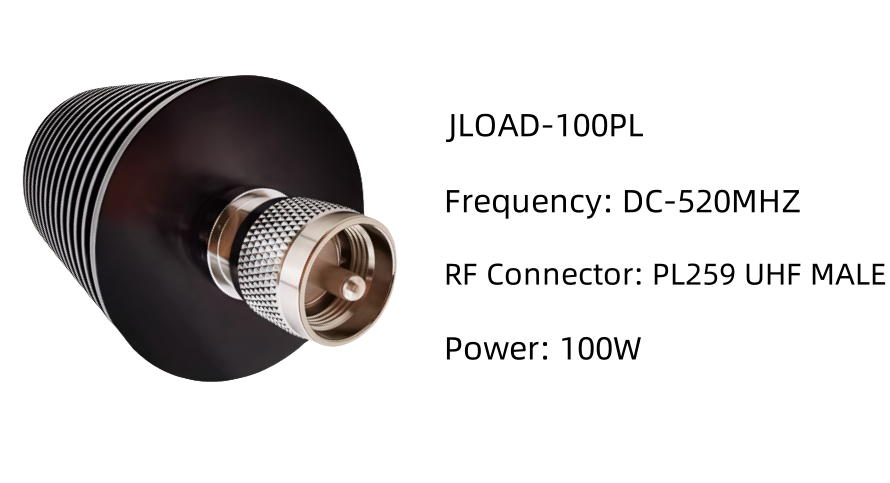

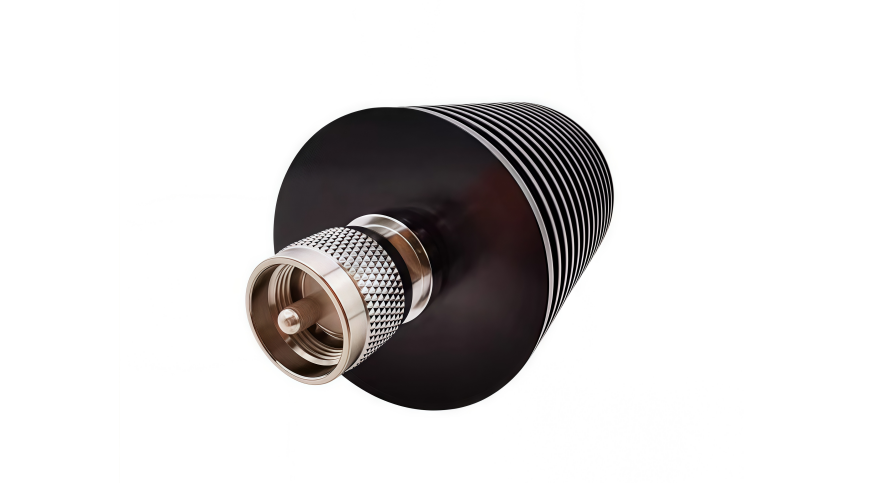

  • JLOAD-100PL — features a PL-259 (UHF Male) connector, supporting DC–520 MHz.



Both models handle up to 100W continuous power, offering stable performance, broad frequency coverage, and secure termination for a variety of RF systems.

This dummy load is an essential tool for amateur radio operators looking for safe and efficient transmitter testing.

Specification

Model JLOAD-100
Power Rating 100 Watts (Continuous)
Frequency Range DC to 520 MHz / DC-3GHZ
Impedance 50 Ohms
VSWR ≤ 1.2
Connector Type PL259 UHF Male / N MALE
Cooling Method Passive Air-Cooled
Outer Material Nickel-plated copper shell
Inner Conductor Silver-plated copper pin
Operating Temperature -55°C to +125°C


Part List

1 x JLOAD-100 DUMMY LOAD
