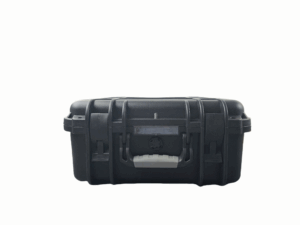

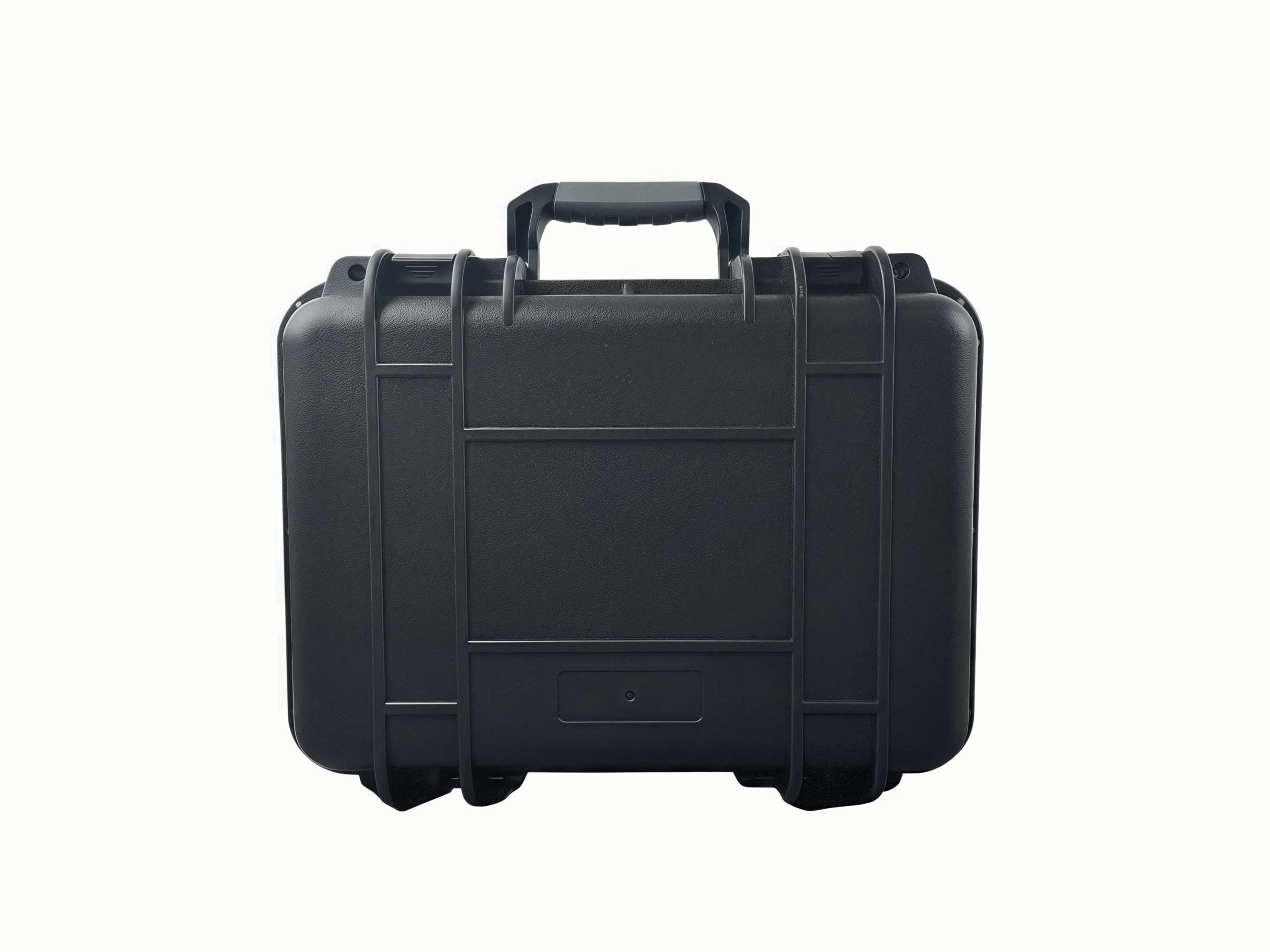

JNCRADIO JCASE_891 PROTECTIVE CASE FOR YEASU FT-891 WATERPROOF, POTA/SOTA

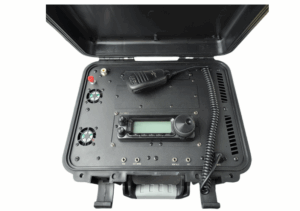

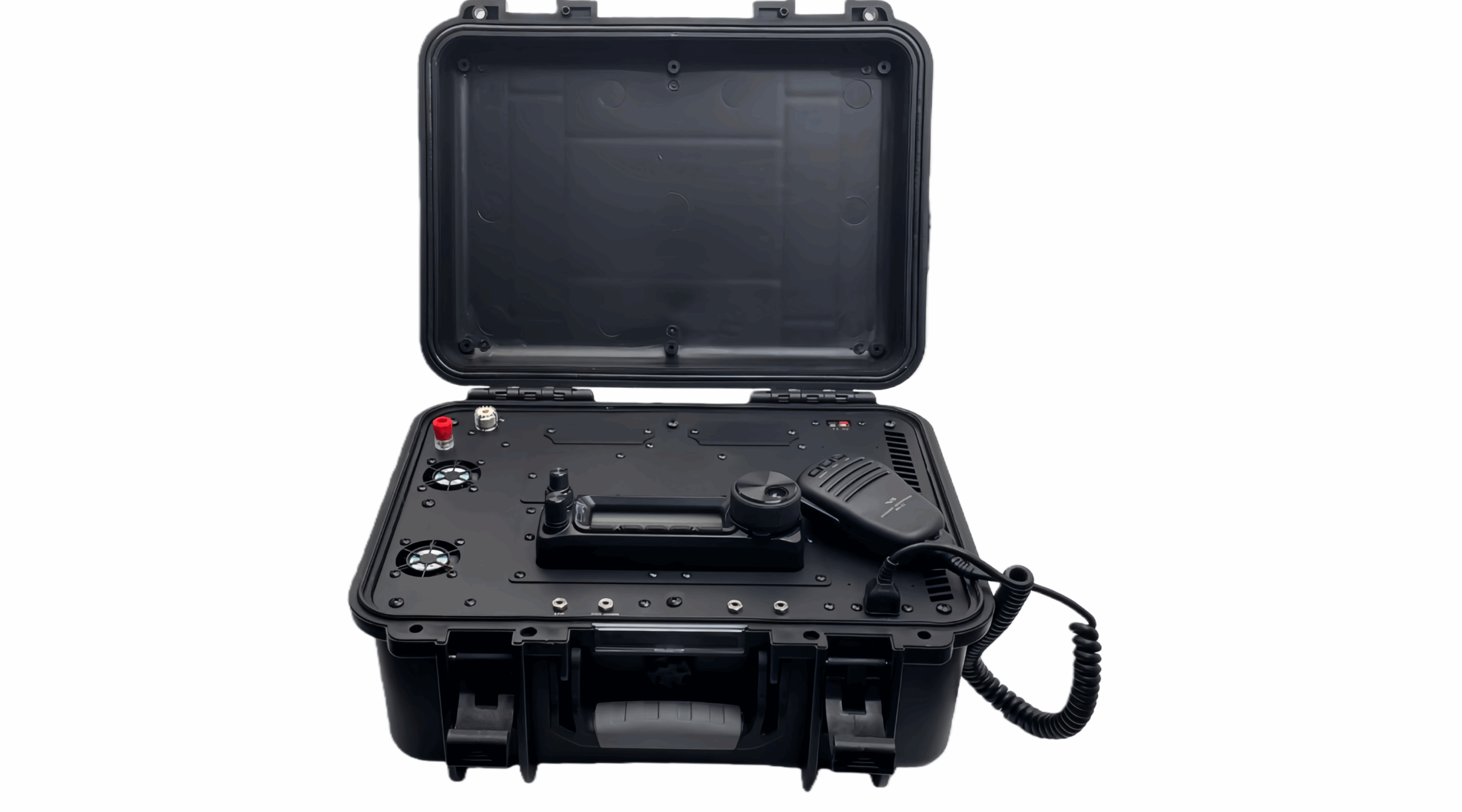

The whole unit is housed in a waterproof enclosure with the metal panel, internal bracket of the FT-891.

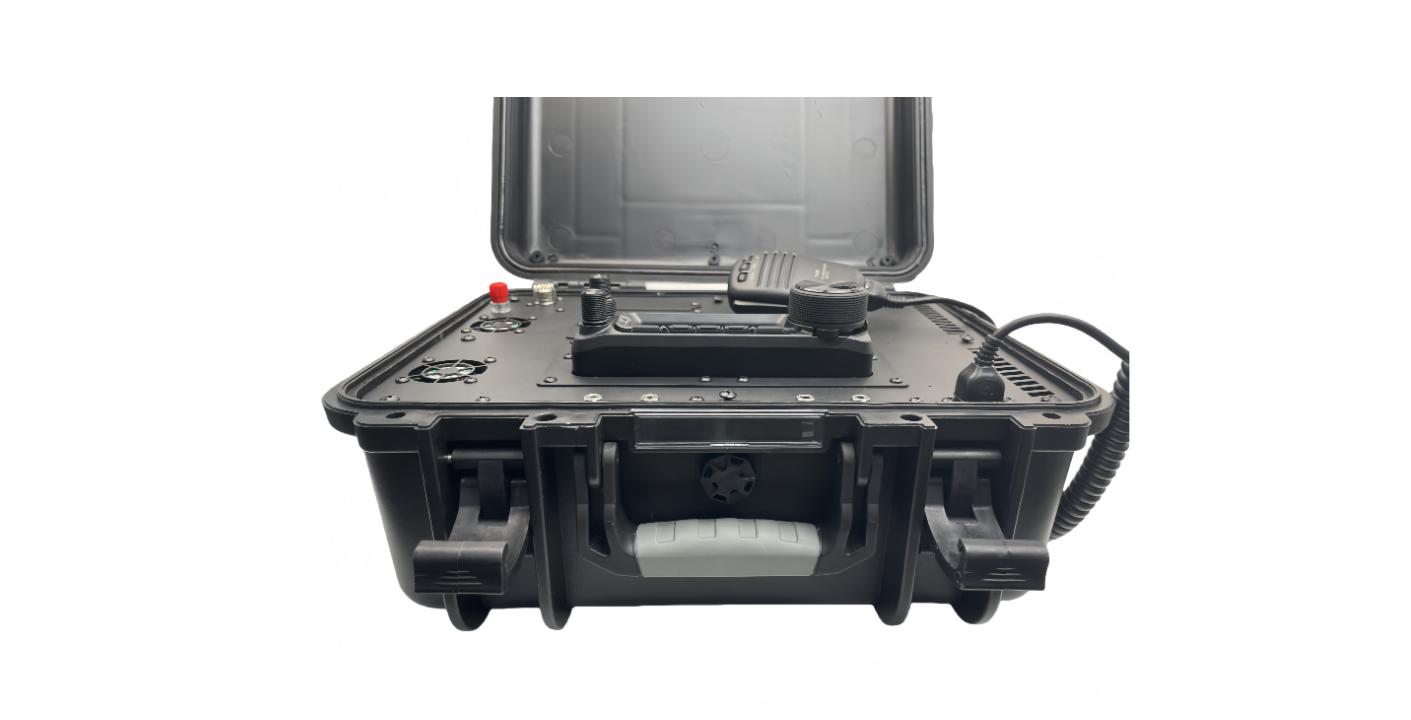

Expansion slots on the bottom for antennas or feeders, feeder ends, or hand microphones.

The waterproof and dustproof design can provide perfect protection for the radio.

This product contains: 1×JCase 891 and 1×891 Specialized Metal Panel, please note that the FT891 radio is not included.

(The photo just for reference.)

Turn the metal panel upside down and install one screw to fix the front panel of the radio

Install the connecting wires of the panel

Place the main unit of the radio behind the metal panel. Note: Place the radio in the direction shown in the following diagram

There are screw holes of two different heights on the metal panel. You can fix the height of the radio according to your own needs

After choosing the appropriate height, use screws to fix the radio in place

Connect the connecting wires of the panel and the hand microphone wires respectively

Insert the various 3.5 connecting wires correspondingly. Note that there is an extra Key wire which should not be inserted

As shown in the picture, open the power buckle and connect the power cord of the main unit

Install the power cords:：Note that the two power cords of the main unit should not be exposed at all, otherwise it will cause a short circuit

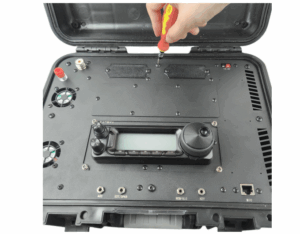

Turn the metal panel over, then put it into the waterproof box, and reinstall the eight fixing screws that were removed in the first step

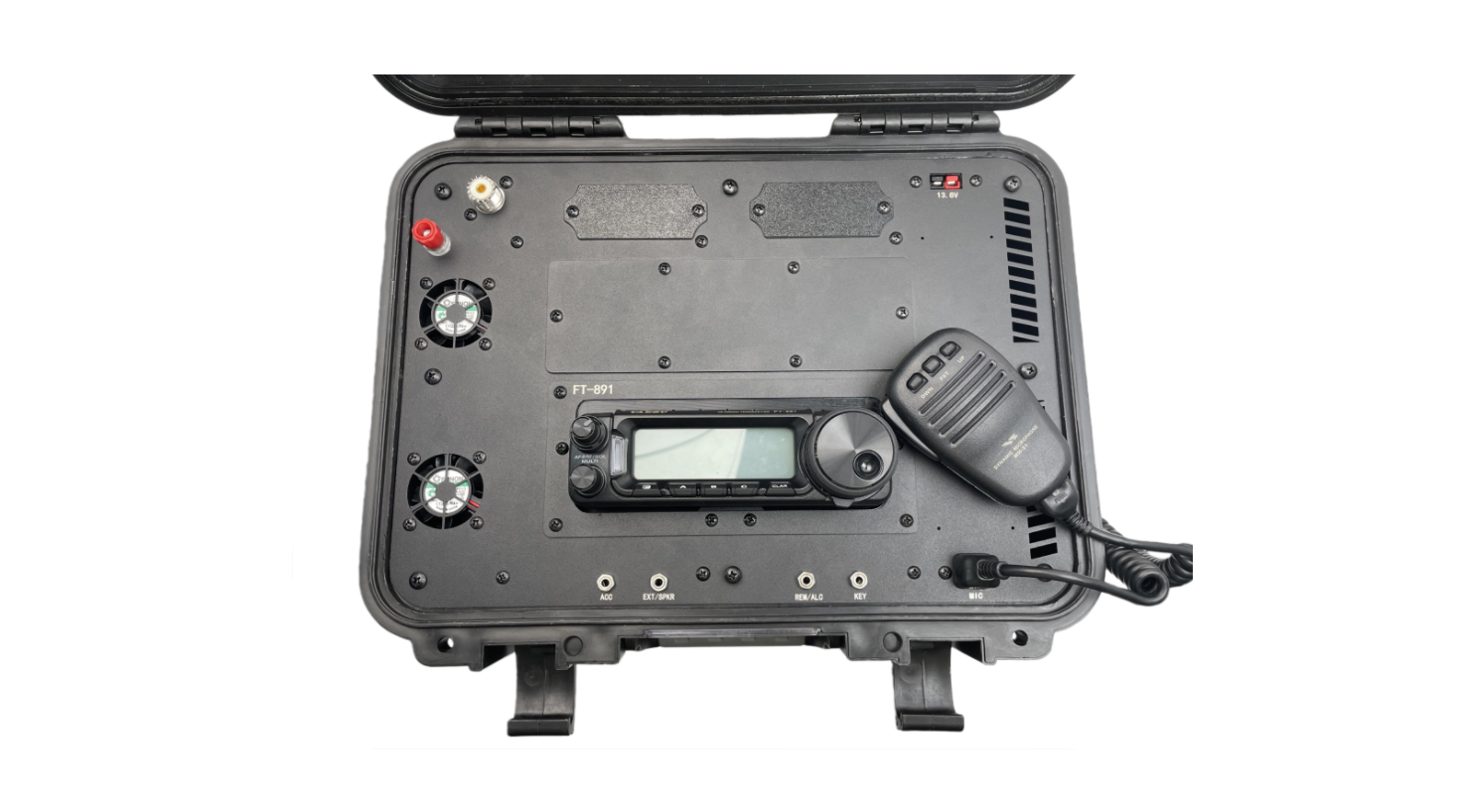

After fixing the metal panel, you can also install the hand microphone according to your needs
