Description

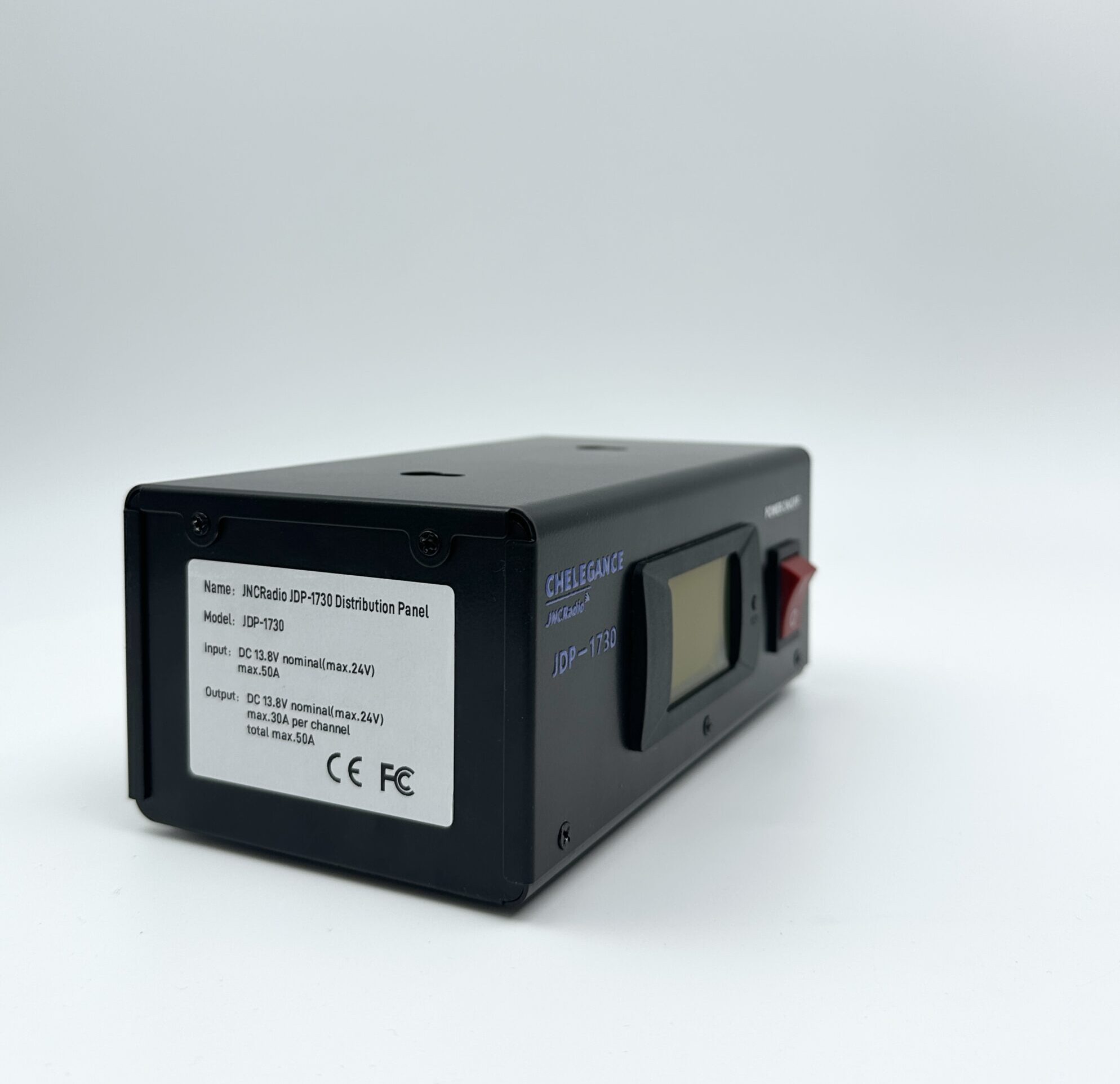

The JNCRadio JDP-1730 is a high-current DC power distribution panel designed for modern amateur radio stations. It offers six independently fused outputs, each rated at 30A, and supports up to 50A total load—ideal for powering transceivers, linear amplifiers, tuners, power supplies, and a wide range of station accessories. The integrated 2.4″ color power meter provides real-time monitoring of voltage, current, power, and energy. Built with an XT90 heavy-duty input connector and a powder-coated steel chassis, the JDP-1730 delivers safe, reliable, and efficient power management for any HAM shack.
Provides up to 50A total system load, with each output safely supporting up to 30A for high-demand radio equipment.

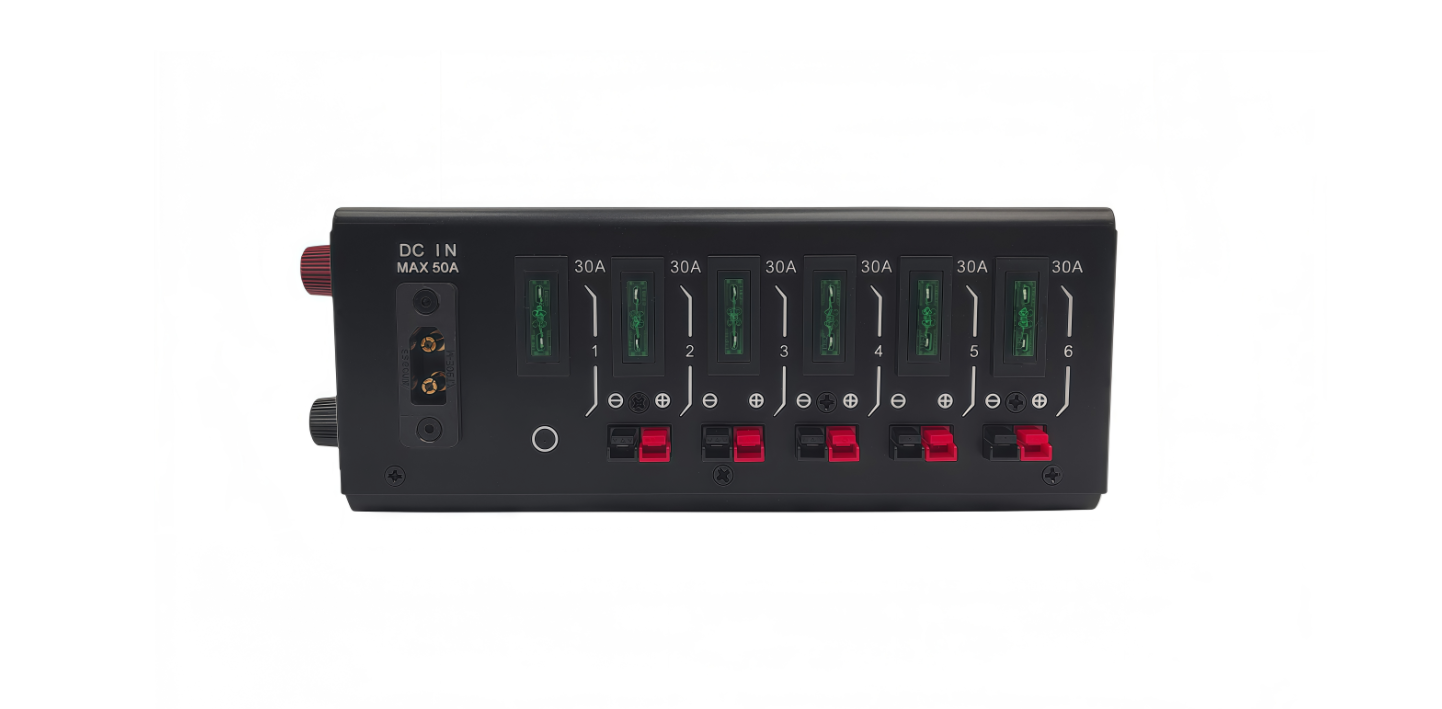

Offers six fully isolated, fuse-protected outputs to prevent device faults from impacting the entire power system.

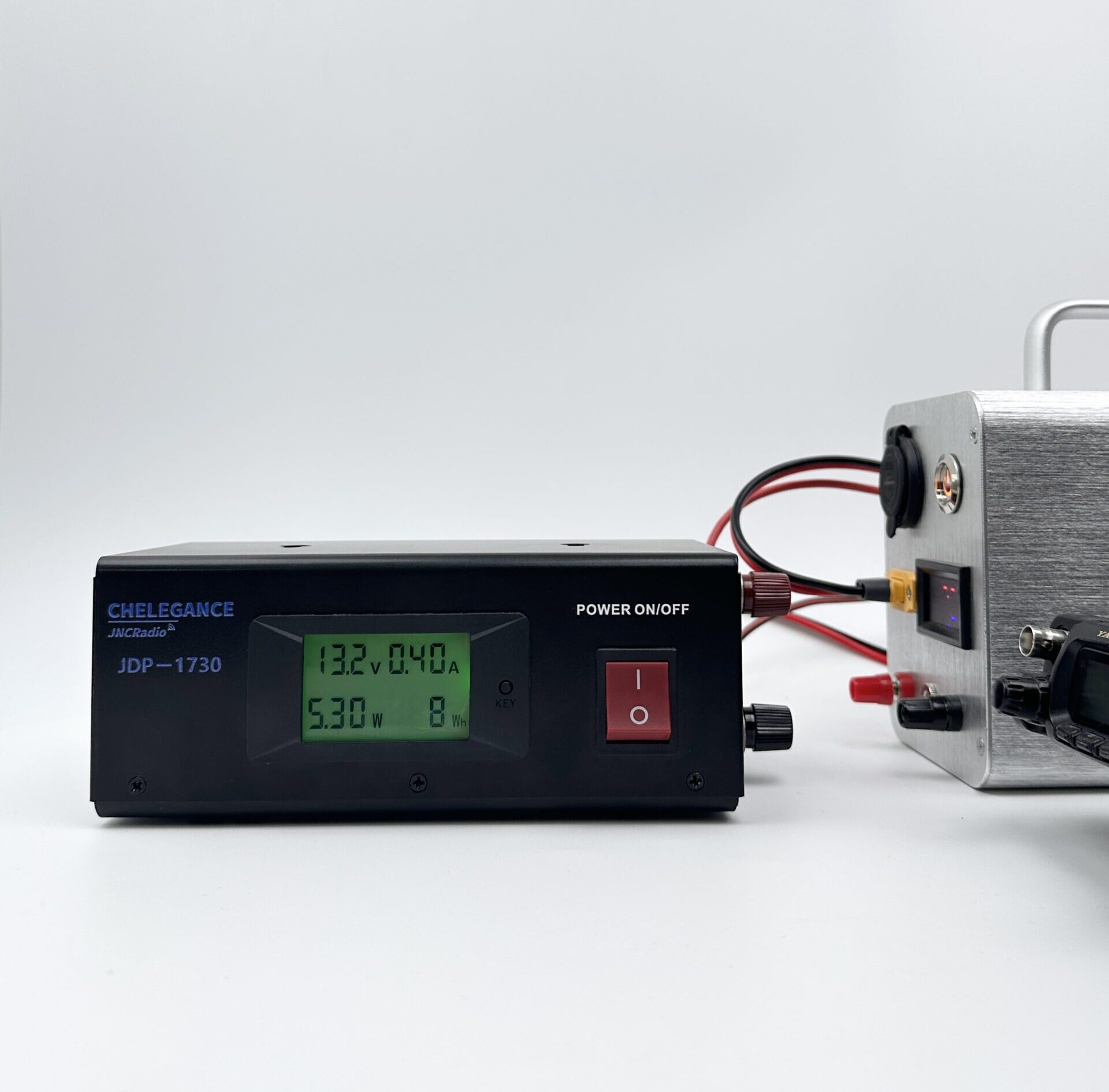

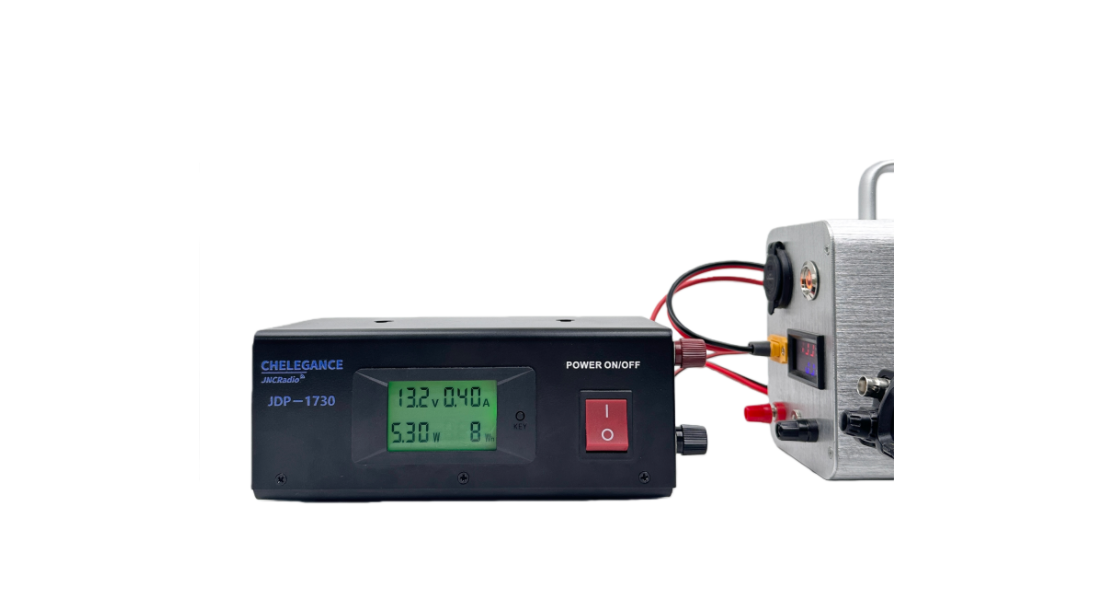

Integrated full-color display delivers real-time monitoring of voltage, current, power, and energy consumption.
Fully compliant with international safety and environmental standards for worldwide deployment.

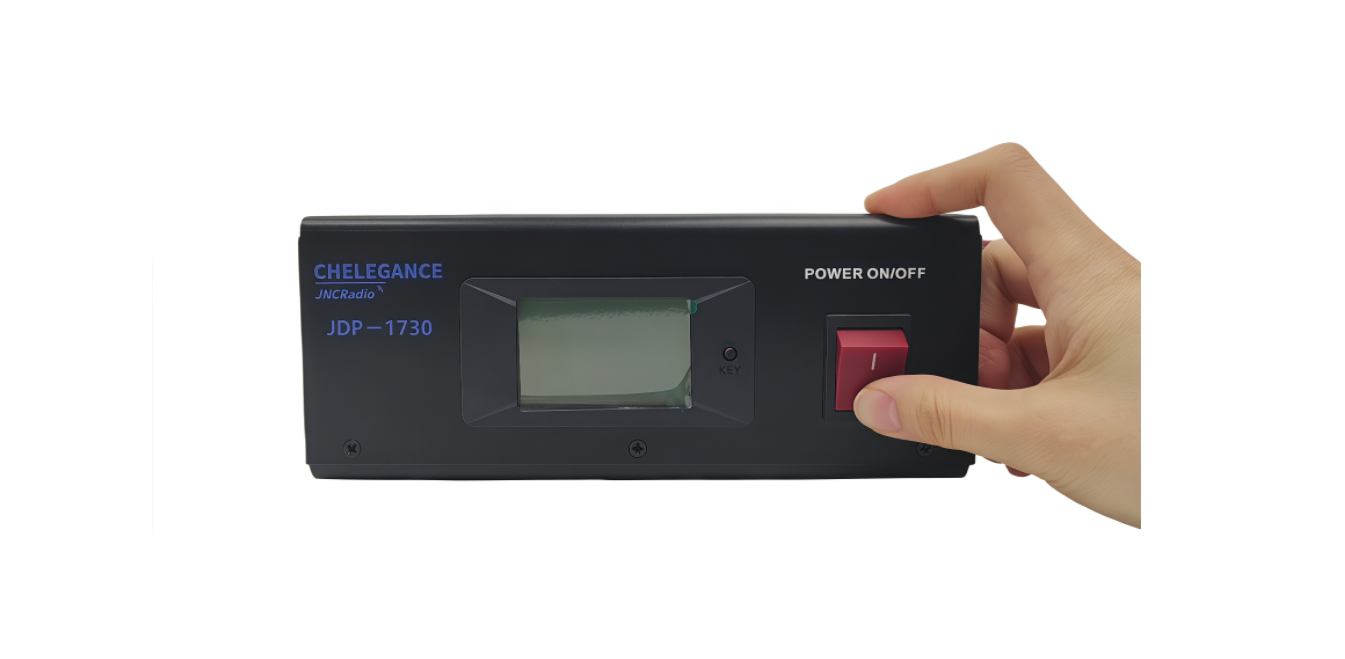

One-touch master switch allows instant power cutoff for enhanced safety and operational convenience.
Durable steel chassis provides superior physical protection and EMI shielding for stable radio performance.
Supports both desktop placement and wall-mount installation for flexible station layout.
The JNCRadio JDP-1730 provides reliable and fully monitored DC power for multiple radio devices, combining high current capacity, individual fused outputs, and a vibrant color meter to keep your HAM shack running safely and efficiently.
Specification
| Basic Configuration | |

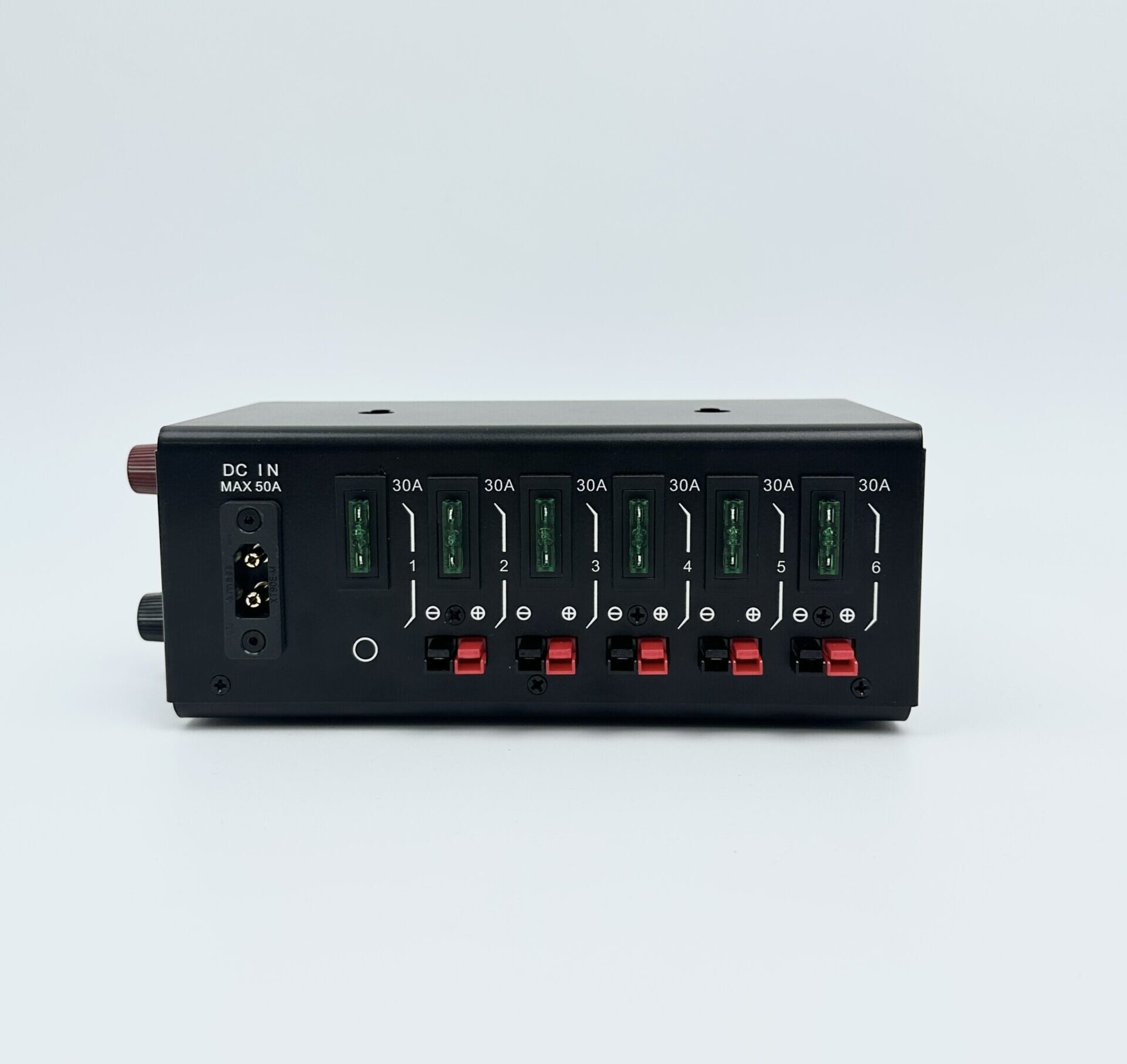

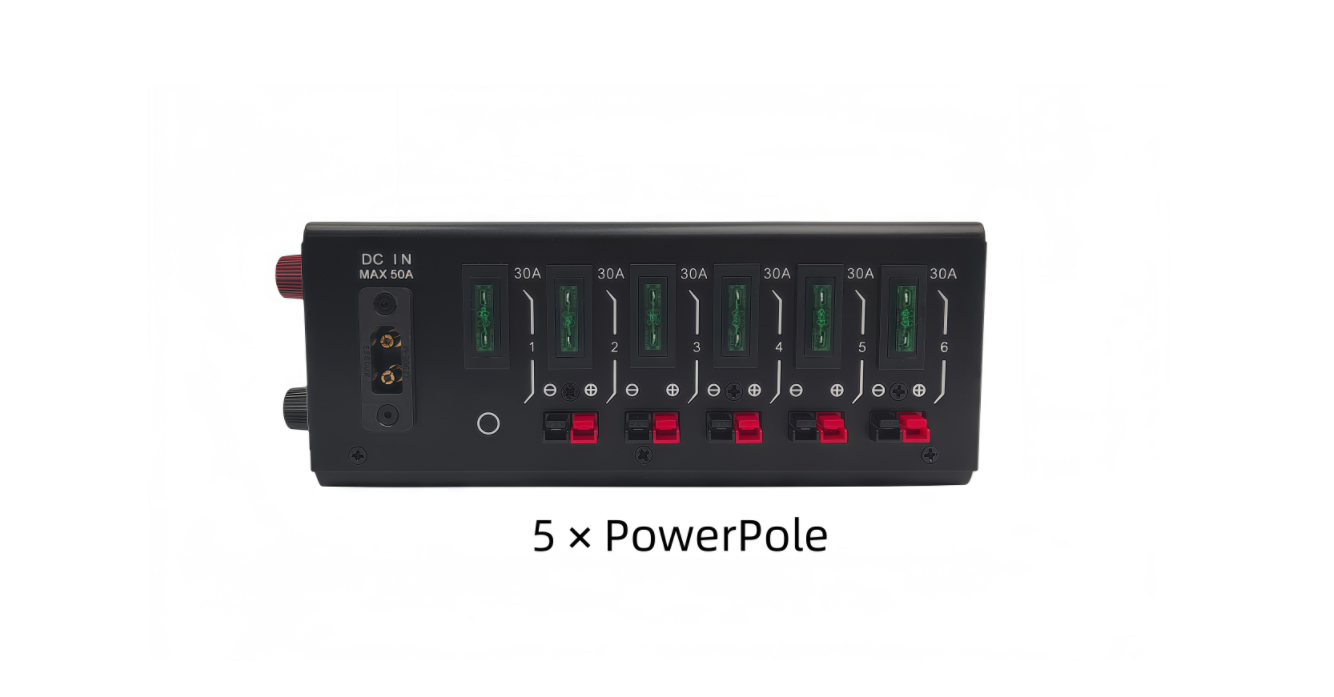

| Input/Output Configuration | 1 input, 6 outputs (5×PowerPole + 1×Binding Post) |
| Meter Function | Voltage / Current / Power display |
| Input | |
| Input Voltage (Nominal) | 13.8V |
| Input Voltage (Recommended Max) | ≤ DC 24V |
| Input Voltage (Absolute Max) | ≤ DC 36V |
| Voltage Behavior | Output voltage equals input (no buck/boost) |
| Usage Note | Typical radio voltage 13.8V; caution advised for 24V input |
| Max Input Current | 50A |
| Input Connector Type | XT90 (to two open-end wires) |
| Included Input Cable | 1 meter, 10AWG |
| Output | |
| Output Voltage | Same as input voltage |
| Max Current per Channel | 30A |
| Max Total Output Current | 50A |

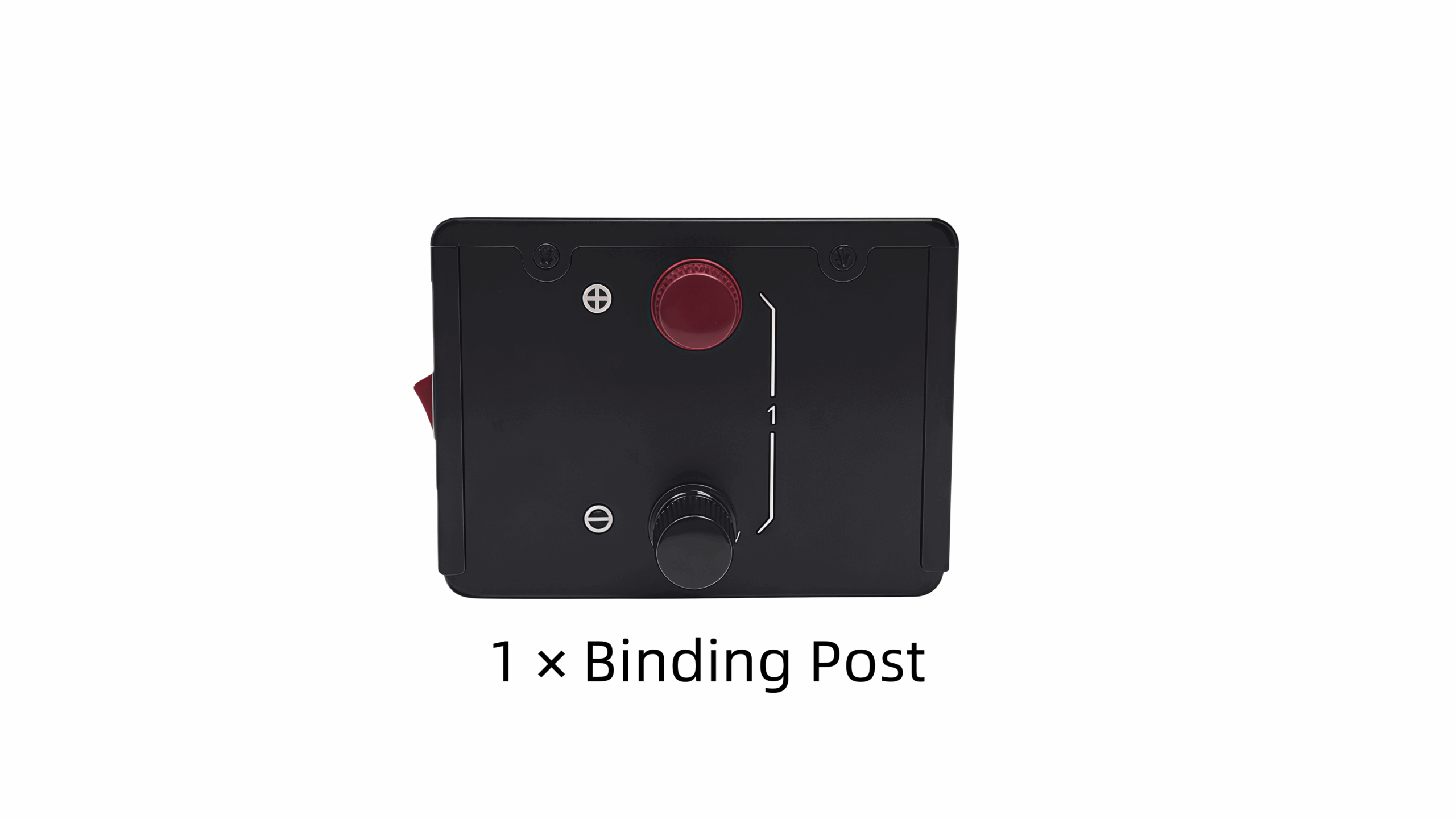

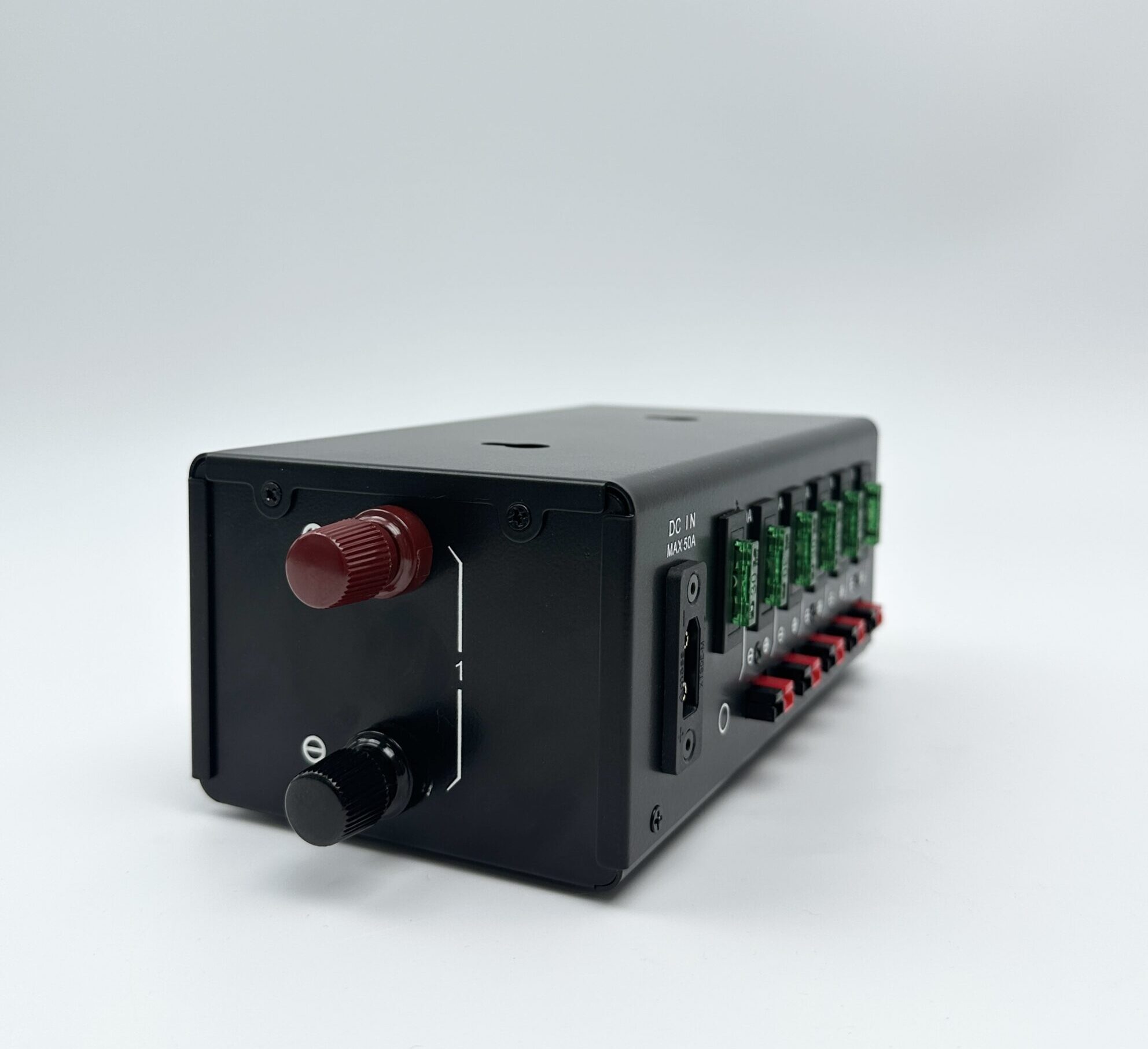

| Binding Post Specification | M6 |
| PowerPole Accessories Included | Yes (refer to parts list) |
| Meter Specifications | |
| Voltage Range | 8–300V |
| Current Range | 0–50A |
| Power Range | 0–10kW |
| Energy | 0–999kWh |
| Accuracy | ±1% |
| Mechanical | |

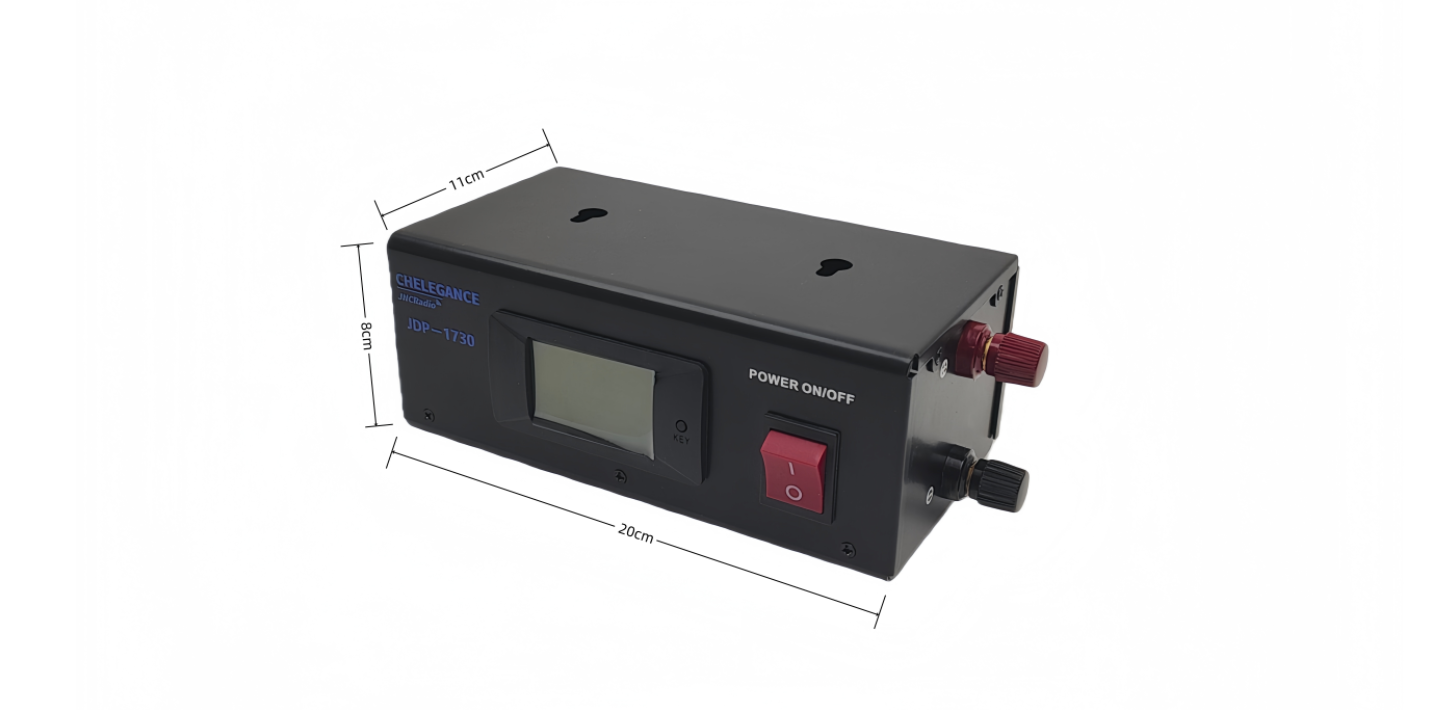

| Dimensions (W×D×H) | 200 × 110 × 85 mm |
| Weight | 1.5kg |
| Main Material | Powder-coated steel |

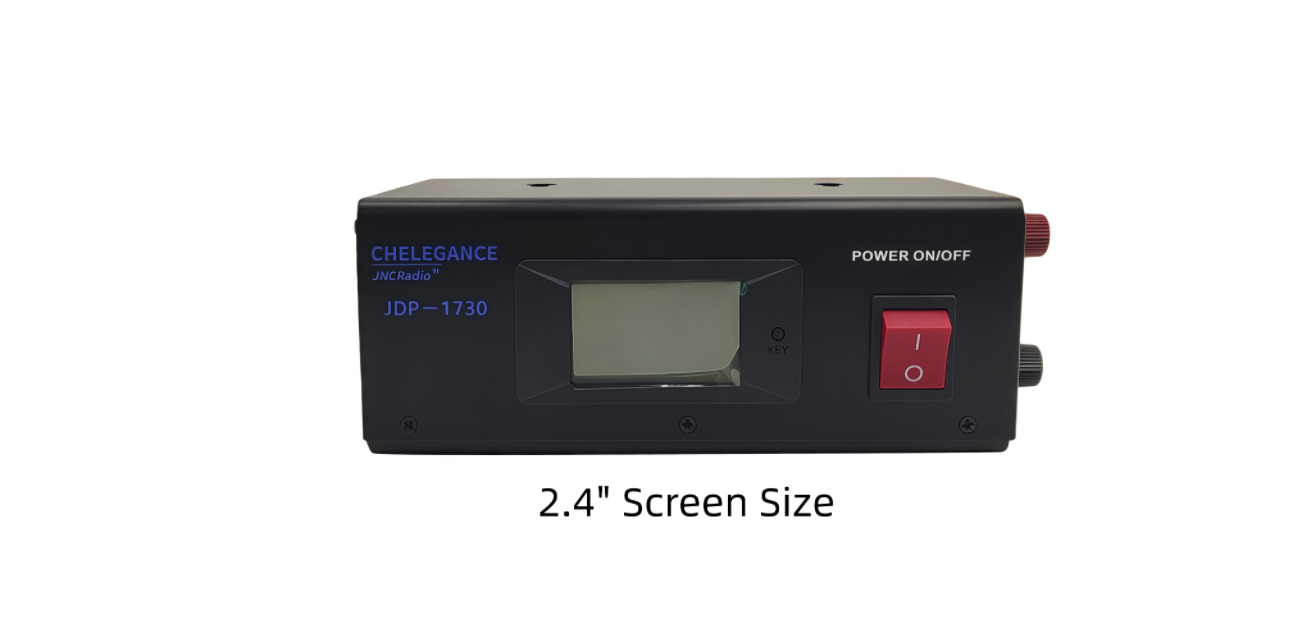

| Screen Size | 2.4 inch |

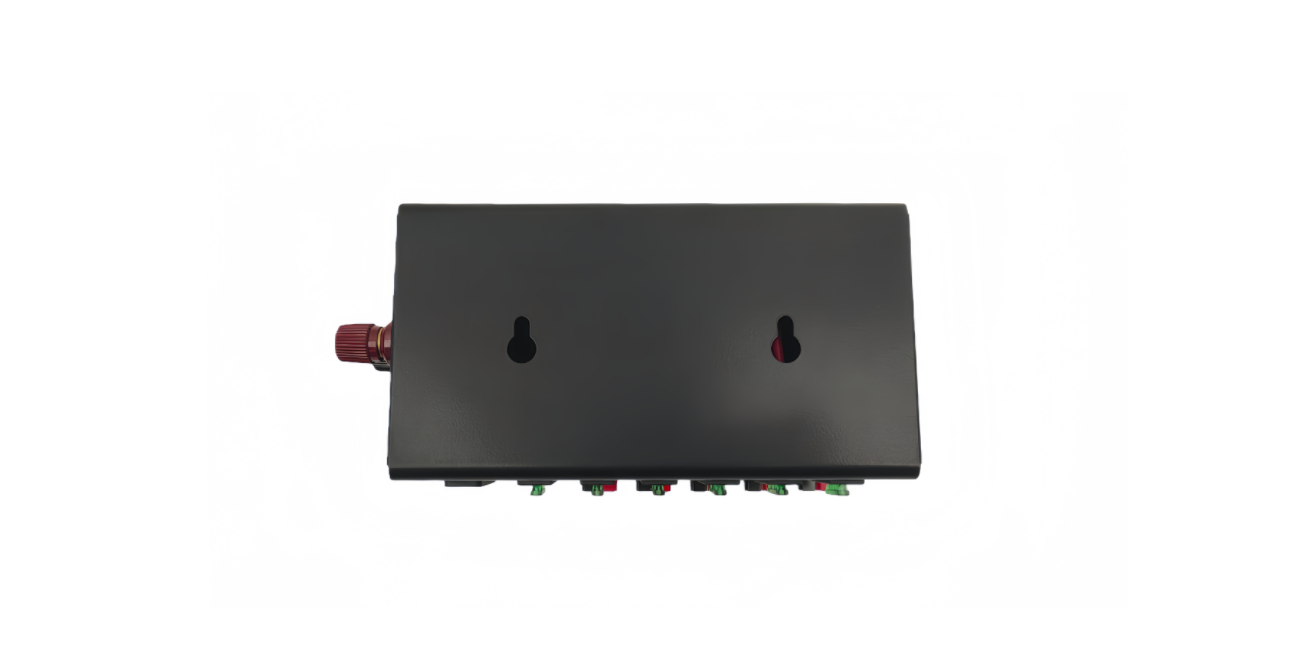

| Installation Options | Desktop placement / Wall-mount (keyhole slots) |
| Fuse | |

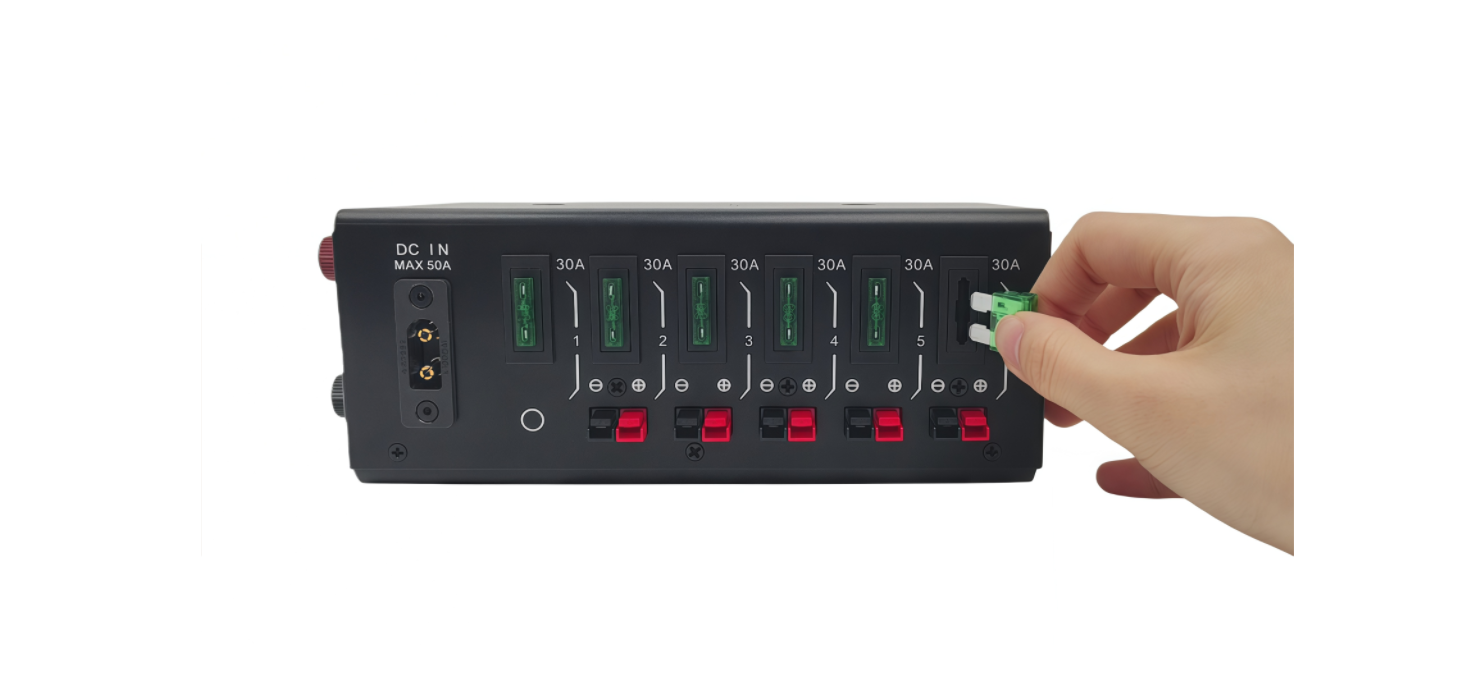

| Fuse Configuration | 6 fused outputs, each 30A |
| Fuse Rating | 30A |
| Certifications | |
| Certifications | CE / FCC / RoHS |

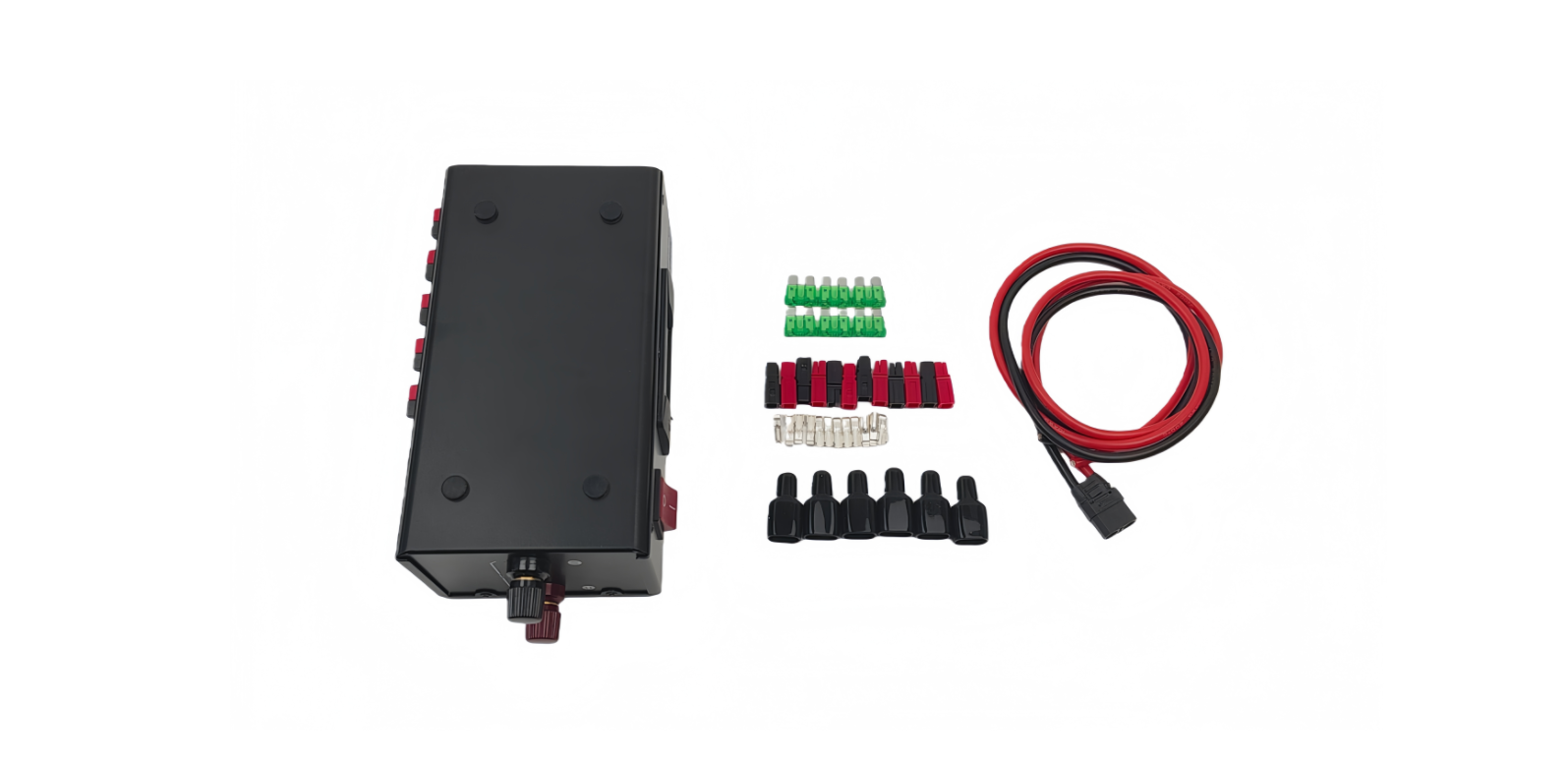

Part List
- 1× Power Distribution Panel
- 5× Pairs of Anderson PowerPole Connectors
- 5× Rubber Protective Covers
- 1× XT90 Connector
- 6× Spare 30A Fuses
