Description

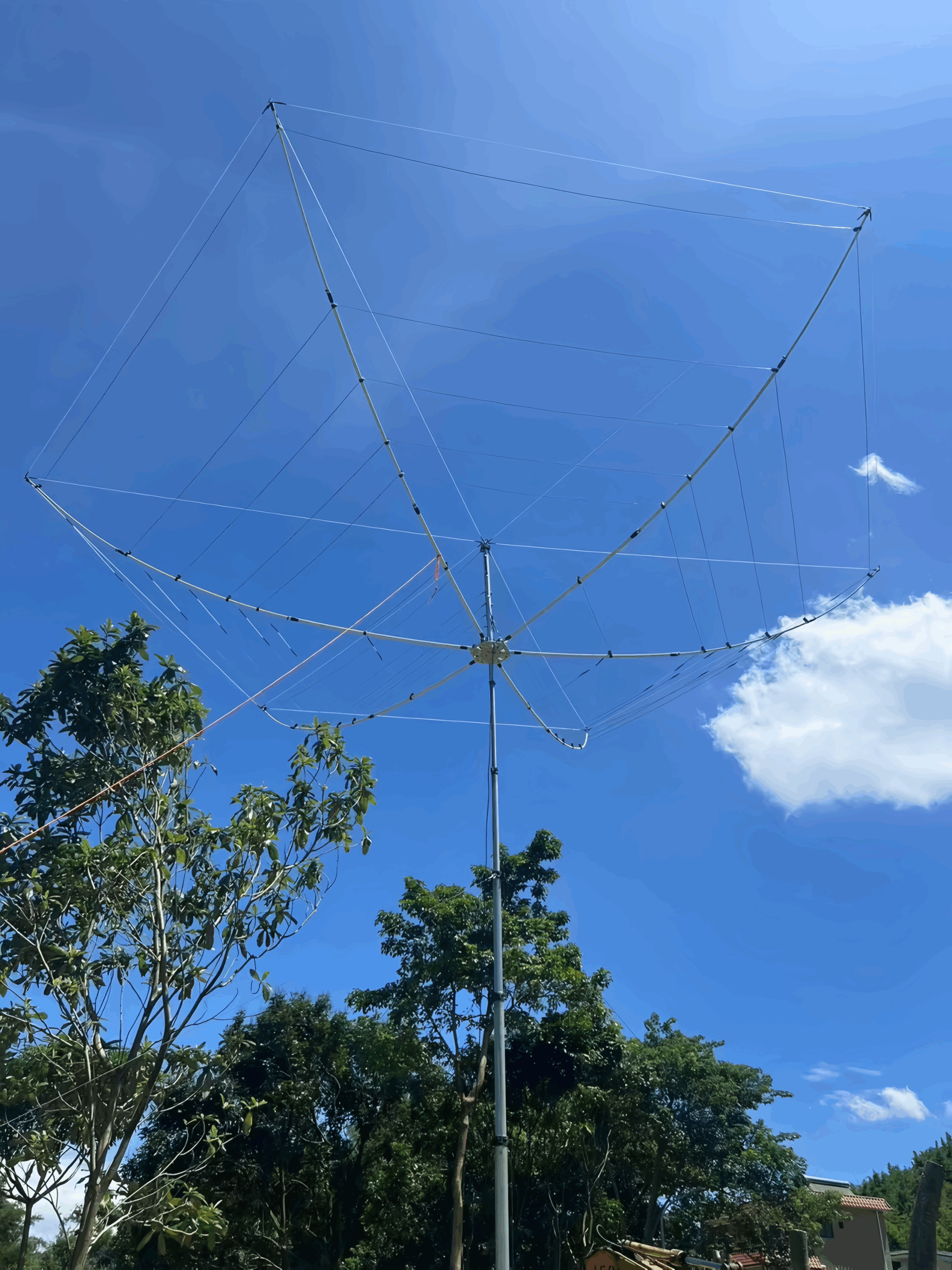

The JNCRADIO JHEX-6 is a high-performance full-size 6-band HEXBEAM antenna engineered for station and contest use. Covering the 20/17/15/12/10/6 meter bands and rated for 2000 watts PEP, it is ideal for DXing and high-duty-cycle operation. Its modular construction allows quick, tool-free assembly, making it easy for solo operators to install. With full-size elements on each band, the JHEX-6 delivers outstanding gain and directivity—an excellent choice for serious operators and contesters.
Key Feature
- Frequency Coverage：Experience full-size performance across 6 bands (20/17/15/12/10/6 meters).
- Power Handling：Built to withstand 2000W PEP for high-power transmission in demanding conditions

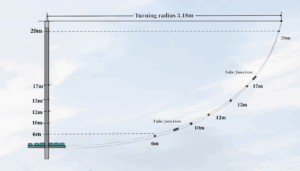

- Turning Radius&Overall Diameter：Tuning radius of the antenna when erected is 3.18 meters, resulting in an overall diameter of 6.4 meters when fully set up, with a forward gain of ≈ 5 dBi and a front-to-back ratio of 12–19 dB for strong directional performance.

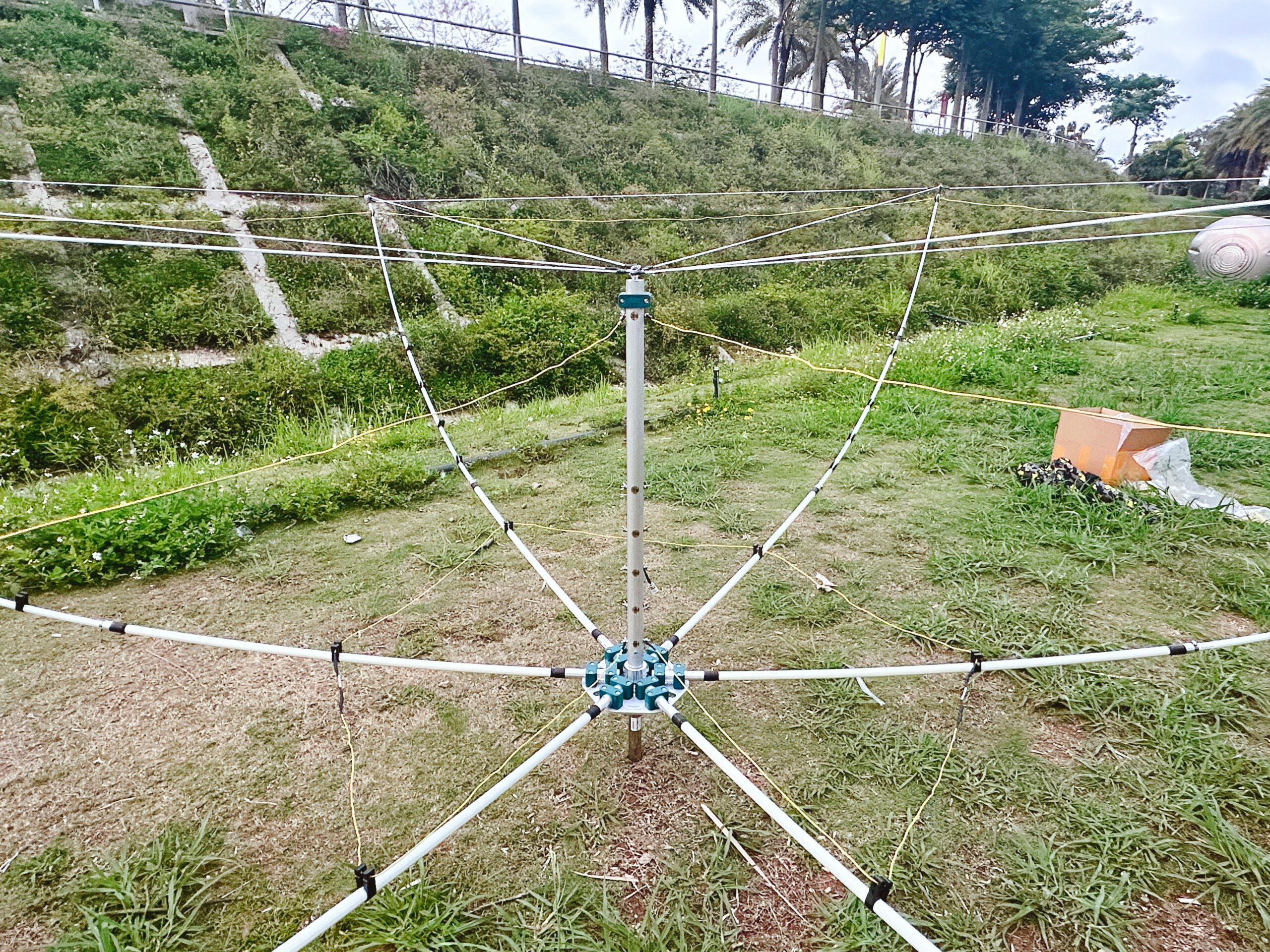

- Tool-Free Assembly：The innovative modular design assembles by hand, eliminating the need for any tools while maintaining stability.

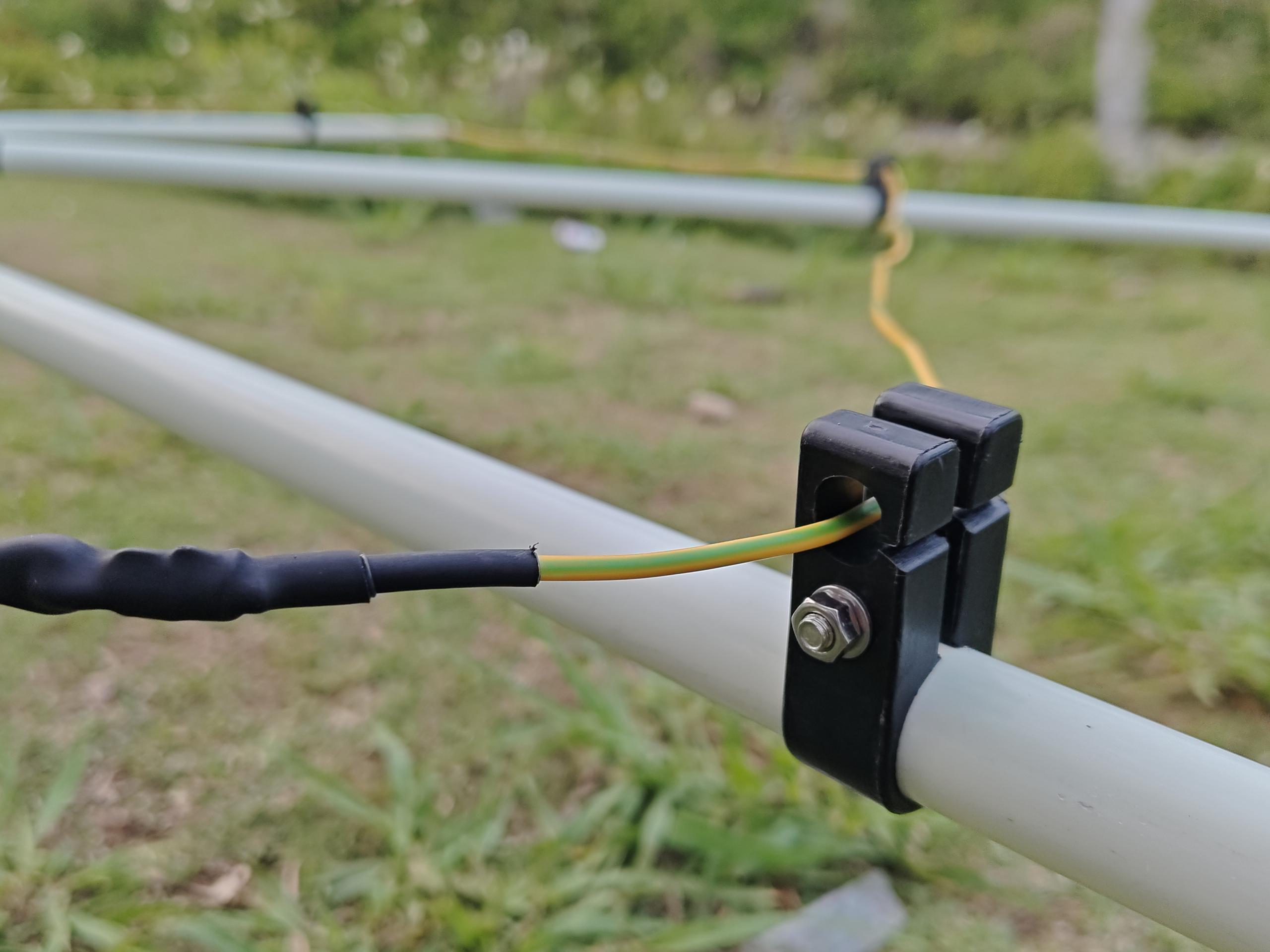

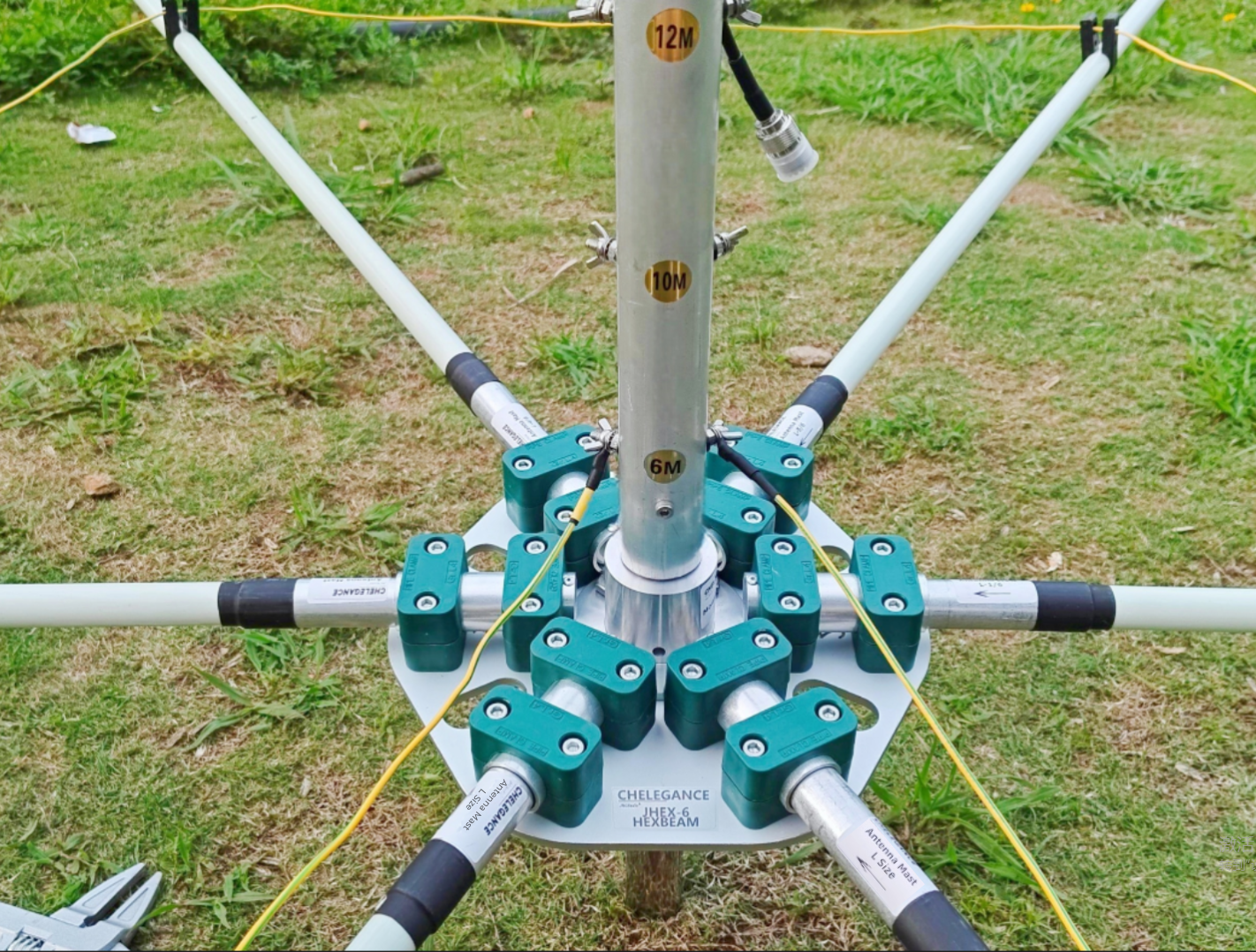

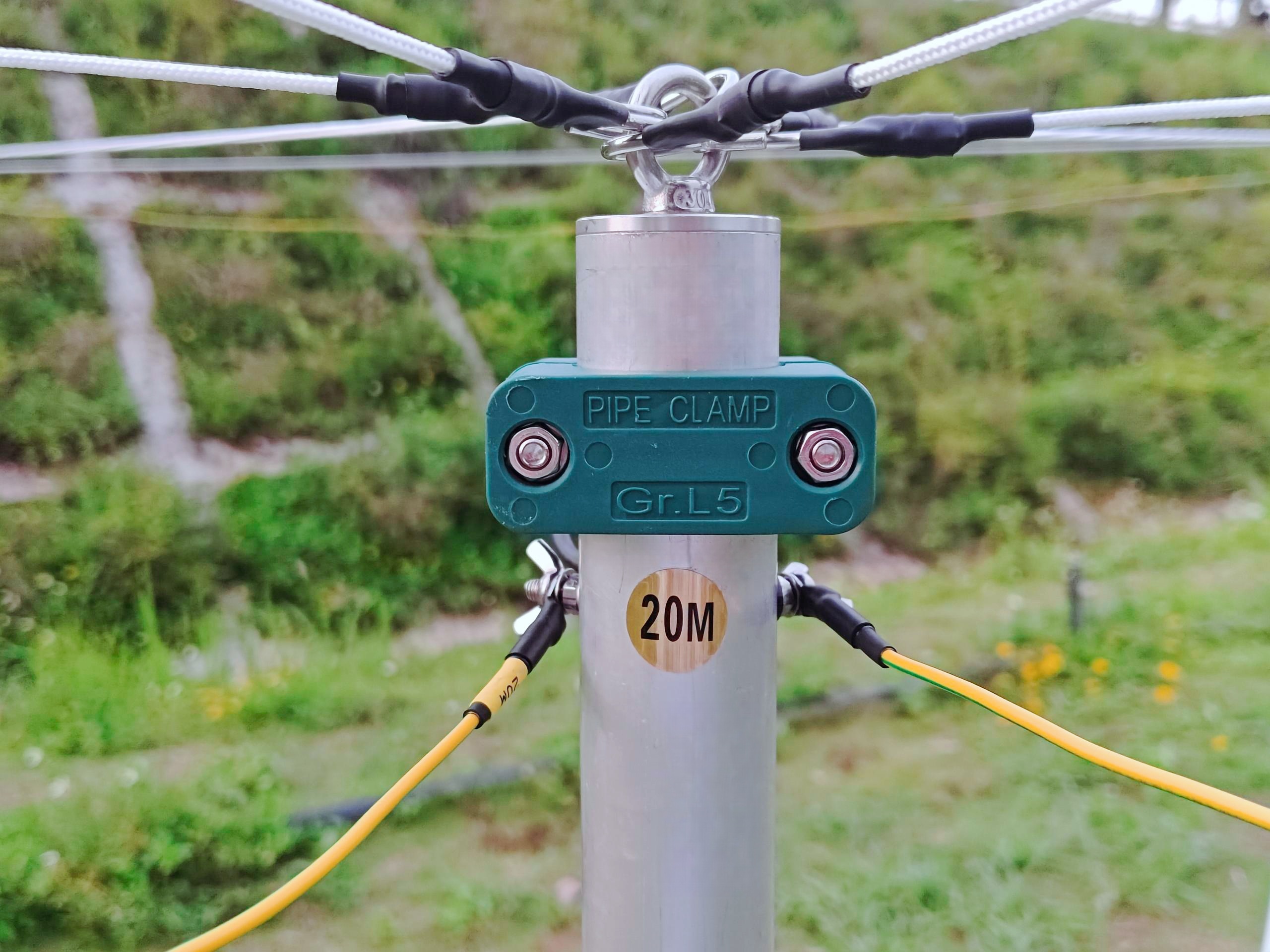

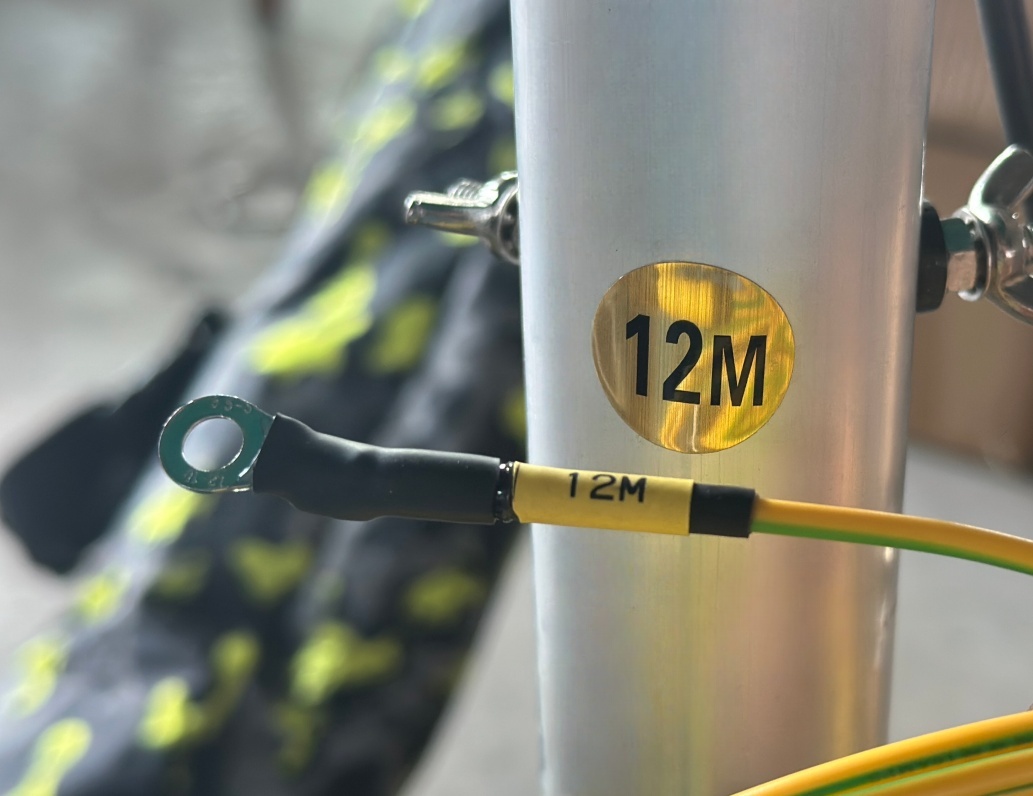

This antenna features precision-molded cable lugs and main beam construction for exceptional durability, while maintaining remarkable portability.The innovative tool-free design incorporates aluminum-reinforced plug-in joints with butterfly screw vibrator connections, supported by a rugged 35mm diameter 304 stainless steel base tube that ensures secure mast mounting and reliable performance in demanding field conditions.
Specification
| Frequency | FULL-SIZE 20/17/15/12/10/6 METER BAND |
| Withstand Power | 2000-WATT PEP |
| Accessory Information | 1:1 BALUN INCLUDED |
| Weight | 12kg |
| Turning Radius | ≈ 3.18 m |
| Overall Diameter | ≈ 6.40 m |
| Full Height of Main support | 1.29 m |
| Height of beam | 1.05 m (from mounting base to top of main support after assembly) |
| Packaging Dimensions and Quantity | 1 x 1.4m*0.16m*0.16m 1 x 0.3m*0.3m*0.2m |
| Forward Gain | 5 dBi |
| Front-to-Back Ratio（F/B） | 12–19 dB |

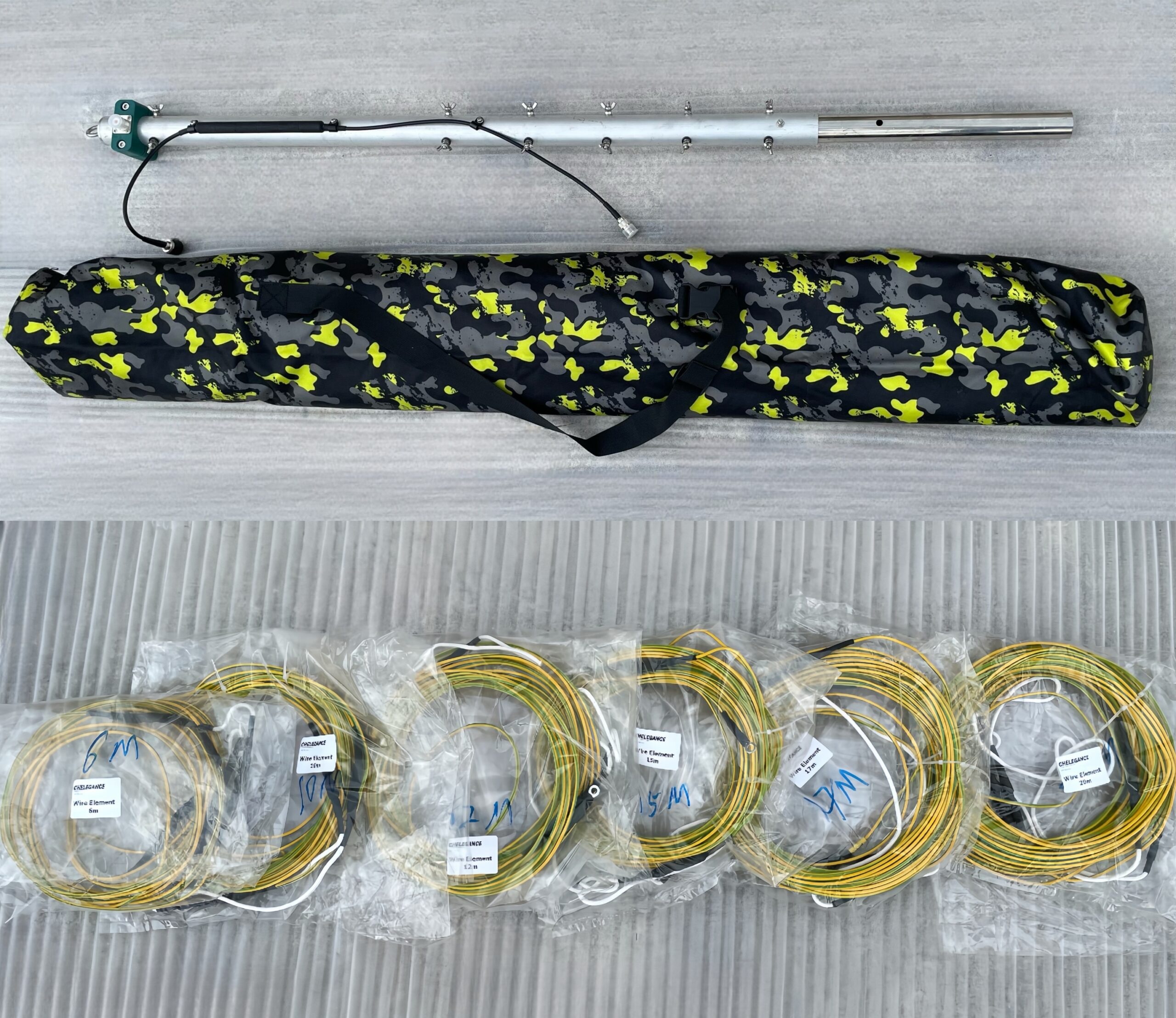

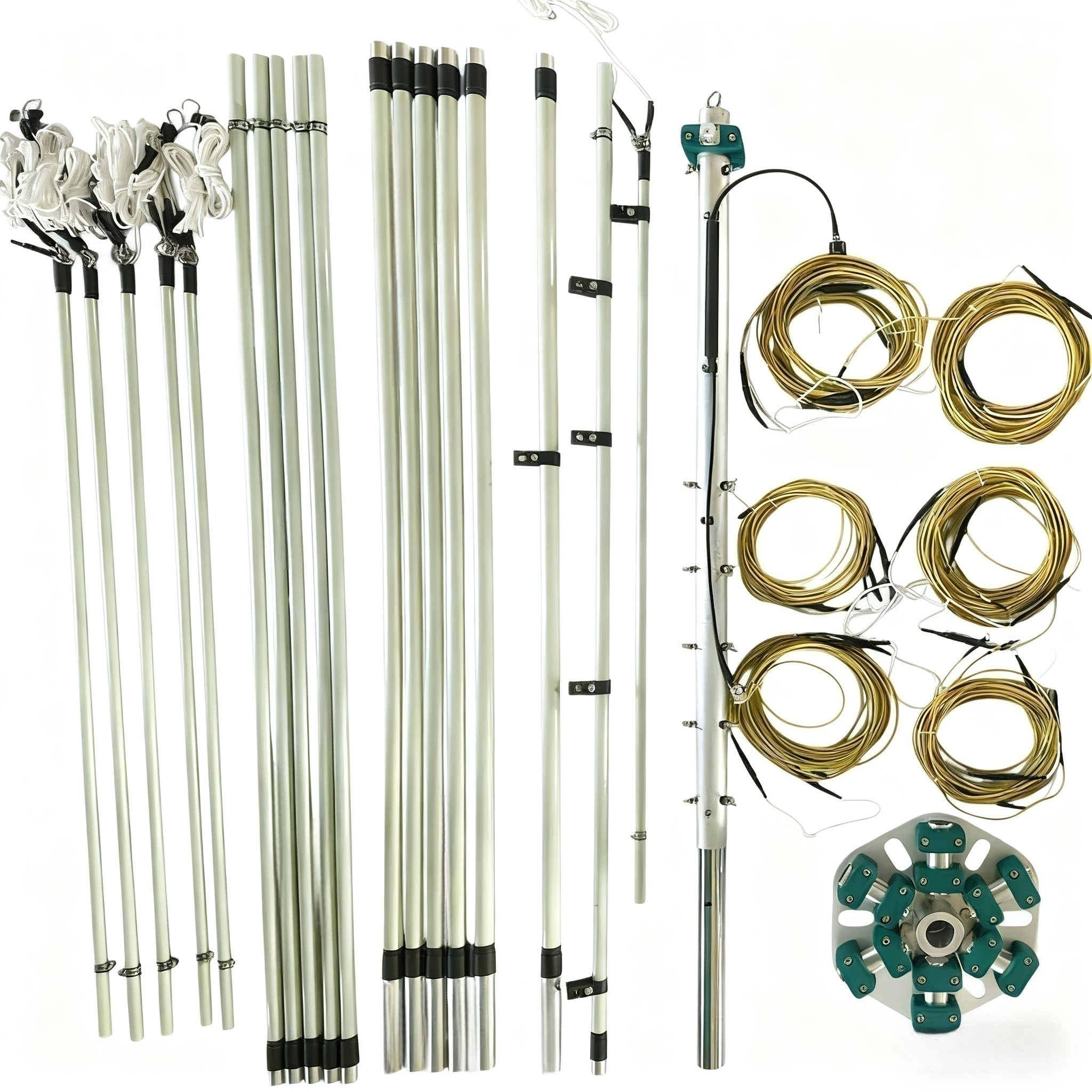

Part List
- 1 x Main Support
- 1 x Mounting Base
- 6 x Antenna Mast S size
- 6 x Antenna Mast M size
- 6 x Antenna Mast L size
- 1 x Wire Element 6m
- 1 x Wire Element 10m
- 1 x Wire Element 12m
- 1 x Wire Element 15m
- 1 x Wire Element 17m
- 1 x Wire Element 20m
- 5 x Clamps S size
- 20 x Clamps M size
- 5 x Clamps L size
- 5 x Screws S size
- 20 x Screws M size
- 5 x Screws L size
