Description

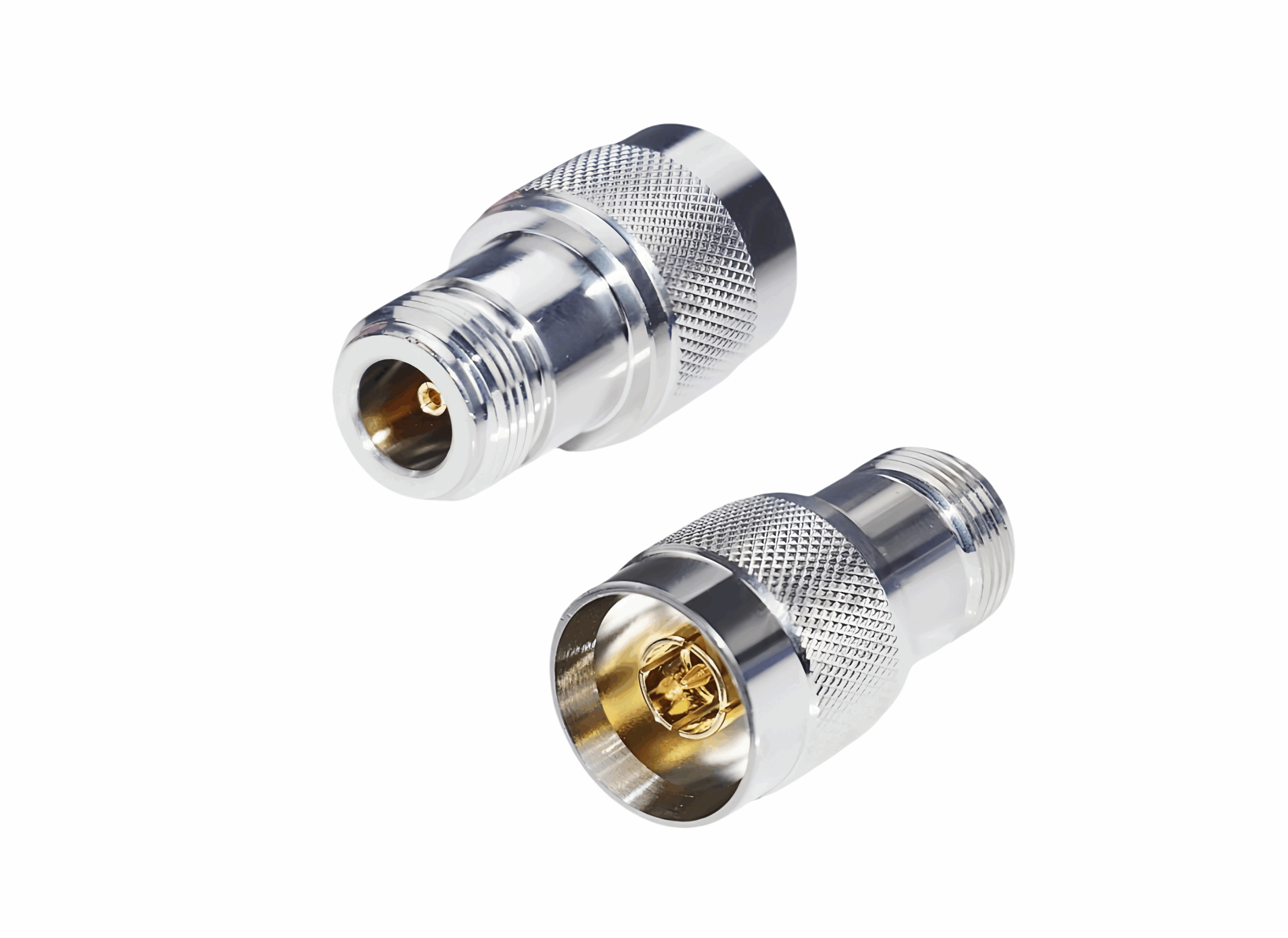

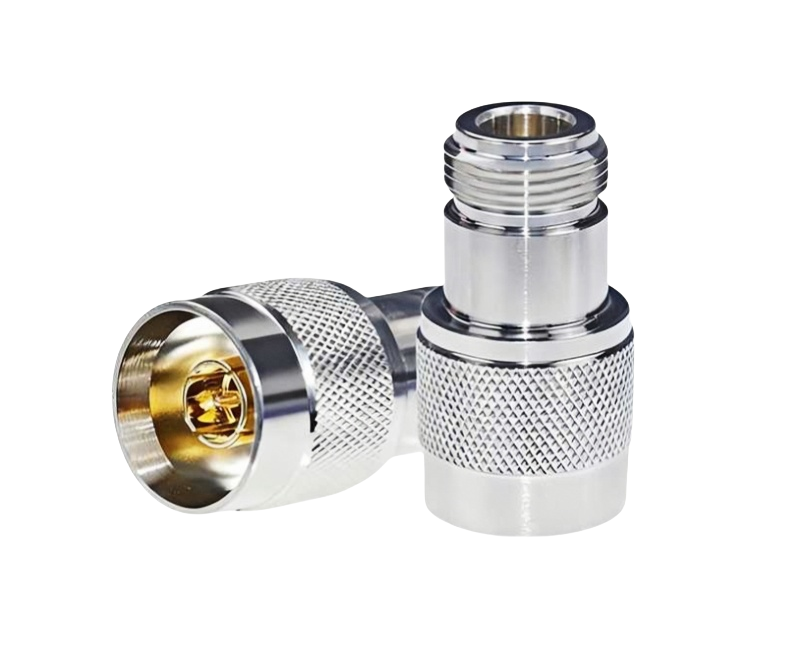

The Type N Male–Female Quick Disconnect Push‑On Adapter is a high‑quality N‑type quick‑plug adapter that eliminates the need for traditional threaded connections—just push in, no screwing required. Designed for fast, reliable RF system changes, it’s ideal for ham radio test benches, portable setups or frequent‑change coaxial connections.
Converts standard N female ports to a quick push-on male interface for instant connection.

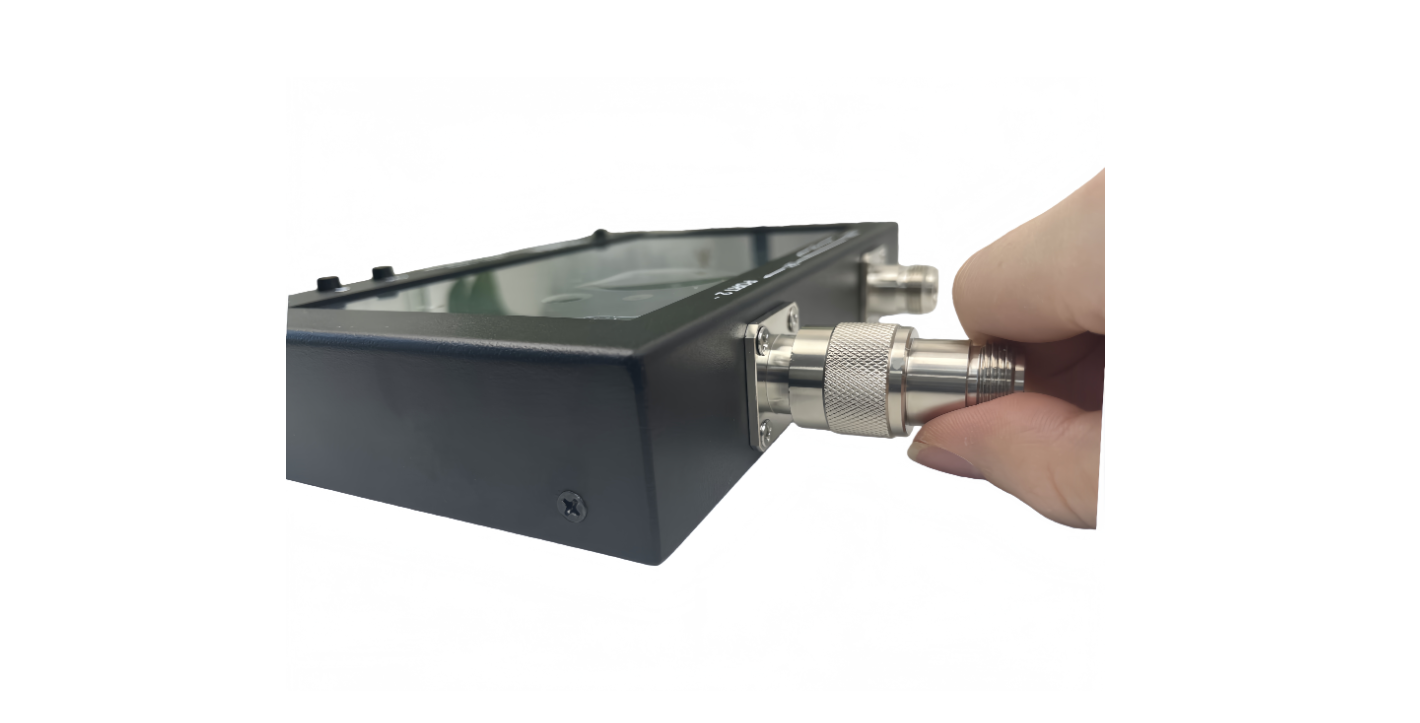

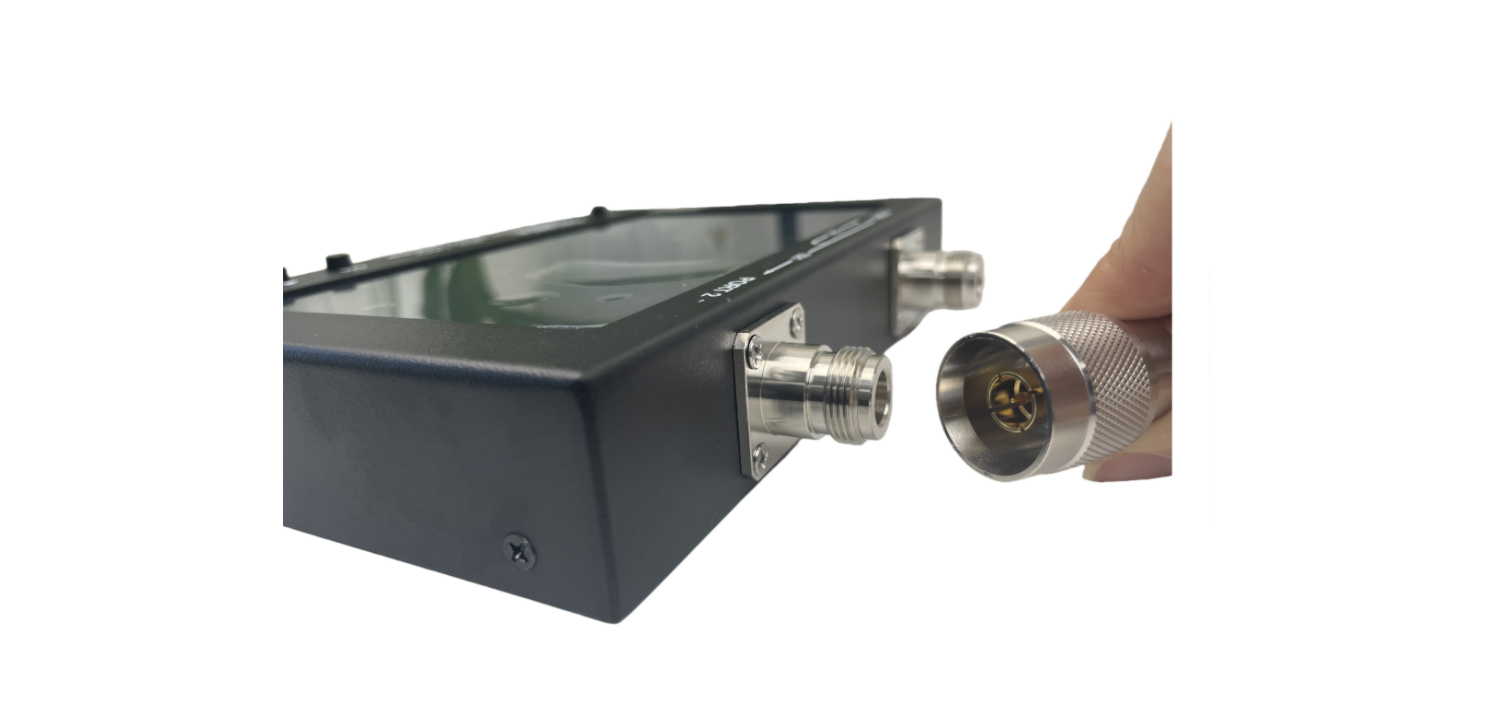

Simply push to attach or pull to release—no wrenches or twisting needed.
Perfect for test environments or setups requiring constant connect-disconnect cycles.
Built with high-grade brass and nickel plating for durability and low signal loss.
Ensures stable impedance and consistent VSWR for reliable RF performance.
The Type N Male-Female Quick Disconnect Push-On Adapter offers a fast, durable, and reliable solution for efficient RF connections, making it the perfect choice for high-performance, frequent-connect environments.
Specification
| Connector Type | N Female to N Male (Push-On) |
| Connection Method | Quick Push-On, no threading required |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz (typical) |
| Insertion Loss | < 0.2 dB @ 3 GHz |
| VSWR (Return Loss) | < 1.2:1 (typical) |
Part List
1 * N‑Type Quick Plug / Push‑On Adapter
