Description
The SenseCAP Solar Node P1‑Pro for Meshtastic is an outdoor solar-powered communication node designed for mesh networks. It integrates a low-power XIAO nRF52840 Plus controller, Wio-SX1262 LoRa module, and XIAO L76K GPS module, along with a built-in 18650 battery, enabling long-range communication and precise positioning. It’s ideal for deployment in remote or off-grid areas, serving as a reliable repeater to extend mesh network coverage.

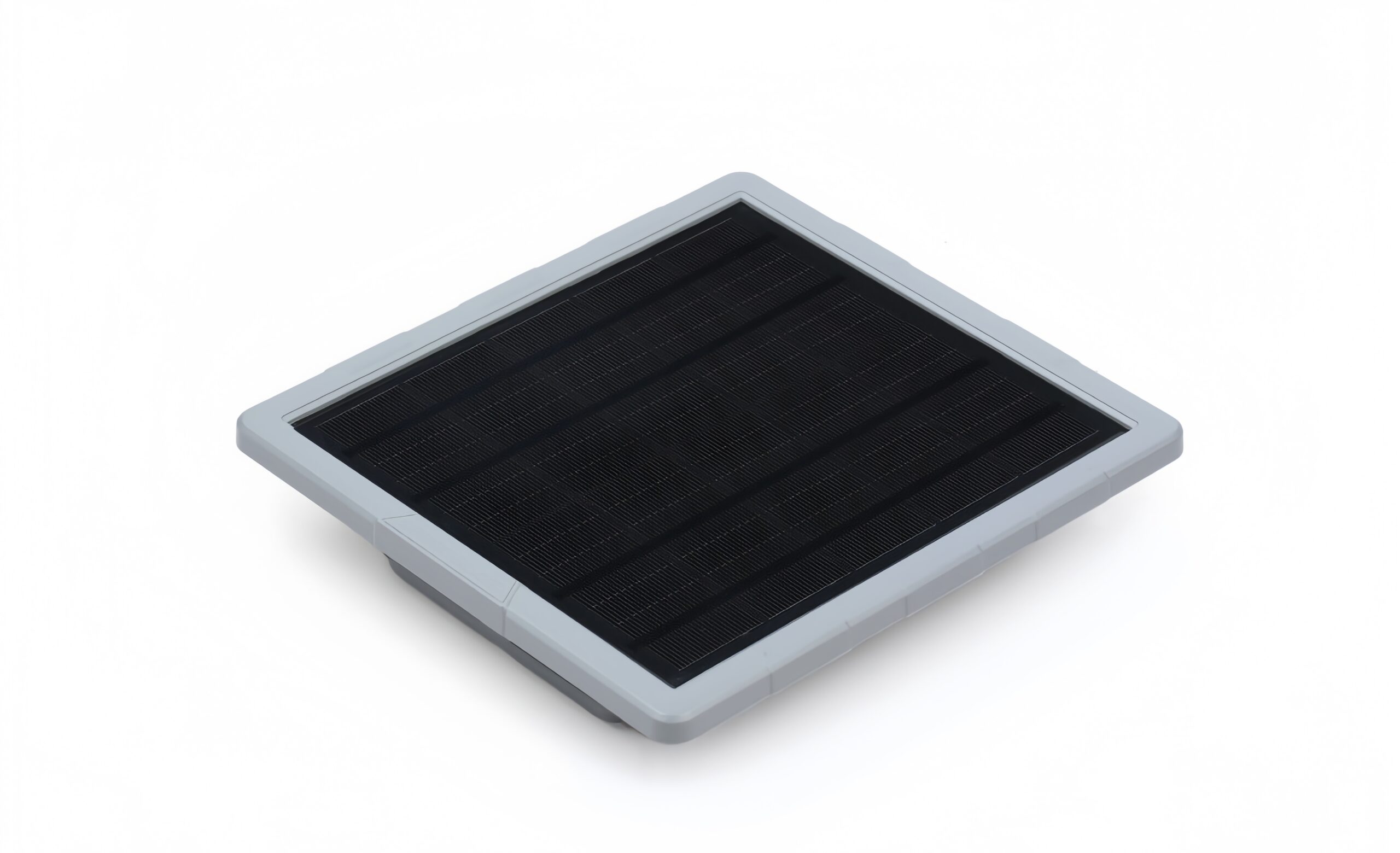

Equipped with a 5W solar panel and four 18650 batteries, enabling long-term maintenance-free operation.

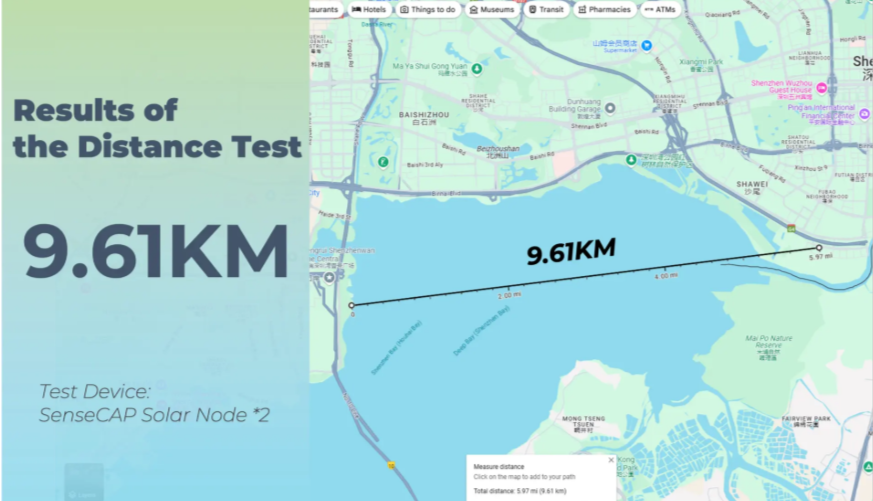

Uses the Semtech SX1262 chip, achieving up to 8–9 km in open environments.
Features the XIAO L76K module with GPS / GLONASS / Galileo support for high-precision satellite positioning.
Enters deep sleep mode when idle, consuming only microamp-level current, ensuring stable operation even without sunlight.

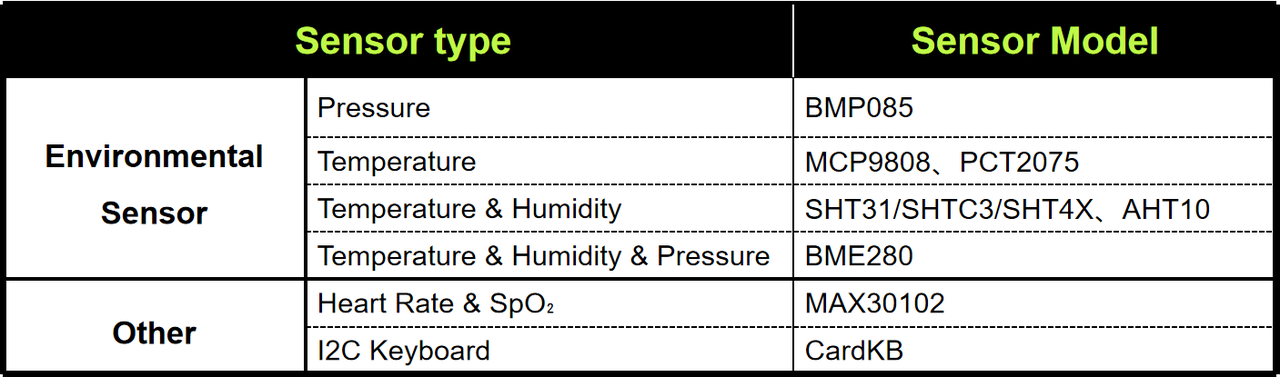

Compatible with Grove interface, allowing plug-and-play sensors such as temperature, humidity, and light for environmental monitoring.
For higher gain, an optional 860–930MHz 3dBi fiberglass antenna is recommended.

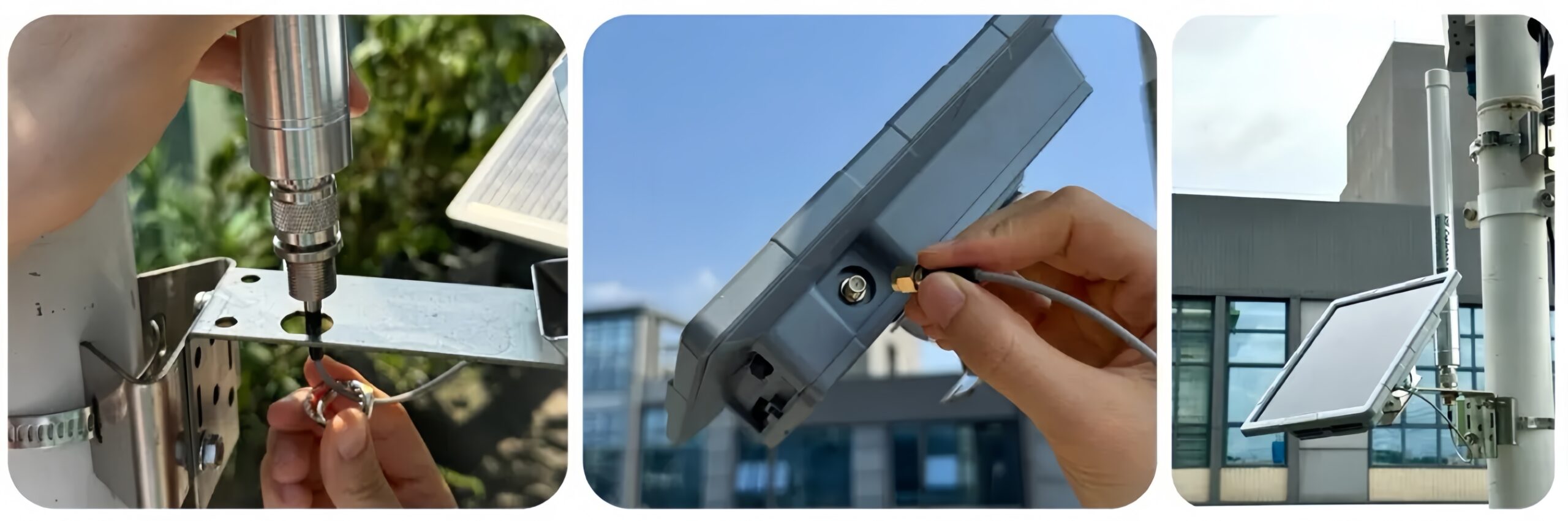

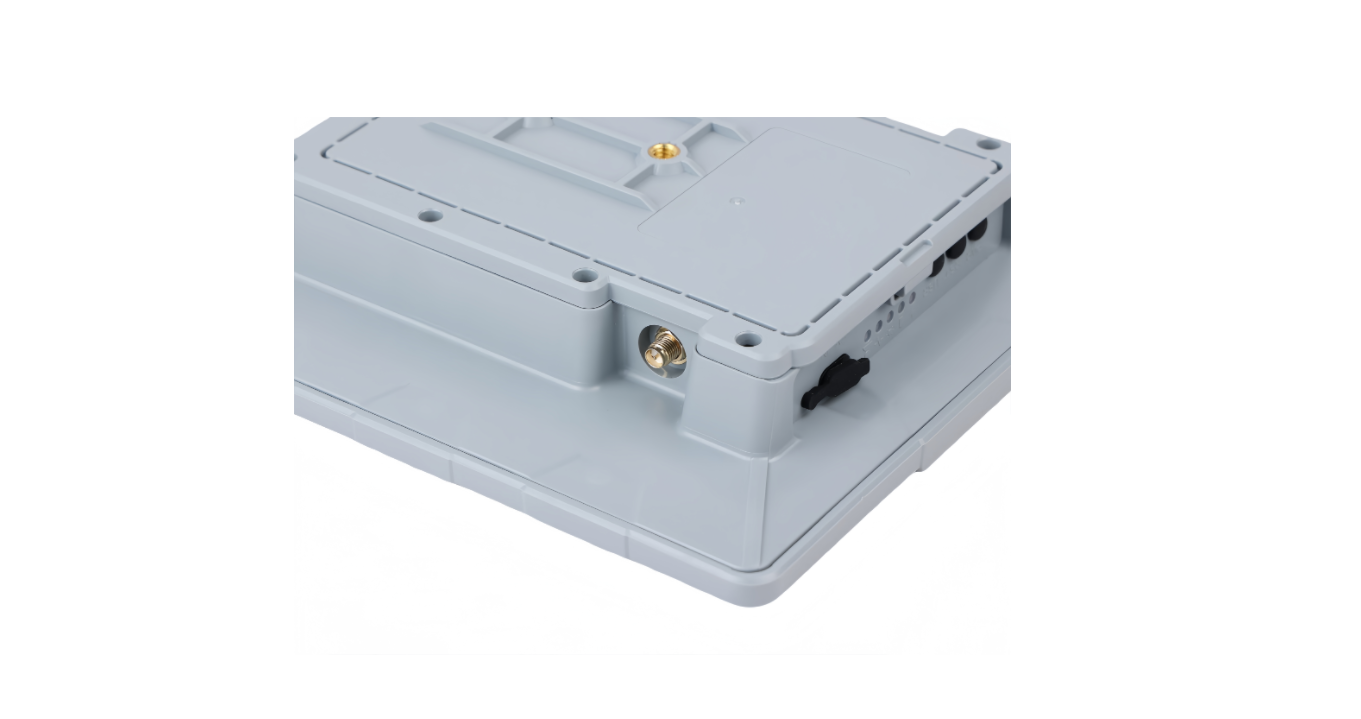

Comes with a standard RF cable for plug-and-play; install in three simple steps: Align → Insert → Lock.
Comes with Meshtastic protocol pre-installed, ready to deploy a mesh network right out of the box.
The SenseCAP Solar Node P1‑Pro for Meshtastic is a highly reliable, low-maintenance solar-powered mesh node, perfect for off-grid deployments requiring self-organized network communication and precise positioning.
Specification
| Main controller | XIAO nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash) |
| LoRa Module | Wio-SX1262 Module (Semtch SX1262, TXOP=22dBm@862-930MHz) |
| GPS Module | XIAO L76K (Support GPS/GLONASS/Galileo) |
| Antenna | LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZGain: 2dbi |
| GNSS:GPS L1 C/A: 1575.42MHzGLONASS L1: 1602MHzBeiDou B1: 1561.098MHz | |
| Bluetooth 5.0 | |
| Solar Panel | 5W |
| Interface | Grove *1: IIC/GPIO/UART |
| USB-C debugging | |

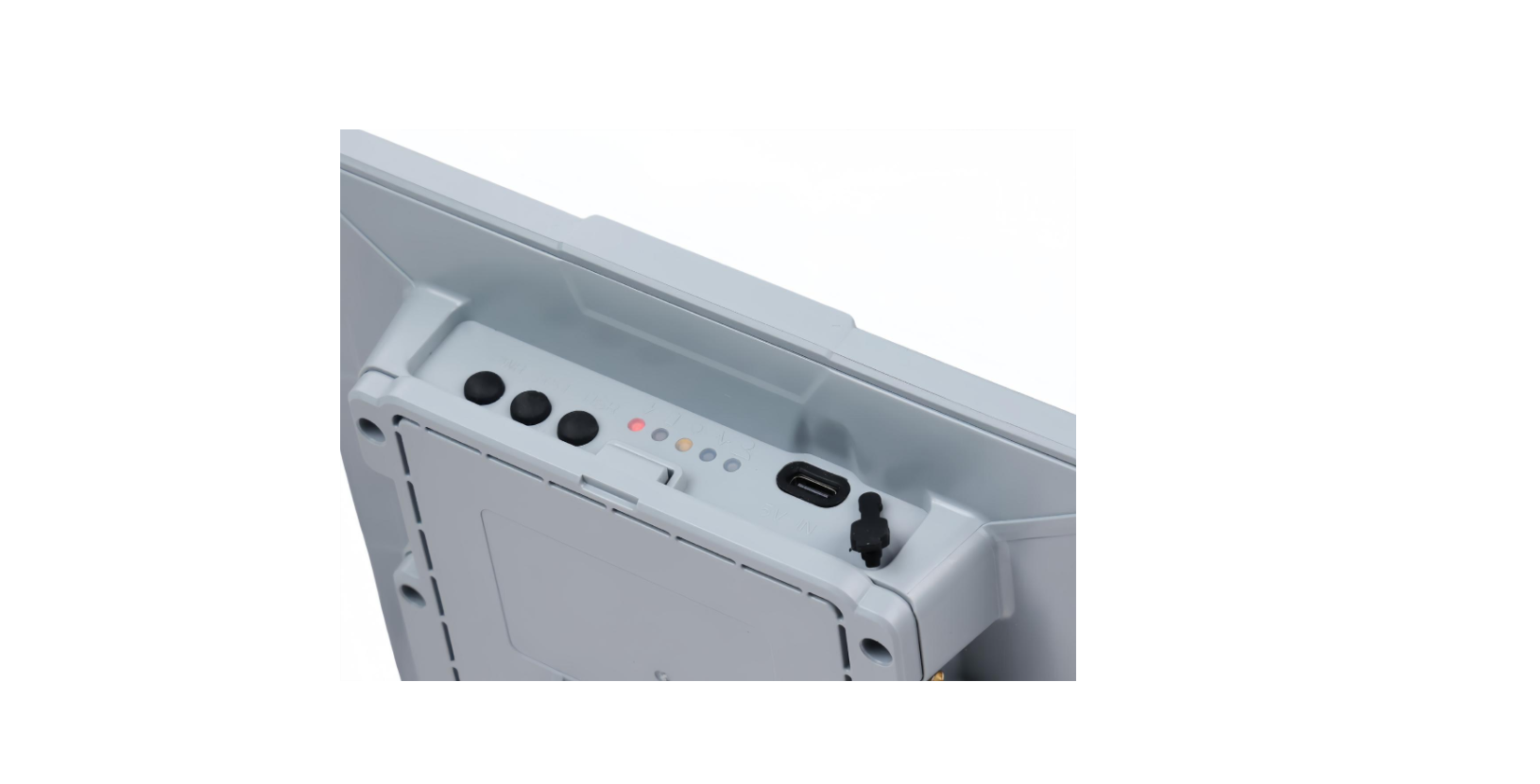

| Button | Power on/off |
| Reset | |
| User-defined | |
| LED | Charging status indicator lights *2 |
| Solar panel status indicator light *1 | |
| Mesh heartbeat light *1 | |
| User-defined *1 | |
| Power supply | Type-C: 5V 1A |
| Solar power supply: 5V 1A | |

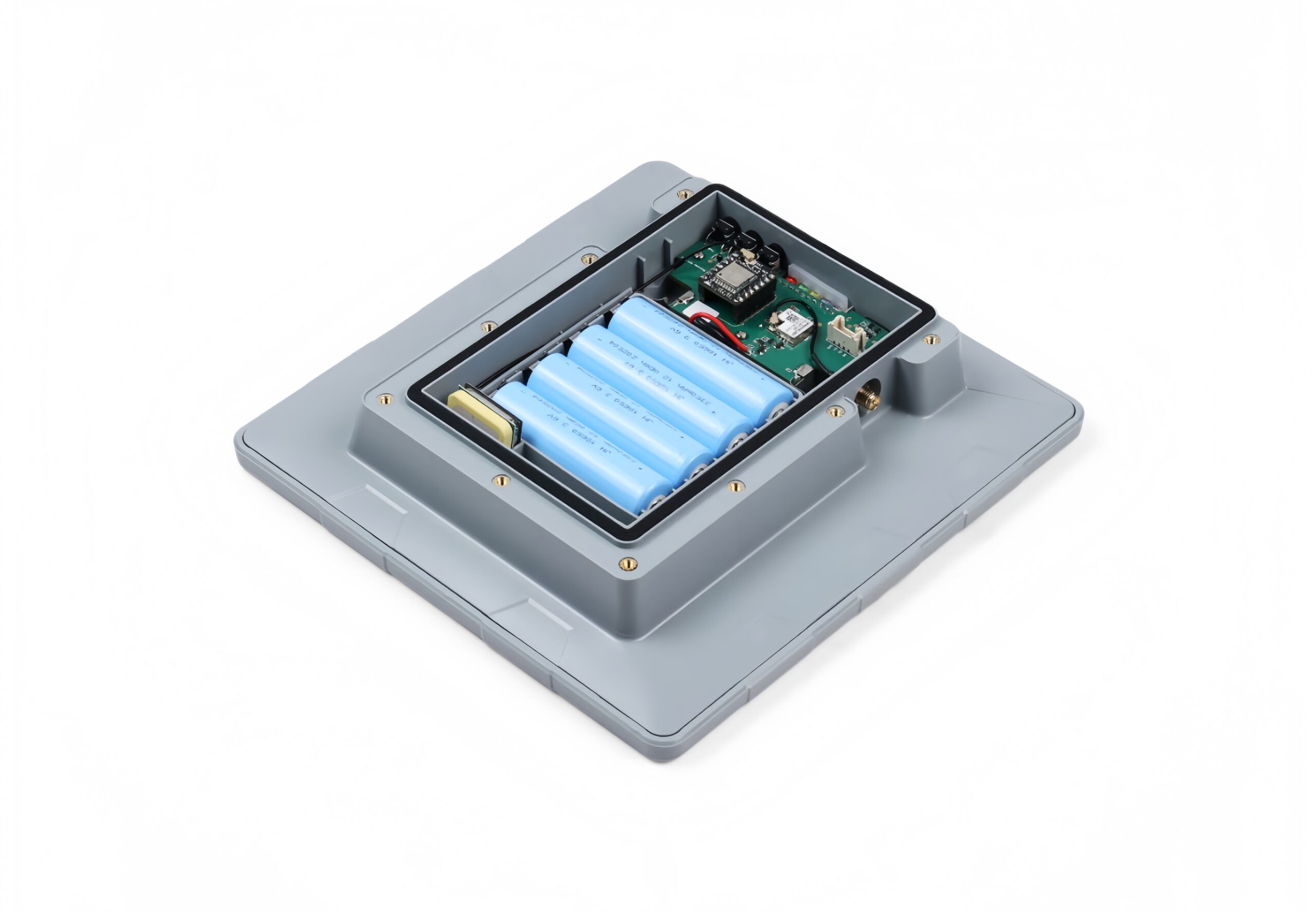

| Battery | 4 x 18650 lithium batteries (3350mAh each)● Supporting Type-C and solar charging.● Discharge environment：-40 ~ 60°C● Charging environment: 0 ~ 50°C |
| Certification | FCC、CE |

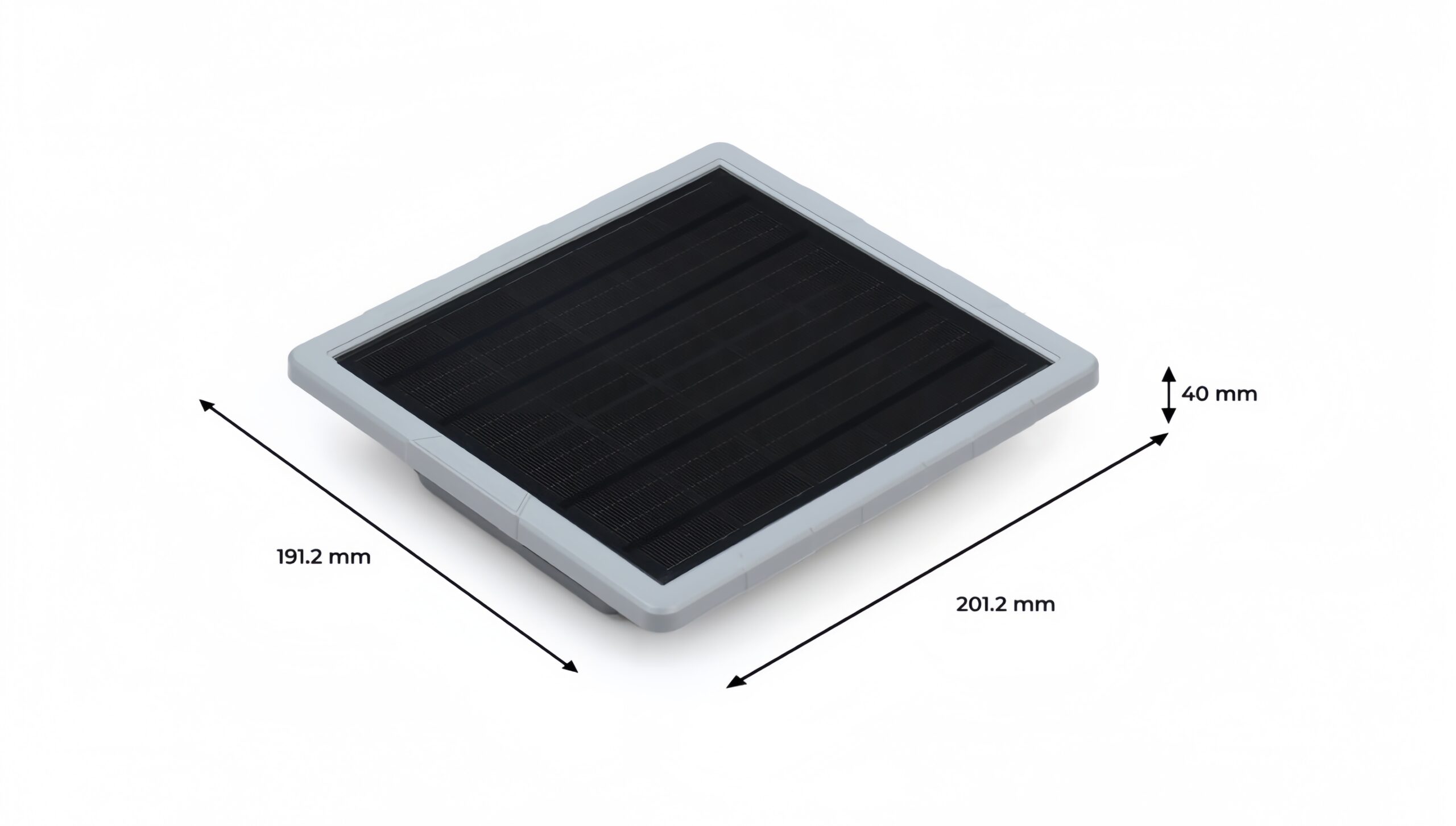

| Dimension | 191.2 x 201.2 x 42.1 mm |

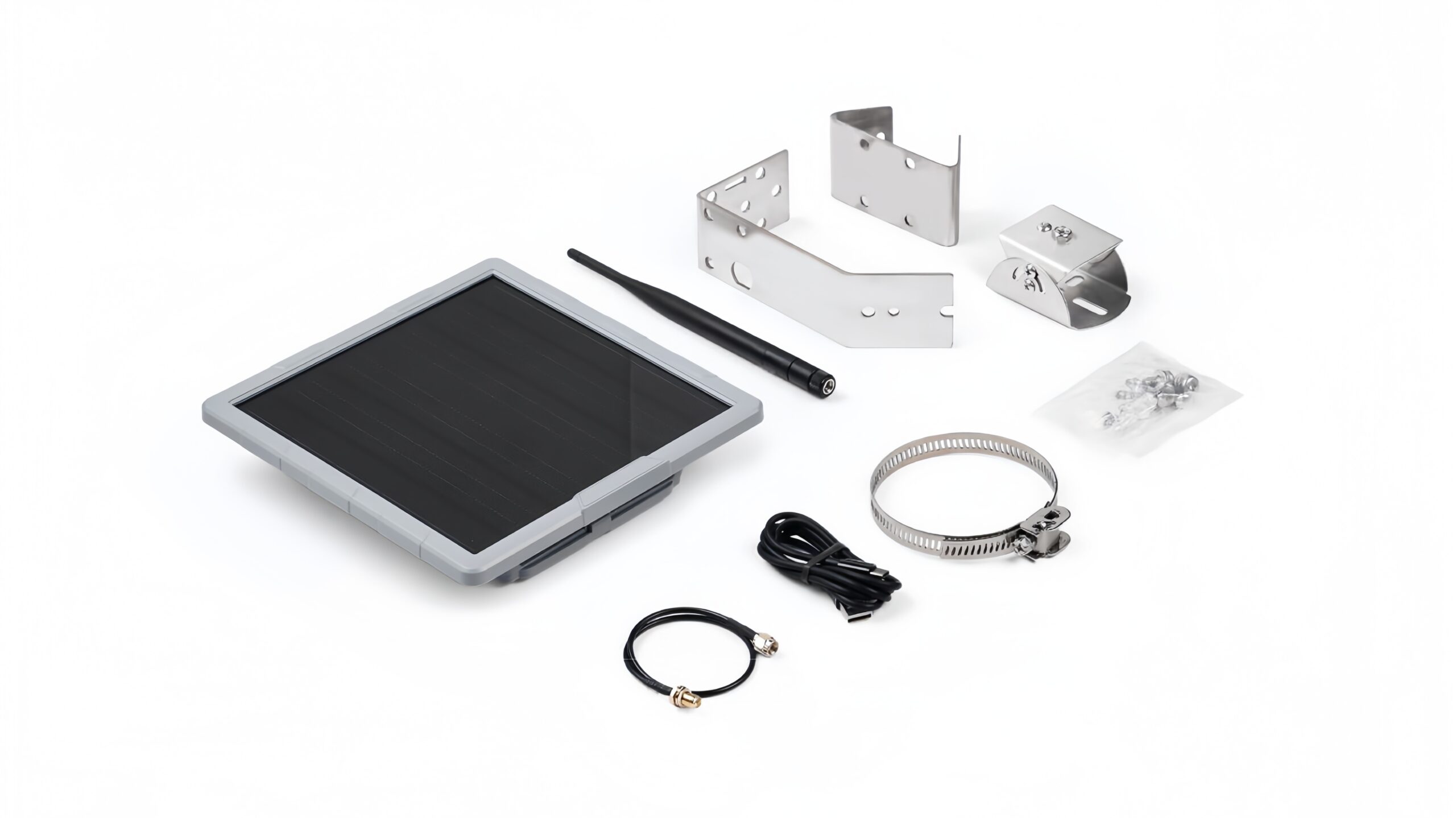

Part List
1 x SenseCAP Solar Node P1-Pro (with GPS & battery)
1 x 2dBi 868 – 915MHz Rubber Rod Antenna
1 x Mounting Brackets
● Universal Joint
● Connector
● Hoop Bracket
● Hoop Ring
1 x RF Cable: RP-SMA Male to RF-SMA Female-300mm
1 x Black Type-C Cable
1 x User Manual
