Description

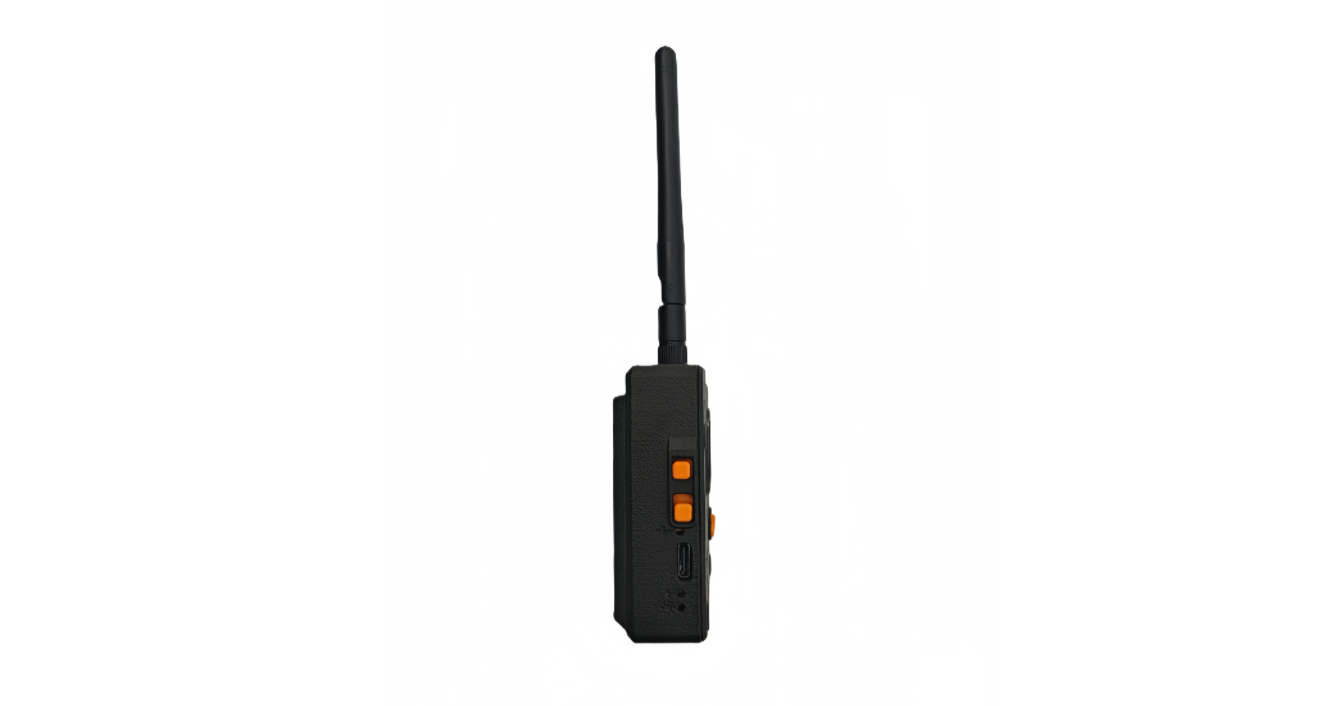

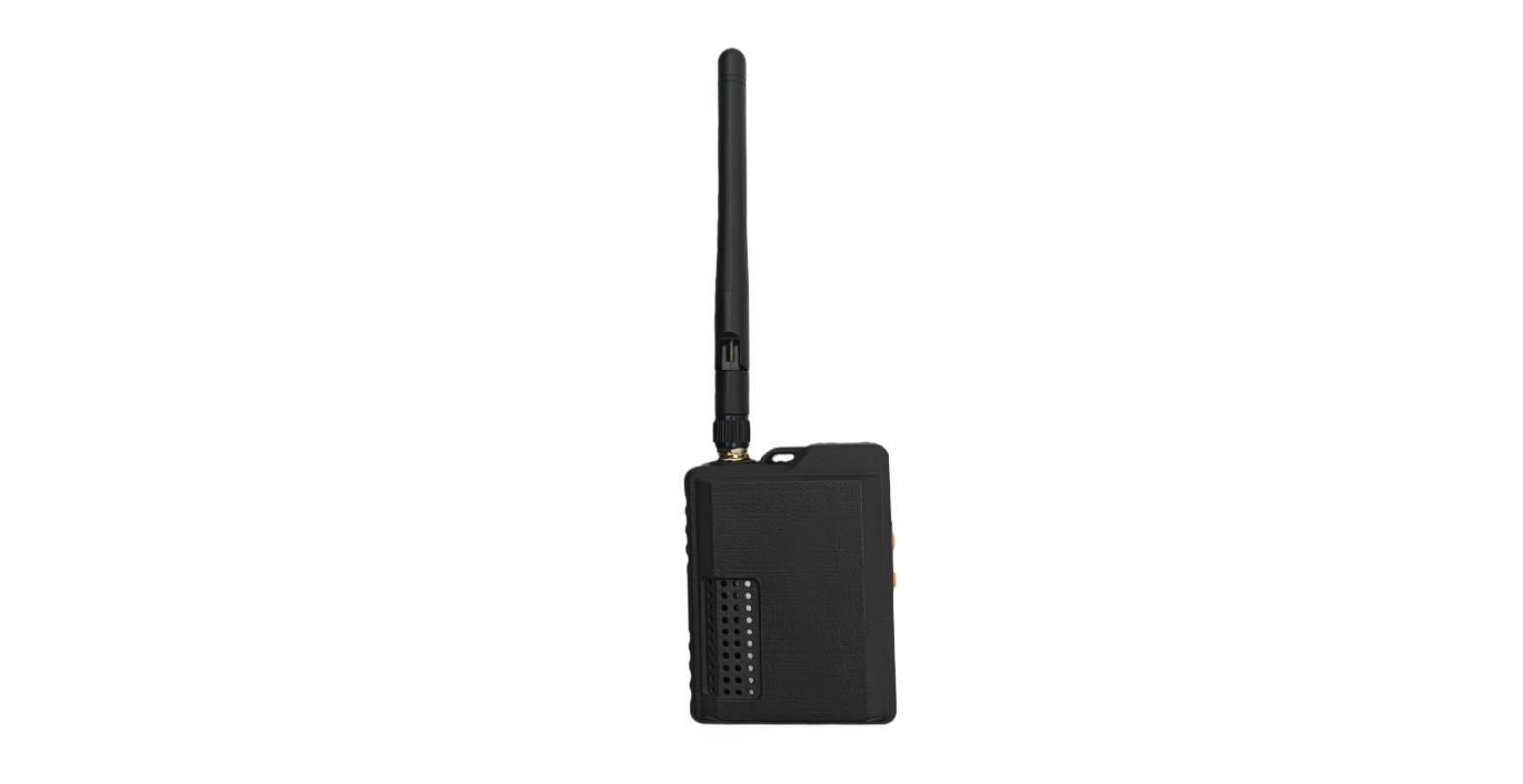

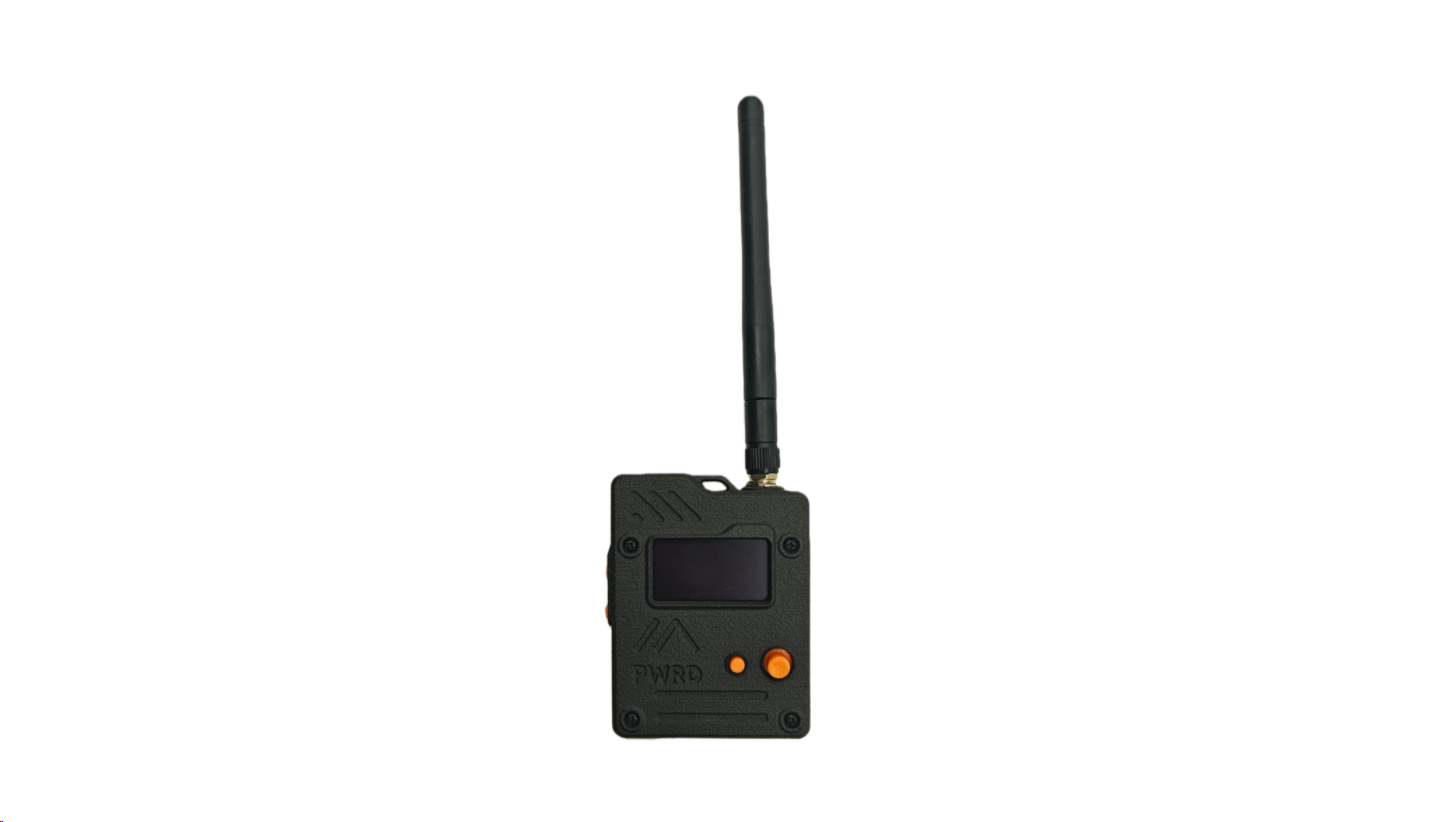

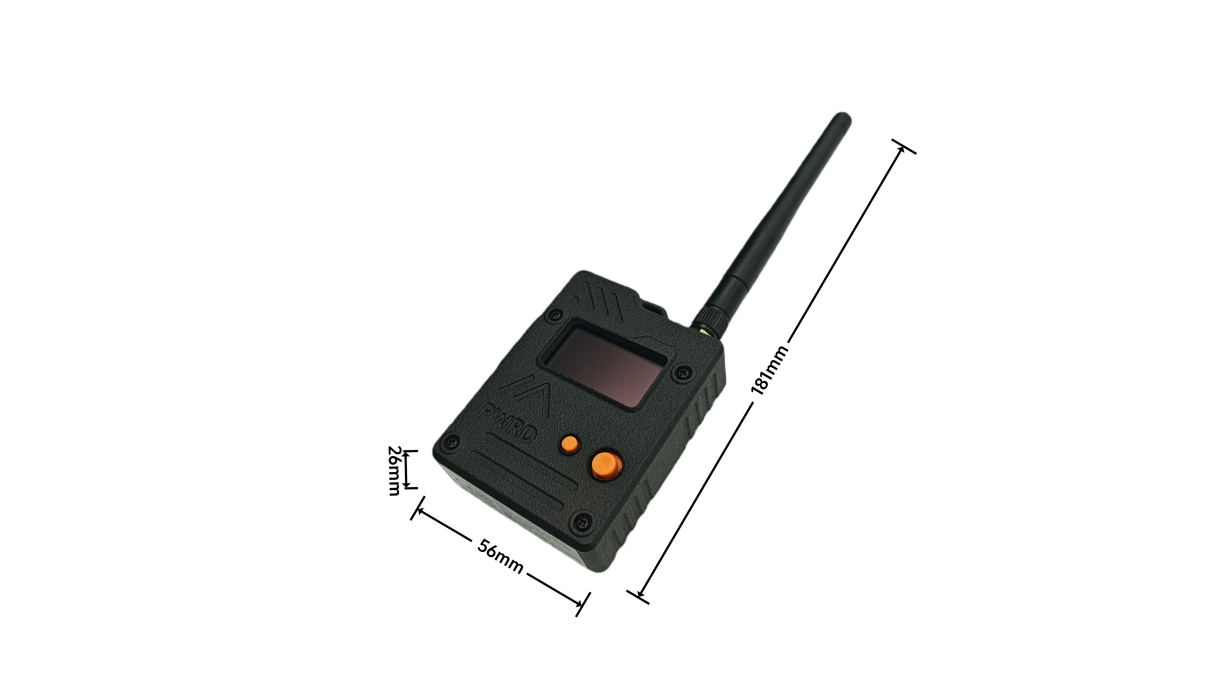

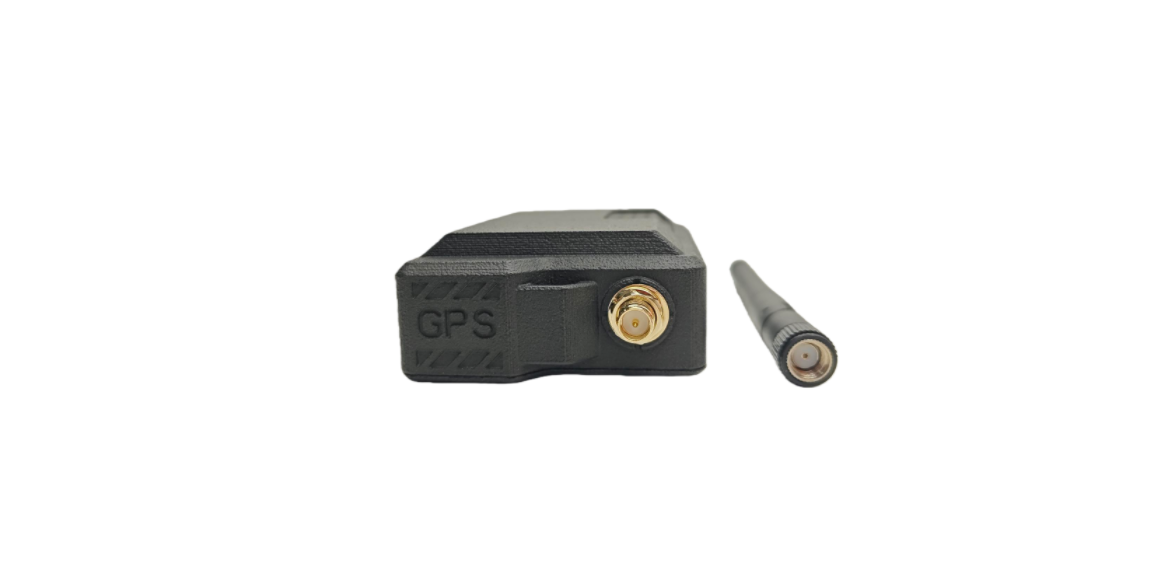

The Wio Tracker L1 Pro is a versatile tracking and wireless communication device designed for outdoor, mobile, and sensor-based applications. It integrates LoRa, expandable interfaces, and multiple power options, ready to use out of the box, providing developers, hobbyists, and outdoor enthusiasts with a stable, flexible, and reliable IoT connectivity experience.
Rugged and lightweight 3D-printed enclosure allows immediate use with no assembly required, built for any outdoor environment.
Comes pre-installed with Meshtastic firmware for seamless setup straight out of the box.
Equipped with a 2000 mAh battery, Type-C fast charging, and solar input support for flexible deployment anywhere.
Fully compatible with the Grove Ecosystem, featuring PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
The Wio Tracker L1 Pro combines ready-to-use design, versatile power options, robust expandability, and outdoor-grade durability for reliable mobile and remote connectivity.
Specification
| Processor | Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
| On-chip Memory | 1 MB flash and 256 kB RAM |
| Wireless | LoRa: Supports 862-930MHz |
| Bluetooth 5.0 | |
| GPS | L76K(GPS, BeiDou, GLONASS, QZSS) |
| OLED Display | Size: 1.3 inch |
| Resolution: 128*64 pixels | |
| Active Area(mm): L34.5*W23.0*H1.47 | |
| Power | Type-C: 5v—1A |
| Solar energy interface(2.0mm 2p):5V—1A | |
| Battery interface(1.0mm 2p JST): 3.7v—1A |
Part List
1 * Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery
1 * LoRa Antenna
