Innovative Design by Chelegance. The MC-599 is a testament to Chelegance’s commitment to quality and innovation. This portable shortwave dipole V antenna is expertly crafted to operate across a wide frequency range of 7-50MHz, with an impressive power capacity of 200 watts PEP.
2 minutes Installation. The MC-599 is a very simple structure with only 5 parts, making it very easy and quick to assemble.
14-50MHz Marking System for Effortless Tuning. Continuing the legacy of our acclaimed MC-750 antenna, the MC-599 incorporates a similar, user-friendly marking system on both telescopic whips. This innovative feature simplifies the tuning process significantly. Just align the markings to the corresponding position for your desired band, and you’re set for a smooth and efficient operation. This hassle-free adjustment ensures that you can focus more on your communication experience and less on the setup.
7MHz High-Quality Wire Elements for Optimal Performance. The MC-599 is specially equipped with premium wire elements for the 7MHz band, ensuring top-notch performance. These wire elements are designed to be easily configured into an inverted V antenna, providing exceptional reception and transmission capabilities. The setup is straightforward – simply extend the wire elements and secure them at the top using the telescope whips. This design not only optimizes the antenna’s functionality at 7MHz but also ensures a stable and reliable operation, making it an ideal choice for amateur radio enthusiasts who demand quality and efficiency.
Broadband Operation for Versatile Use: The MC-599 is ingeniously designed to offer a wide operational range within each working frequency band, a feature that sets it apart in the realm of amateur radio antennas. This design means you can enjoy extensive coverage without the hassle of constantly adjusting the antenna length for different frequencies. For instance, if you set the antenna to operate at 14MHz, the MC-599 will efficiently cover the entire 20-meter amateur band. This capability not only enhances the ease of use but also ensures consistent performance across a broad spectrum of frequencies, making the MC-599 a highly versatile and reliable choice for radio enthusiasts.
Exceptional Portability for On-the-Go Operations: The MC-599 redefines portability in amateur radio equipment. With its compact dimensions of just 57.5 x 11 x 7.5 cm and a lightweight design at only 1.43 kg, it’s the epitome of convenience. This antenna is perfect for radio enthusiasts who are always on the move. Whether you’re heading out for a Parks on the Air (POTA) adventure or a Summits on the Air (SOTA) expedition, the MC-599 is your ideal travel companion. It’s easy to carry, quick to set up, and ensures that you’re always ready to connect, no matter where your journey takes you.
*Please note:
Note: This antenna system DOES NOT include tripod/antenna mast shown.
It is very suggested to apply the GUY LINE ROPES to prevent the antenna from tipping over and damaging the whips, or more dangerously, causing a safety accident.
Tighten and secure as shown
NOTE: Many of our customers have experienced various types of damage to the whip due to not following the correct usage steps. Therefore, proper storage and use of whips can effectively prolong the life of whips. Please click here.
SPECIFICATION
BAG SIZE
57.5*11*7.5cm
FREQUENCY COVERAGE
14-50MHz
(7mhz can be DIY in reverse V mode)
PRODUCT WEIGHT
1.43kg
SWR
≤1.5
INPUT IMPENDANCE
50Ω
WITHSTAND POWER
200watt (CW and FT8 halved)
WHIP LENGTH
5.6m

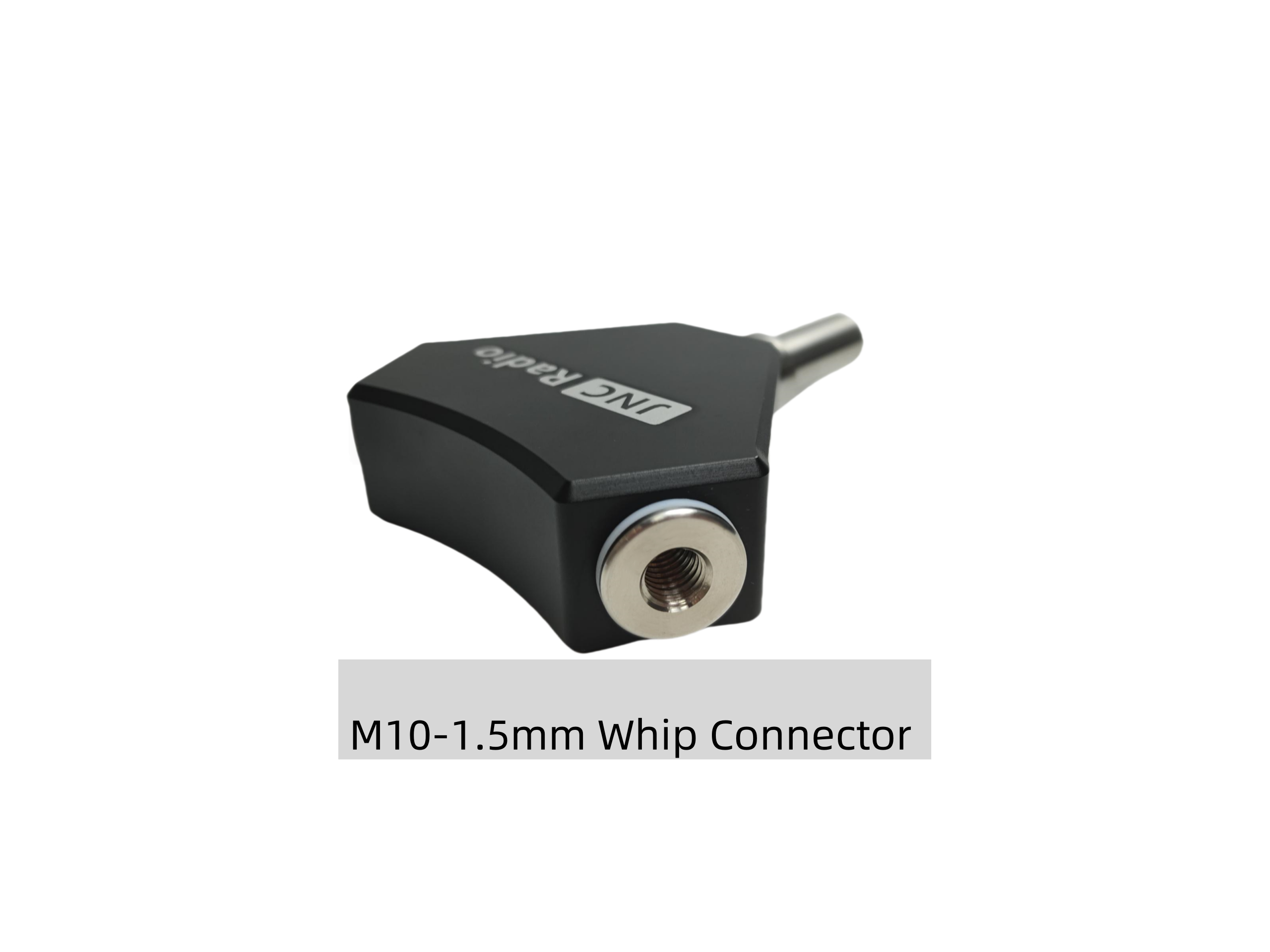

WHIP CONNECTOR
M10-1.5mm
FEEDER CONNECTOR
UHF Female
BALUN BASE CONNECTOR
M14-2.0mm
BALUN MATERIAL
aluminum
PARTLIST
1 x Bag

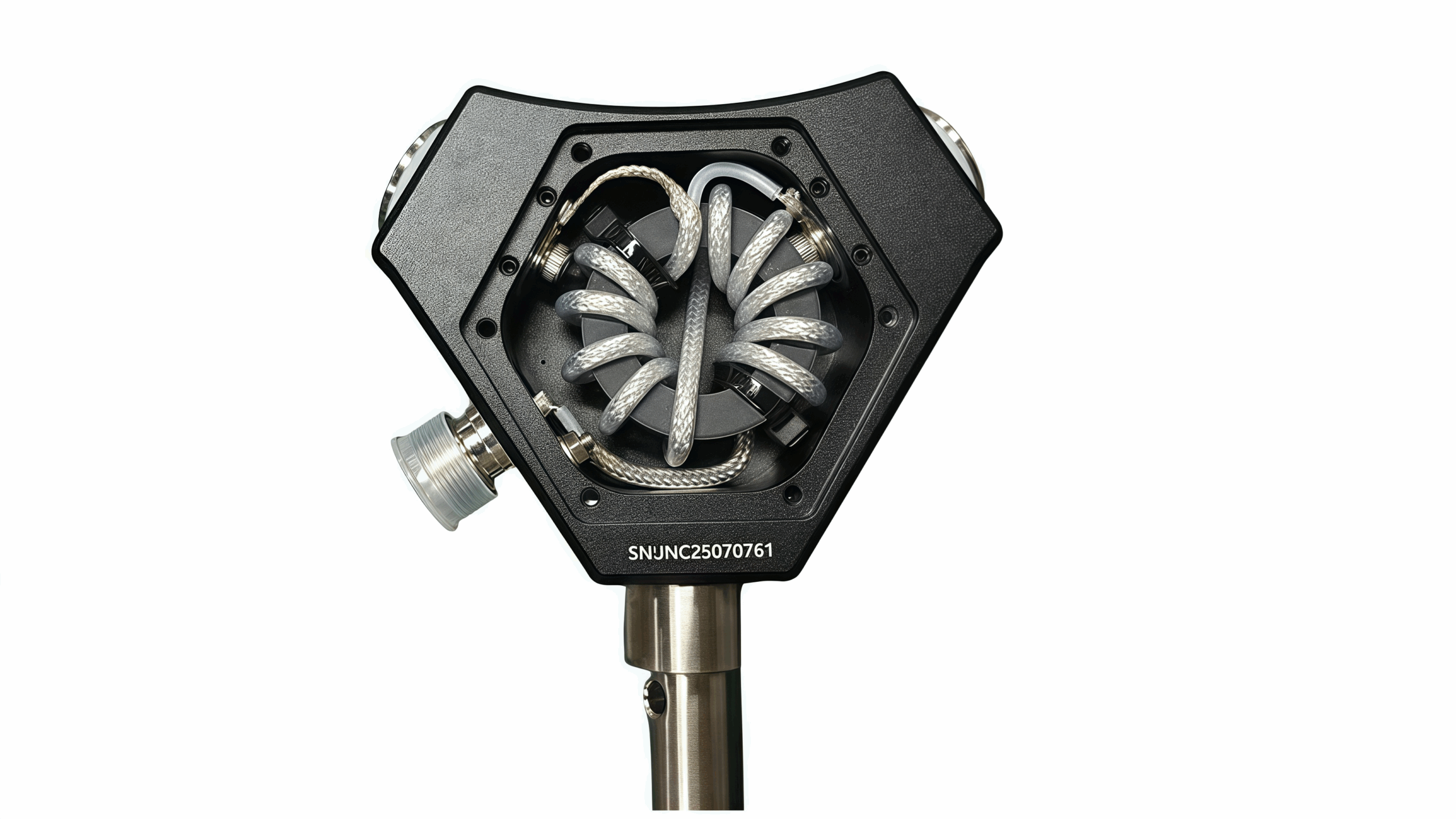

1 x Antenna Base (BALUN)
2 x 5.6m telescope whips with frequency markings
2 x 7MHz wire elements
If you still have questions, click here to view: USER MANUAL
How to adjust the whip of the MC-599 antenna for operation in each band？
First, always start pulling from the thinnest end of the whip. Here are the suggested whip lengths for each band:
50MHz: pull out 2 sections+10cm 28MHz: pull out 5 sections+15cm
24MHz: pull out 6 sections+15cm 21MHz: pull out 7 sections+25cm
18MHz: pull out 9 sections+10cm 14MHz: pull out 12 sections+7cm
When installing antennas, can 40-meter inverted V antenna be installed together with telescopic whip tuned to 20 meters?
Yes, you can do that. However, you need to adjust the length of the whip and not fully rely on the marking system
What is the quality of the MC-599 whip?
Regarding the product quality, each section of every whip is carefully printed with measurements and undergoes stretching checks. Very low probability of quality issues. Therefore, the possibility of a quality issue is very low. Additionally, we conduct a final inspection before shipment to ensure everything is in proper condition.
How to use MC-599 whip correctly and precautions？
Here are the correct usage instructions and precautions for the whip:
The whips should first be attached to the antenna before extending them. After installing the antenna, try extending the whips again.
When extending the whip, start extending the thinnest section first, and gradually move on to the thicker sections, finishing with the thickest section.
When collapsing the whip, start with the thickest section, then move to the thinner sections, and finally collapse the thinnest section.
Note: The whip is the most brittle part of the entire antenna system and needs to be properly protected. （When installing the guy rope for the 599 antenna, be careful not to let the 599 fall over, as this could damage the whip.）
